01

A525

Fixed levers

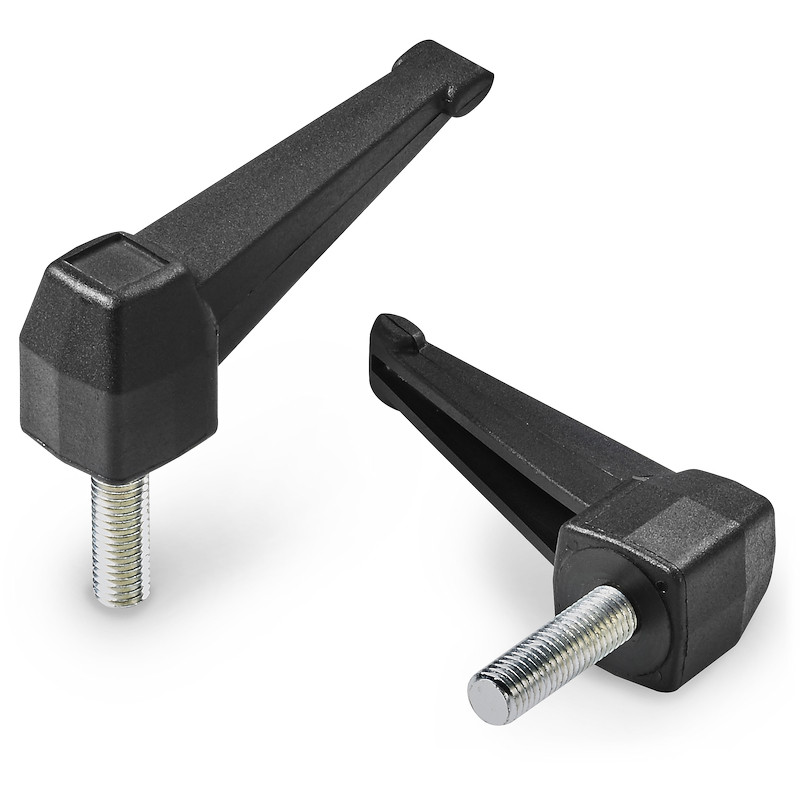

FIXED LEVER WITH THREADED STUD

Ver. 01V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities inserts can be supplied in different materials.

  • Material sheets

Alternative products

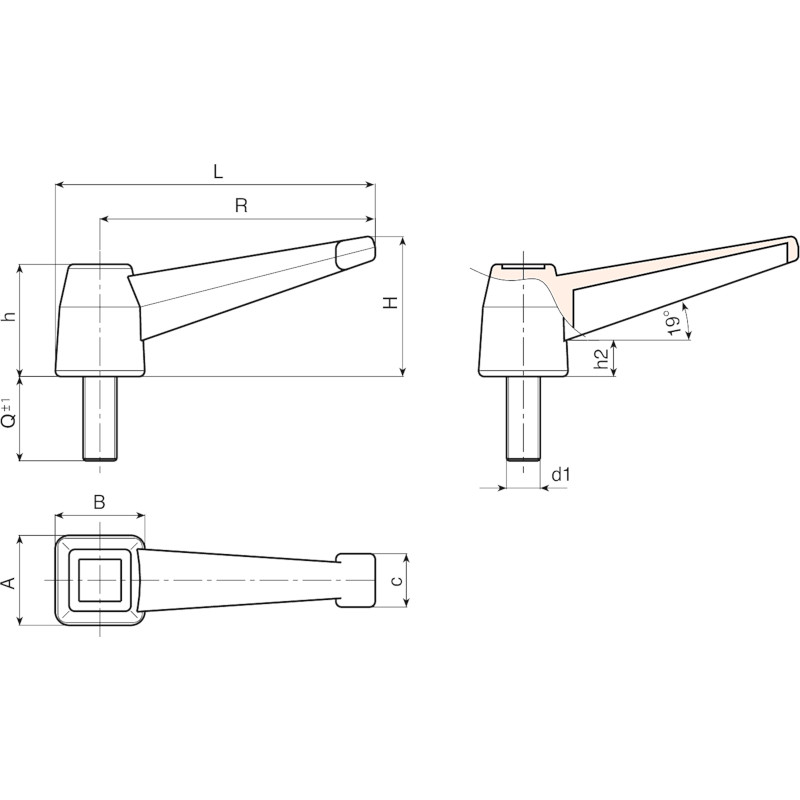

Codice Art. L R H A B c h h2 LM d16g Q
A52598.0002 A52598.TM10X4001 112 96 51 32 32 19 40 12 100 M10 40 90
A52598.0005 A52598.TM12X4001 112 96 51 32 32 19 40 12 100 M12 40 104
A52598.0018 A52598.TM16X4001 112 96 51 32 32 19 40 12 100 M16 40 164

Customised stud length available for a minimum of 150 pieces.
LM = Maximum mouldable length.
