01

A528

Fixed levers

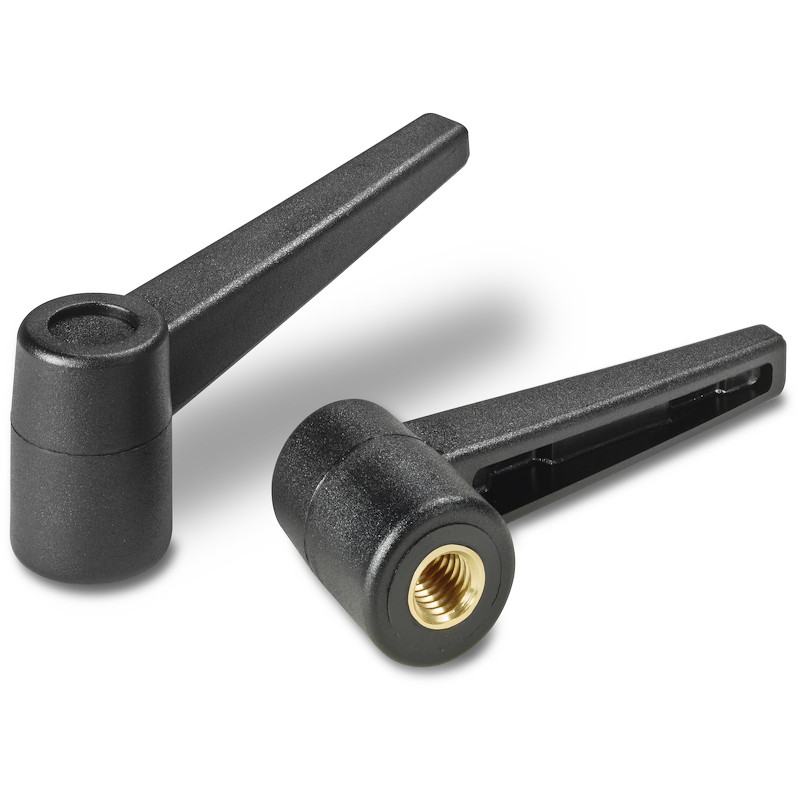

FIXED LEVER WITH THREADED INSERT

Ver. 01V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Brass insert with female threaded hole (thread tolerance 6H).

    Special requests:
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

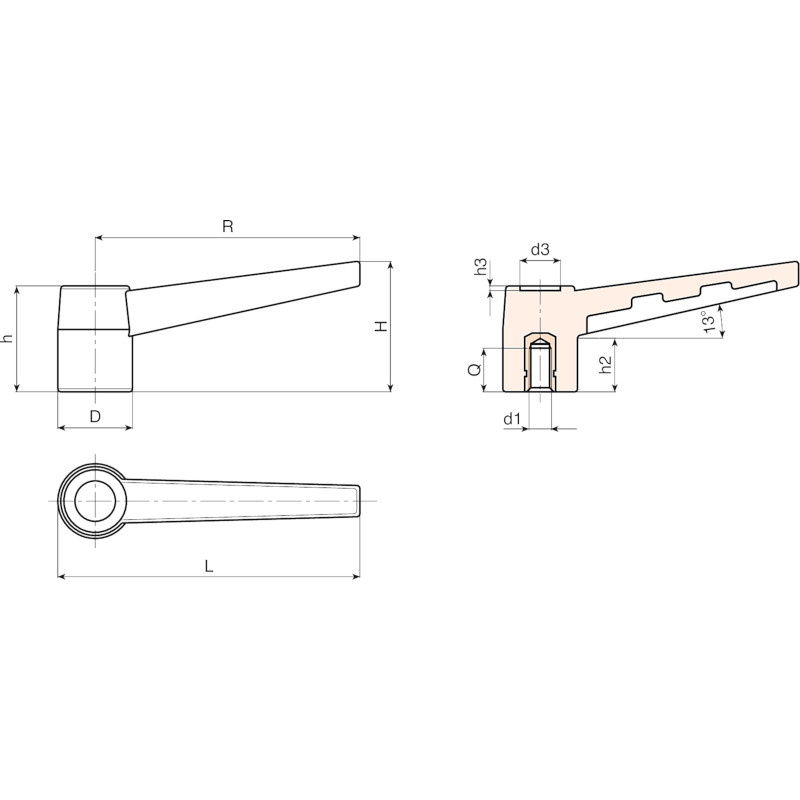

Codice Art. L R H D h h2 h3 d3 d16H Q
A52843.0001 A52843.TM0501 50 43 21.5 15 19 9 1 7 M5 10 8
A52843.0002 A52843.TM0601 50 43 21.5 15 19 9 1 7 M6 10 8
A52868.0001 A52868.TM0601 78 68 36 21 28.5 11 2 10 M6 10 24
A52868.0002 A52868.TM0801 78 68 36 21 28.5 11 2 10 M8 15 22
A52883.0001 A52883.TM0601 93 83 40 24 34 18 2 13 M6 10 30
A52883.0002 A52883.TM0801 93 83 40 24 34 18 2 13 M8 15 32
A52883.0003 A52883.TM1001 93 83 40 24 34 18 2 13 M10 14 32
