01

A524

Fixed levers

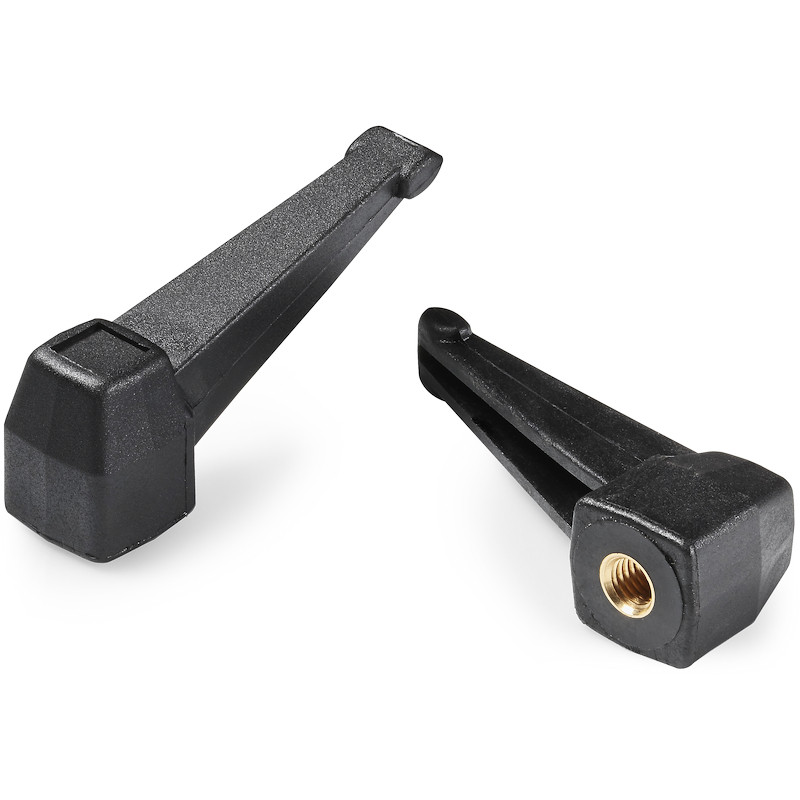

FIXED LEVER WITH THREADED INSERT

Ver. 01V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Brass insert with female threaded hole (thread tolerance 6H).
    (*) Galvanised steel insert with female threaded hole (thread tolerance 6H).

    Special requests:
    Upon request and for special quantities inserts can be supplied in different materials.

  • Material sheets

Alternative products

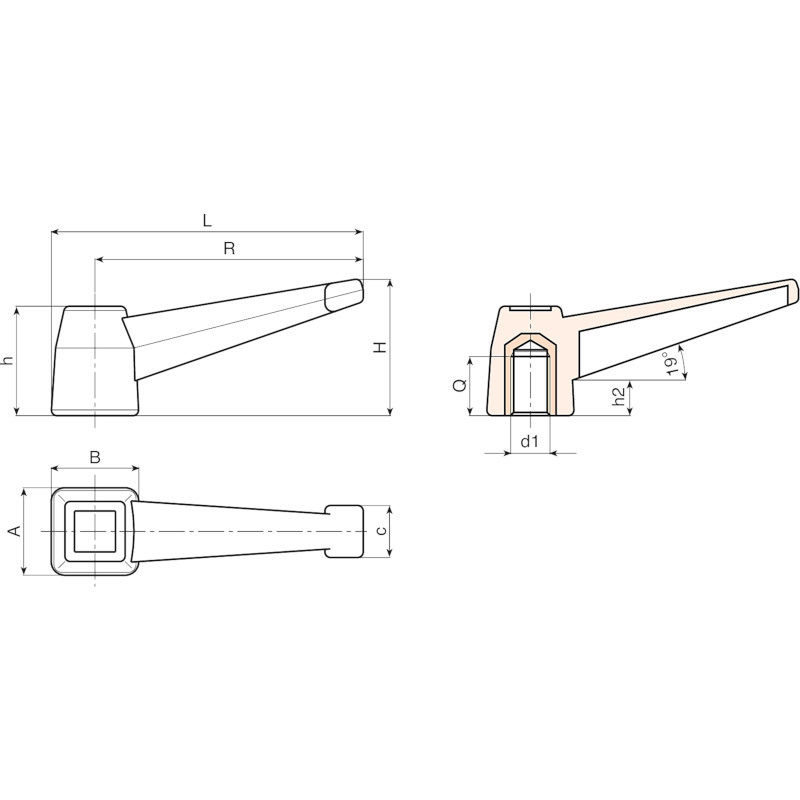

Codice Art. L R H A B c h h2 d16H Q
A52498.0001 A52498.TM1201 112 96 51 32 32 19 40 12 M12 19 64
A52498.0002 A52498.TM1401 112 96 51 32 32 19 40 12 M14 19 68
A52498.0003 A52498.TM1601 112 96 51 32 32 19 40 12 (*) M16 16 80
