P900ESD

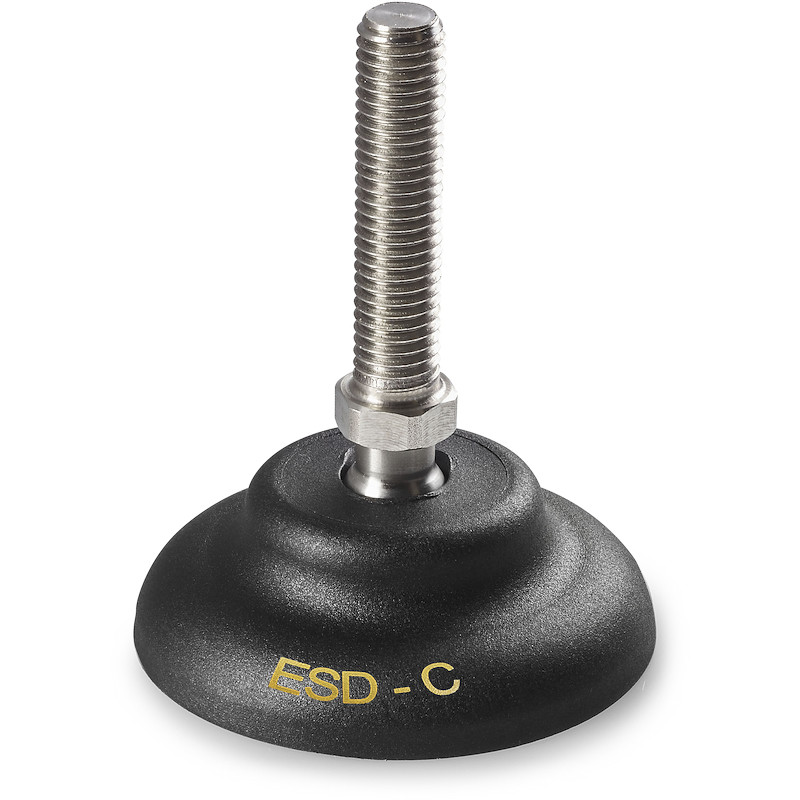

Plastic feet-ball joint stud

SMALL MOUNTING FOOT - IN ESD MATERIAL - WITH STEEL ARTICULATED STEM TYPE A - BALL 12.4

Ver. 16V01-0124

Reinforced polyamide, with conductive fillers (ESD-C).
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide, with conductive fillers (ESD-C).
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    P900ESD:
    Galvanised steel threaded and articulated stem (ball 12.4) with hexagonal base (thread tolerance 6g).
    P900CINESD:
    Stainless steel threaded and articulated stem (ball 12.4) with hexagonal base (Aisi 303) (thread tolerance 6g).

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.

  • Description

    Notes: This item is made from ESD-C (Electro Static Discharge – Conductive) material with fillers in compliance with standards EN 100015/1 and IEC 61340-5-1. The product is conductive and prevents the formation of electrostatic discharges by facilitating its grounding. A yellow pad-printed symbol (ESD-C) enables correct identification of the product. Product suitable for the production of electronic material and for use in explosive atmospheres.

Alternative products

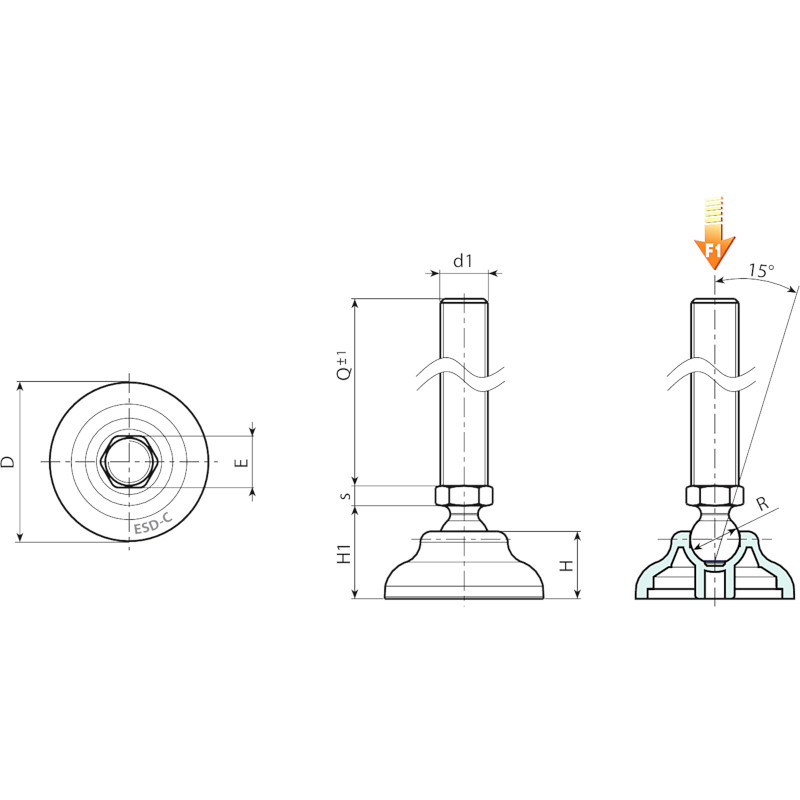

Version P900ESD: Mounting foot with stem type A (with hexagonal base) and ball 12.4
Codice Art. D H H1 E s R d16g Q F1 (kN)
- P90040.TM08X4501ESD 40 17 23 13 5 12.4 M8 45 40 10
- P90040.TM08X7001ESD 40 17 23 13 5 12.4 M8 70 47 10
- P90040.TM10X4501ESD 40 17 23 13 5 12.4 M10 45 48 10
- P90040.TM10X7001ESD 40 17 23 13 5 12.4 M10 70 60 10
- P90040.TM10X10001ESD 40 17 23 13 5 12.4 M10 100 75 10
- P90040.TM12X4501ESD 40 17 23 13 5 12.4 M12 45 58 10
- P90040.TM12X7001ESD 40 17 23 13 5 12.4 M12 70 75 10
- P90040.TM12X10001ESD 40 17 23 13 5 12.4 M12 100 97 10
- P90050.TM08X4501ESD 50 18 24 13 5 12.4 M8 45 46 10
- P90050.TM08X7001ESD 50 18 24 13 5 12.4 M8 70 53 10
- P90050.TM10X4501ESD 50 18 24 13 5 12.4 M10 45 54 10
- P90050.TM10X7001ESD 50 18 24 13 5 12.4 M10 70 63 10
- P90050.TM10X10001ESD 50 18 24 13 5 12.4 M10 100 77 10
- P90050.TM12X4501ESD 50 18 24 13 5 12.4 M12 45 64 10
- P90050.TM12X7001ESD 50 18 24 13 5 12.4 M12 70 78 10
- P90050.TM12X10001ESD 50 18 24 13 5 12.4 M12 100 99 10
- P90060.TM08X4501ESD 60 20 26 13 5 12.4 M8 45 58 10
- P90060.TM08X7001ESD 60 20 26 13 5 12.4 M8 70 66 10
- P90060.TM10X4501ESD 60 20 26 13 5 12.4 M10 45 68 10
- P90060.TM10X7001ESD 60 20 26 13 5 12.4 M10 70 80 10
- P90060.TM10X10001ESD 60 20 26 13 5 12.4 M10 100 95 10
- P90060.TM12X4501ESD 60 20 26 13 5 12.4 M12 45 78 10
- P90060.TM12X7001ESD 60 20 26 13 5 12.4 M12 70 96 10
- P90060.TM12X10001ESD 60 20 26 13 5 12.4 M12 100 117 10

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

Version P900CINESD: Mounting foot with stem type A (with hexagonal base) and ball 12.4 - stainless steel
Codice Art. D H H1 E s R d16g Q F1 (kN)
- P90040.TM08X4501CINESD 40 17 23 13 5 12.4 M8 45 40 10
- P90040.TM08X7001CINESD 40 17 23 13 5 12.4 M8 70 47 10
- P90040.TM10X4501CINESD 40 17 23 13 5 12.4 M10 45 48 10
- P90040.TM10X7001CINESD 40 17 23 13 5 12.4 M10 70 60 10
- P90040.TM12X4501CINESD 40 17 23 13 5 12.4 M12 45 58 10
- P90040.TM12X7001CINESD 40 17 23 13 5 12.4 M12 70 75 10
- P90040.TM12X10001CINESD 40 17 23 13 5 12.4 M12 100 99 10
- P90050.TM08X4501CINESD 50 18 24 13 5 12.4 M8 45 46 10
- P90050.TM08X7001CINESD 50 18 24 13 5 12.4 M8 70 53 10
- P90050.TM10X4501CINESD 50 18 24 13 5 12.4 M10 45 54 10
- P90050.TM10X7001CINESD 50 18 24 13 5 12.4 M10 70 63 10
- P90050.TM12X4501CINESD 50 18 24 13 5 12.4 M12 45 64 10
- P90050.TM12X7001CINESD 50 18 24 13 5 12.4 M12 70 78 10
- P90050.TM12X10001CINESD 50 18 24 13 5 12.4 M12 100 102 10
- P90060.TM08X4501CINESD 60 20 26 13 5 12.4 M8 45 58 10
- P90060.TM08X7001CINESD 60 20 26 13 5 12.4 M8 70 66 10
- P90060.TM10X4501CINESD 60 20 26 13 5 12.4 M10 45 68 10
- P90060.TM10X7001CINESD 60 20 26 13 5 12.4 M10 70 80 10
- P90060.TM12X4501CINESD 60 20 26 13 5 12.4 M12 45 78 10
- P90060.TM12X7001CINESD 60 20 26 13 5 12.4 M12 70 96 10
- P90060.TM12X10001CINESD 60 20 26 13 5 12.4 M12 100 120 10

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
