E232

Crank handles with hexagonal bore/stud

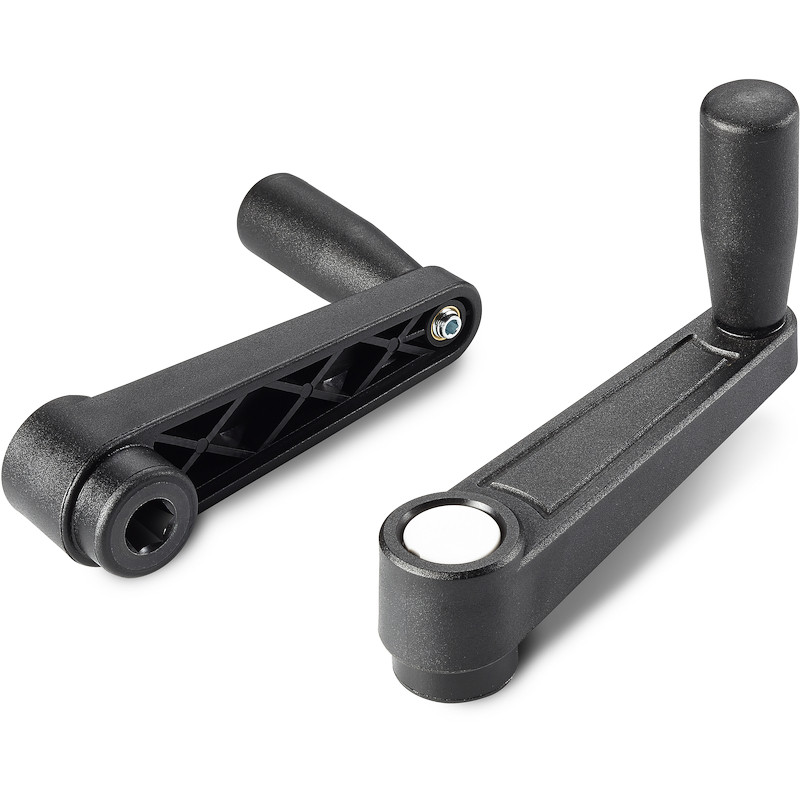

CRANK HANDLE WITH HEXAGONAL HOLE AND REVOLVING HANDLE M129

Ver. EEN.17-1221

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Material:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Central cap:
    Grey polyamide (RAL 7035 code 13).

    Alternative Cap colours:
    Orange (RAL 2004 code 02).
    Red (RAL 3000 code 16).
    Blue (RAL 5015 code 07).
    Green (RAL 6024 code 17).
    Yellow (RAL 1021 code 10).
    Black (RAL 9011 code 01).

    Inserts:
    Bush with hexagonal through hole in black oxide treated steel (hole tolerance H10).

    Lateral insert:
    Brass insert with threaded through hole.

    Lateral handle:
    Revolving handle art. M129 [pageFAM_M129.

    Special requests:
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

  • Certifications

Alternative products

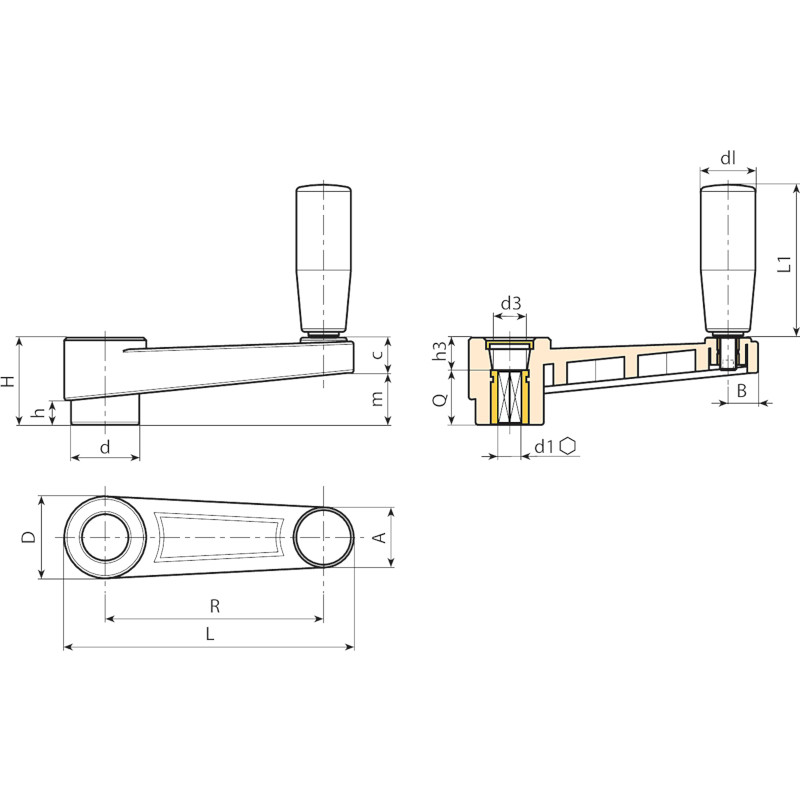

Art. L R H D d m c A B h d3 h3 d1H10 Q dl L1 3D
E232065.TE0601P 89 65 30 27,5 22 17 13 20 9,5 8 14,5 10 6 20 20 52 101
E232065.TE0801P 89 65 30 27,5 22 17 13 20 9,5 8 14,5 10 8 20 20 52 98
E232080.TE1001P 107 80 33,5 32 26 20,5 13 23 11 9 19,5 9,5 10 24 20 52 120
E232080.TE1201P 107 80 33,5 32 26 20,5 13 23 11 9 19,5 9,5 12 24 20 52 118
E232110.TE1201P 140 110 39 35 29 22 14 24 12 11 19,5 11 12 28 23,5 63 167
E232110.TE1401P 140 110 39 35 29 22 14 24 12 11 19,5 11 14 28 23,5 63 163
E232140.TE1401P 175 140 49 44 35,5 32 17 27 13 15,5 24 19 14 30 25 72 257
E232140.TE1601P 175 140 49 44 35,5 32 17 27 13 15,5 24 19 16 30 25 72 252
E232185.TE1601P 223 185 55 47,5 40 38,5 16,5 27 14 17 29,5 21 16 34 26 82 390
E232185.TE1701P 223 185 55 47,5 40 38,5 16,5 27 14 17 29,5 21 17 34 26 82 390
