E330

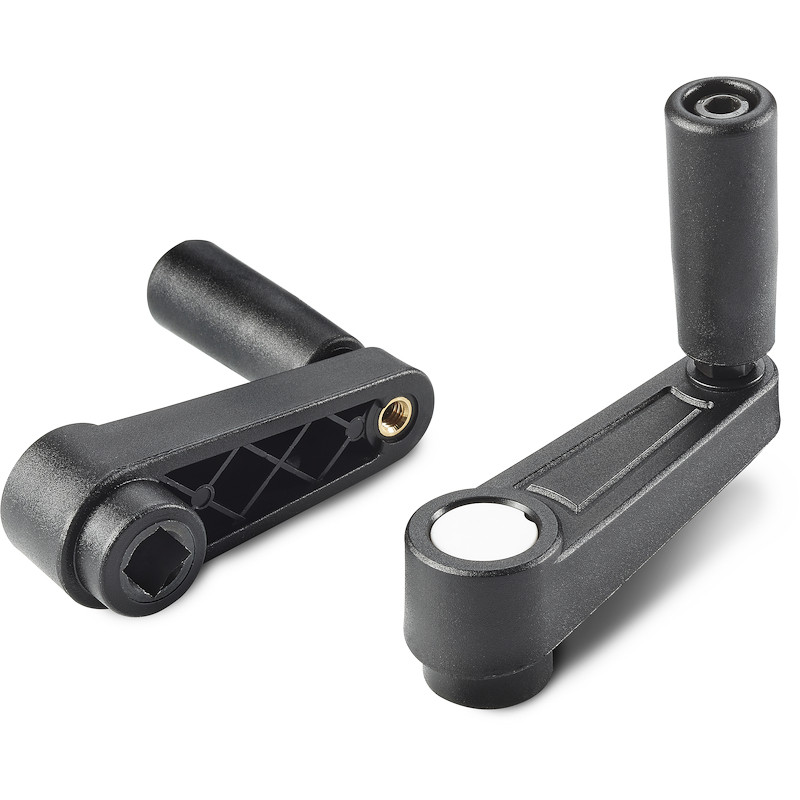

Crank handles with square bore

CRANK HANDLE WITH SQUARE HOLE AND REVOLVING HANDLE

Ver. EEN.17-1221

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Material:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Central cap:
    Grey polyamide (RAL 7035). 13).

    Alternative Cap colours:
    Orange (RAL 2004 code 02).
    Red (RAL 3000 code 16).
    Blue (RAL 5015 code 07).
    Green (RAL 6024 code 17).
    Yellow (RAL 1021 code 10).
    Black (RAL 9011 code 01).

    Inserts:
    Bush with square through hole in black oxide treated steel (hole tolerance H10).

    Lateral insert:
    Brass insert with threaded through hole.

    Lateral handle:
    Revolving handle art. M144 [pageFAM_M144.

    Special requests:
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

  • Certifications

Alternative products

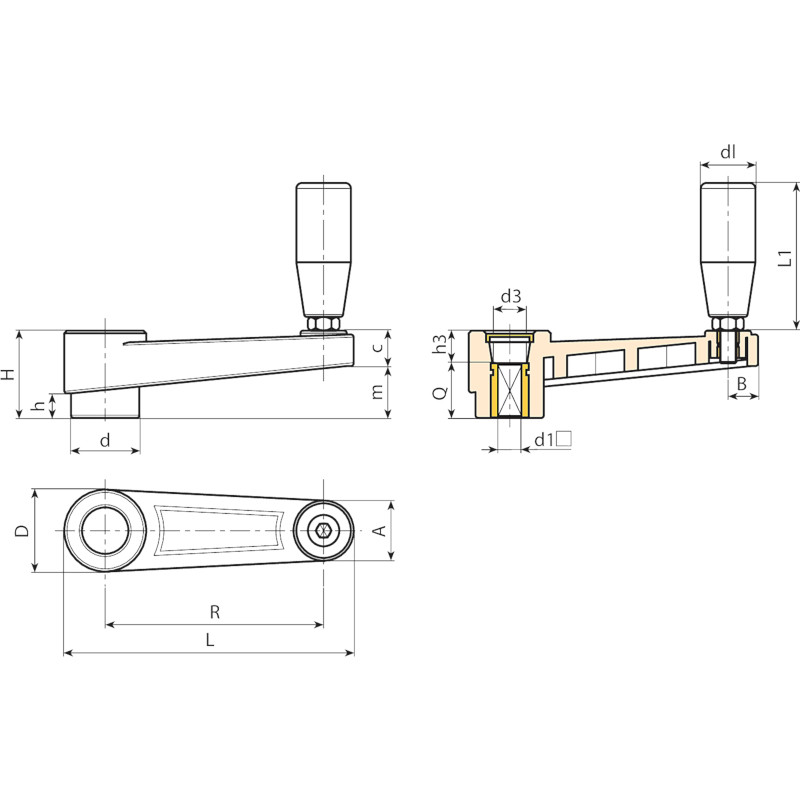

Art. L R H D d m c A B h d3 h3 d1H10 Q dl L1 3D
E330065.TQ0601P 88,5 65 30 27,5 22 17 13 18 9,5 8 14,5 10 6 20 19 54 96
E330065.TQ0801P 88,5 65 30 27,5 22 17 13 18 9,5 8 14,5 10 8 20 19 54 92
E330080.TQ1001P 107 80 33,5 32 26 20,5 13 23 11 9 19,5 9,5 10 24 19 54 105
E330110.TQ1201P 140 110 39 35 29 25 14 24 12 11 19,5 11 12 28 21 66 152
E330140.TQ1401P 175 140 49 44 35,5 32 17 27 13 15,5 24 19 14 30 23,5 76 242
E330185.TQ1701P 223 185 55 47,5 40 38,5 16,5 27 14 17 29,5 21 17 34 25,5 87 385
