P533

Füße aus Metall mit gelenkiger Spindel

GELENKFUSS MIT VERSTELLSPINDEL TYP B AUS STAHL MIT KUGEL 15

Ausf. 16V01-0124

P533:
Fußbasis aus gedrehtem Automatenstahl.

Glatt.

  • Technische Eigenschaften

    Material:
    P533:
    Fußbasis aus gedrehtem Automatenstahl.
    P533CIN:
    Fußbasis aus gedrehtem Edelstahl (AISI 303).

    Oberfläche:
    Glatt.

    Farbe:
    P533:
    Standardmäßige Blauverzinkung.
    P533CIN:
    Natur.

    Einsatz:
    P533:
    Gelenkige Gewindespindel (Kugel 15) mit gefräster Schlüsselaufnahme (Typ B) aus verzinktem Stahl (Gewindetoleranz 6g).
    P533CIN:
    Gelenkige Verstellspindel (Kugel 15) mit Aufnahme für Gabelschlüssel (Typ B) aus Edelstahl (AISI 304) (Gewindetoleranz 6g).

    Spindelbefestigung:
    Spindel nicht ausbaufähig. Die Kugel kann nicht entfernt werden, weil der Rand ihres Sitzes gefalzt ist.

    Weitere Möglichkeiten:
    Auf Anfrage und ab bestimmten Abnahmemengen können die Einsätze in Sonderlängen geliefert werden.

Alternativprodukte
Ausführung P533: Gelenkfuß aus verzinktem Stahl mit Verstellspindel Typ B (mit Aufnahme für Gabelschlüssel) und Kugel 15

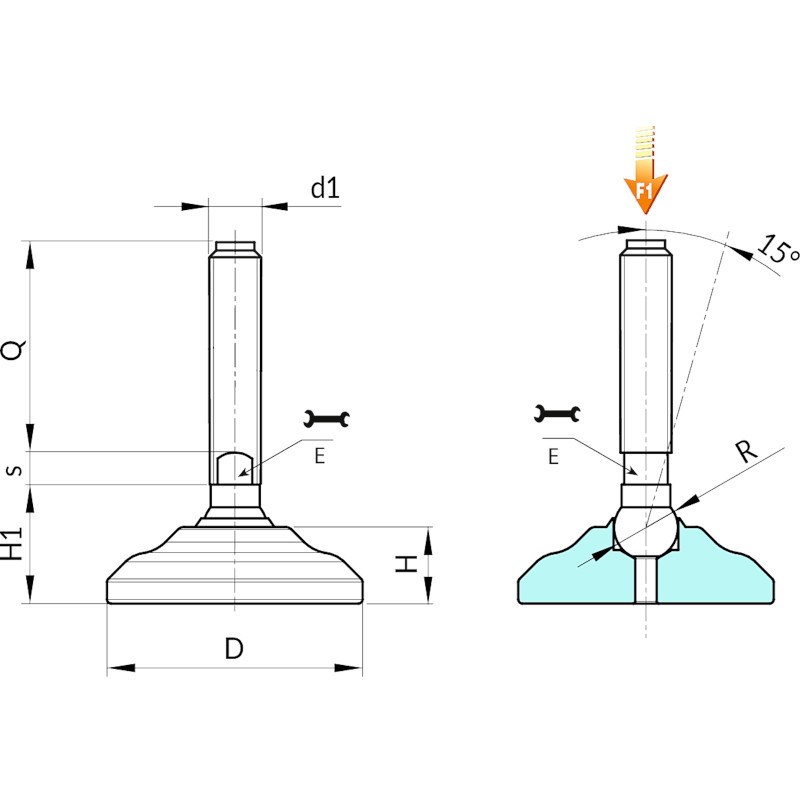

Codice Art. D H H1 E s R d16g Q F1 (kN) 3D
- P53350.VZM20X90 50 13,5 23 16 7 15 M20 90 372 50
P53350.0016 P53350.VZM20X110 50 13,5 23 16 7 15 M20 110 404 50
P53350.0017 P53350.VZM20X130 50 13,5 23 16 7 15 M20 130 436 50
P53350.0018 P53350.VZM20X150 50 13,5 23 16 7 15 M20 150 471 50
P53350.0019 P53350.VZM20X170 50 13,5 23 16 7 15 M20 170 503 50
P53350.0020 P53350.VZM20X190 50 13,5 23 16 7 15 M20 190 536 50
P53350.0021 P53350.VZM20X210 50 13,5 23 16 7 15 M20 210 571 50
- P53360.VZM20X90 60 18 28 16 7 15 M20 90 472 50
P53360.0016 P53360.VZM20X110 60 18 28 16 7 15 M20 110 504 50
P53360.0017 P53360.VZM20X130 60 18 28 16 7 15 M20 130 536 50
P53360.0018 P53360.VZM20X150 60 18 28 16 7 15 M20 150 571 50
P53360.0019 P53360.VZM20X170 60 18 28 16 7 15 M20 170 603 50
P53360.0020 P53360.VZM20X190 60 18 28 16 7 15 M20 190 636 50
P53360.0021 P53360.VZM20X210 60 18 28 16 7 15 M20 210 671 50
- P53340.VZM24X90 40 11,5 20 19 7 15 M24 90 433 50
P53340.0023 P53340.VZM24X110 40 11,5 20 19 7 15 M24 110 493 50
P53340.0024 P53340.VZM24X130 40 11,5 20 19 7 15 M24 130 553 50
P53340.0025 P53340.VZM24X150 40 11,5 20 19 7 15 M24 150 613 50
P53340.0026 P53340.VZM24X170 40 11,5 20 19 7 15 M24 170 673 50
P53340.0027 P53340.VZM24X190 40 11,5 20 19 7 15 M24 190 733 50
P53340.0028 P53340.VZM24X210 40 11,5 20 19 7 15 M24 210 793 50
- P53350.VZM24X90 50 13,5 23 19 7 15 M24 90 496 50
P53350.0023 P53350.VZM24X110 50 13,5 23 19 7 15 M24 110 556 50
P53350.0024 P53350.VZM24X130 50 13,5 23 19 7 15 M24 130 616 50
P53350.0025 P53350.VZM24X150 50 13,5 23 19 7 15 M24 150 676 50
P53350.0026 P53350.VZM24X170 50 13,5 23 19 7 15 M24 170 736 50
P53350.0027 P53350.VZM24X190 50 13,5 23 19 7 15 M24 190 796 50
P53350.0028 P53350.VZM24X210 50 13,5 23 19 7 15 M24 210 856 50
- P53360.VZM24X90 60 18 28 19 7 15 M24 90 596 50
P53360.0023 P53360.VZM24X110 60 18 28 19 7 15 M24 110 656 50
P53360.0024 P53360.VZM24X130 60 18 28 19 7 15 M24 130 716 50
P53360.0025 P53360.VZM24X150 60 18 28 19 7 15 M24 150 776 50
P53360.0026 P53360.VZM24X170 60 18 28 19 7 15 M24 170 836 50
P53360.0027 P53360.VZM24X190 60 18 28 19 7 15 M24 190 896 50
P53360.0028 P53360.VZM24X210 60 18 28 19 7 15 M24 210 956 50

Achtung: Die angegebene Belastbarkeitsgrenze F1 liegt 30% unter der Bruchlast und gilt als statisch.
Sonderstiftlängen ab einer Mindestbestellmenge von 100 Stück.

Ausführung P533CIN: Gelenkfuß aus Edelstahl mit Verstellspindel Typ B (mit Aufnahme für Gabelschlüssel) und Kugel 15
Codice Art. D H H1 E s R d16g Q F1 (kN) 3D
- P53340.INM20X90CIN 40 11,5 20 16 7 15 M20 90 309 50
P53340.0002 P53340.INM20X110CIN 40 11,5 20 16 7 15 M20 110 341 50
P53340.0003 P53340.INM20X130CIN 40 11,5 20 16 7 15 M20 130 373 50
P53340.0004 P53340.INM20X150CIN 40 11,5 20 16 7 15 M20 150 408 50
P53340.0005 P53340.INM20X170CIN 40 11,5 20 16 7 15 M20 170 440 50
P53340.0006 P53340.INM20X190CIN 40 11,5 20 16 7 15 M20 190 473 50
P53340.0007 P53340.INM20X210CIN 40 11,5 20 16 7 15 M20 210 508 50
- P53350.INM20X90CIN 50 13,5 23 16 7 15 M20 90 372 50
P53350.0002 P53350.INM20X110CIN 50 13,5 23 16 7 15 M20 110 404 50
P53350.0003 P53350.INM20X130CIN 50 13,5 23 16 7 15 M20 130 436 50
P53350.0004 P53350.INM20X150CIN 50 13,5 23 16 7 15 M20 150 471 50
P53350.0005 P53350.INM20X170CIN 50 13,5 23 16 7 15 M20 170 503 50
P53350.0006 P53350.INM20X190CIN 50 13,5 23 16 7 15 M20 190 536 50
P53350.0007 P53350.INM20X210CIN 50 13,5 23 16 7 15 M20 210 571 50
- P53360.INM20X90CIN 60 18 28 16 7 15 M20 90 472 50
P53360.0002 P53360.INM20X110CIN 60 18 28 16 7 15 M20 110 504 50
P53360.0003 P53360.INM20X130CIN 60 18 28 16 7 15 M20 130 536 50
P53360.0004 P53360.INM20X150CIN 60 18 28 16 7 15 M20 150 571 50
P53360.0005 P53360.INM20X170CIN 60 18 28 16 7 15 M20 170 603 50
P53360.0006 P53360.INM20X190CIN 60 18 28 16 7 15 M20 190 636 50
P53360.0007 P53360.INM20X210CIN 60 18 28 16 7 15 M20 210 671 50
- P53340.INM24X90CIN 40 11,5 20 19 7 15 M24 90 433 50
P53340.0009 P53340.INM24X110CIN 40 11,5 20 19 7 15 M24 110 493 50
P53340.0010 P53340.INM24X130CIN 40 11,5 20 19 7 15 M24 130 553 50
P53340.0011 P53340.INM24X150CIN 40 11,5 20 19 7 15 M24 150 613 50
P53340.0012 P53340.INM24X170CIN 40 11,5 20 19 7 15 M24 170 673 50
P53340.0013 P53340.INM24X190CIN 40 11,5 20 19 7 15 M24 190 733 50
P53340.0014 P53340.INM24X210CIN 40 11,5 20 19 7 15 M24 210 793 50
- P53350.INM24X90CIN 50 13,5 23 19 7 15 M24 90 496 50
P53350.0009 P53350.INM24X110CIN 50 13,5 23 19 7 15 M24 110 556 50
P53350.0010 P53350.INM24X130CIN 50 13,5 23 19 7 15 M24 130 616 50
P53350.0011 P53350.INM24X150CIN 50 13,5 23 19 7 15 M24 150 676 50
P53350.0012 P53350.INM24X170CIN 50 13,5 23 19 7 15 M24 170 736 50
P53350.0013 P53350.INM24X190CIN 50 13,5 23 19 7 15 M24 190 796 50
P53350.0014 P53350.INM24X210CIN 50 13,5 23 19 7 15 M24 210 856 50

Achtung: Die angegebene Belastbarkeitsgrenze F1 liegt 30% unter der Bruchlast und gilt als statisch.
Sonderstiftlängen ab einer Mindestbestellmenge von 100 Stück.
