P530

Füße aus Metall mit gelenkiger Spindel

GELENKFUSS MIT VERSTELLSPINDEL TYP A AUS VOLLSTAHL MIT KUGEL 12,5

Ausf. 16V01-0124

P530:
Fußbasis aus gedrehtem Automatenstahl.

Glatt.

  • Technische Eigenschaften

    Material:
    P530:
    Fußbasis aus gedrehtem Automatenstahl.
    P530CIN:
    Fußbasis aus gedrehtem Edelstahl (AISI 303).

    Oberfläche:
    Glatt.

    Farbe:
    P530:
    Standardmäßige Blauverzinkung.
    P530CIN:
    Natur.

    Einsatz:
    P530:
    Gelenkige Gewindespindel (Kugel 12,5) mit Sechskantbasis aus verzinktem Stahl (Gewindetoleranz 6g).
    P530CIN:
    Gelenkige Gewindespindel (Kugel 12,5) mit Sechskantbasis aus Edelstahl (AISI 303) (Gewindetoleranz 6g).

    Spindelbefestigung:
    Spindel nicht ausbaufähig. Die Kugel kann nicht entfernt werden, weil der Rand ihres Sitzes gefalzt ist.

    Weitere Möglichkeiten:
    Auf Anfrage und ab bestimmten Abnahmemengen können die Einsätze in Sonderlängen geliefert werden.

Alternativprodukte
Ausführung P530: Gelenkfuß aus verzinktem Stahl mit Verstellspindel Typ A (mit Sechskant) und Kugel 12,5

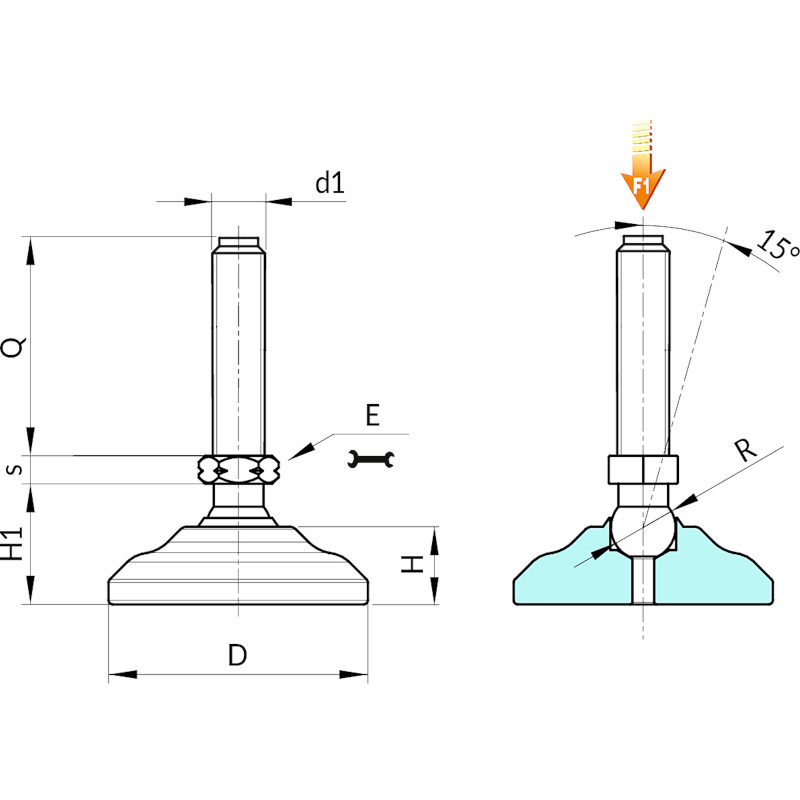

Codice Art. D H H1 E s R d16g Q F1 (kN) 3D
P53040.0009 P53040.VZM08X45 40 11,5 20 13 5 15 M8 45 132 50
P53040.0010 P53040.VZM08X70 40 11,5 20 13 5 15 M8 70 139 50
P53040.0011 P53040.VZM10X045 40 11,5 20 13 5 12.5 M10 45 140 23
P53040.0012 P53040.VZM10X070 40 11,5 20 13 5 12.5 M10 70 152 23
P53040.0013 P53040.VZM10X100 40 11,5 20 13 5 12.5 M10 100 179 23
P53040.0014 P53040.VZM12X045 40 11,5 20 13 5 12.5 M12 45 149 23
P53040.0015 P53040.VZM12X070 40 11,5 20 13 5 12.5 M12 70 168 23
P53040.0016 P53040.VZM12X100 40 11,5 20 13 5 12.5 M12 100 188 23
P53060.0009 P53060.VZM08X045 60 18 28 13 5 12.5 M8 45 295 13
P53060.0010 P53060.VZM08X070 60 18 28 13 5 12.5 M8 70 302 13
P53050.0011 P53050.VZM10X045 50 13.5 23 13 5 12.5 M10 45 203 23
P53050.0012 P53050.VZM10X070 50 13.5 23 13 5 12.5 M10 70 215 23
P53050.0013 P53050.VZM10X100 50 13.5 23 13 5 12.5 M10 100 240 23
P53050.0014 P53050.VZM12X045 50 13.5 23 13 5 12.5 M12 45 212 23
P53050.0015 P53050.VZM12X070 50 13.5 23 13 5 12.5 M12 70 231 23
P53050.0016 P53050.VZM12X100 50 13.5 23 13 5 12.5 M12 100 251 23
P53060.0009 P53060.VZM08X045 60 18 28 13 5 12.5 M8 45 295 13
P53060.0010 P53060.VZM08X070 60 18 28 13 5 12.5 M8 70 302 13
P53060.0011 P53060.VZM10X045 60 18 28 13 5 12.5 M10 45 303 23
P53060.0012 P53060.VZM10X070 60 18 28 13 5 12.5 M10 70 315 23
P53060.0013 P53060.VZM10X100 60 18 28 13 5 12.5 M10 100 340 23
P53060.0014 P53060.VZM12X045 60 18 28 13 5 12.5 M12 45 312 23
P53060.0015 P53060.VZM12X070 60 18 28 13 5 12.5 M12 70 331 23
P53060.0016 P53060.VZM12X100 60 18 28 13 5 12.5 M12 100 351 23

Achtung: Die angegebene Belastbarkeitsgrenze F1 liegt 30% unter der Bruchlast und gilt als statisch.
Sonderstiftlängen ab einer Mindestbestellmenge von 100 Stück.

Ausführung P530CIN: Gelenkfuß aus Edelstahl mit Verstellspindel Typ A (mit Sechskant) und Kugel 12,5
Codice Art. D H H1 E s R d16g Q F1 (kN) 3D
P53040.0001 P53040.INM08X045CIN 40 11,5 20 13 5 12.5 M8 45 132 13
P53040.0002 P53040.INM08X070CIN 40 11,5 20 13 5 12.5 M8 70 139 13
P53040.0003 P53040.INM10X045CIN 40 11,5 20 13 5 12.5 M10 45 140 23
P53040.0005 P53040.INM10X70CIN 40 11,5 20 13 5 12.5 M10 70 152 23
P53040.0004 P53040.INM10X100CIN 40 11,5 20 13 5 12.5 M10 100 179 23
P53040.0006 P53040.INM12X045CIN 40 11,5 20 13 5 12.5 M12 45 149 23
P53040.0007 P53040.INM12X070CIN 40 11,5 20 13 5 12.5 M12 70 168 23
P53040.0008 P53040.INM12X100CIN 40 11,5 20 13 5 12.5 M12 100 188 23
P53050.0001 P53050.INM08X045CIN 50 13.5 23 13 5 12.5 M8 45 195 13
P53050.0002 P53050.INM08X070CIN 50 13.5 23 13 5 12.5 M8 70 202 13
P53050.0003 P53050.INM10X045CIN 50 13.5 23 13 5 12.5 M10 45 203 23
P53050.0004 P53050.INM10X070CIN 50 13.5 23 13 5 12.5 M10 70 215 23
P53050.0005 P53050.INM10X100CIN 50 13.5 23 13 5 12.5 M10 100 240 23
P53050.0006 P53050.INM12X045CIN 50 13.5 23 13 5 12.5 M12 45 212 23
P53050.0007 P53050.INM12X070CIN 50 13.5 23 13 5 12.5 M12 70 231 23
P53050.0008 P53050.INM12X100CIN 50 13.5 23 13 5 12.5 M12 100 251 23
P53060.0001 P53060.INM08X045CIN 60 18 28 13 5 12.5 M8 45 295 13
P53060.0002 P53060.INM08X070CIN 60 18 28 13 5 12.5 M8 70 302 13
P53060.0003 P53060.INM10X045CIN 60 18 28 13 5 12.5 M10 45 303 23
P53060.0004 P53060.INM10X070CIN 60 18 28 13 5 12.5 M10 70 315 23
P53060.0005 P53060.INM10X100CIN 60 18 28 13 5 12.5 M10 100 340 23
P53060.0006 P53060.INM12X045CIN 60 18 28 13 5 12.5 M12 45 312 23
P53060.0007 P53060.INM12X070CIN 60 18 28 13 5 12.5 M12 70 331 23
P53060.0008 P53060.INM12X100CIN 60 18 28 13 5 12.5 M12 100 351 23

Achtung: Die angegebene Belastbarkeitsgrenze F1 liegt 30% unter der Bruchlast und gilt als statisch.
Sonderstiftlängen ab einer Mindestbestellmenge von 100 Stück.
