09

I119

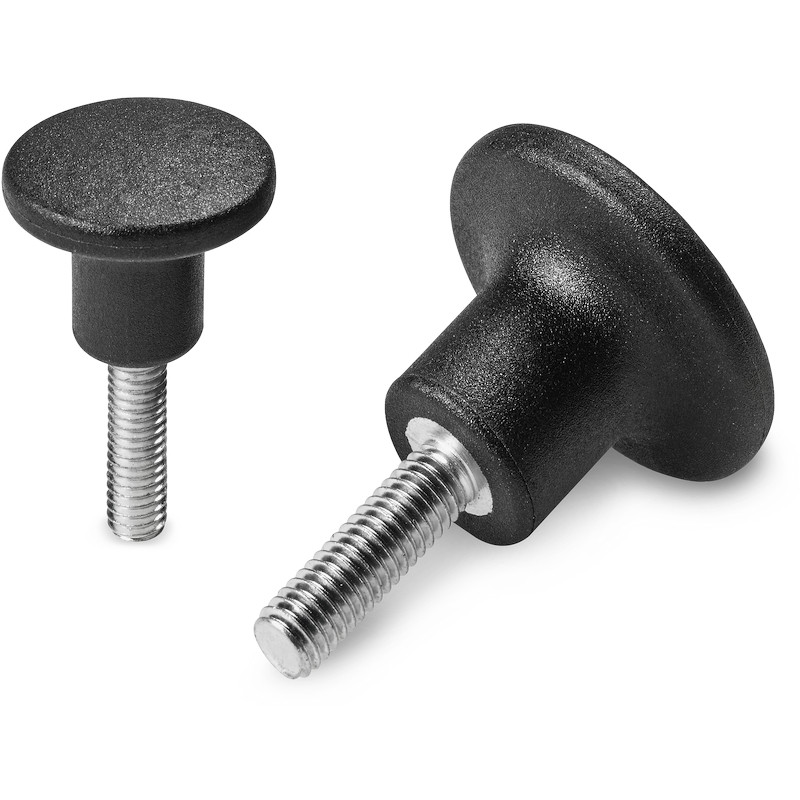

Mushroom knob

MUSHROOM KNOB WITH THREADED STUD

Ver. 09V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

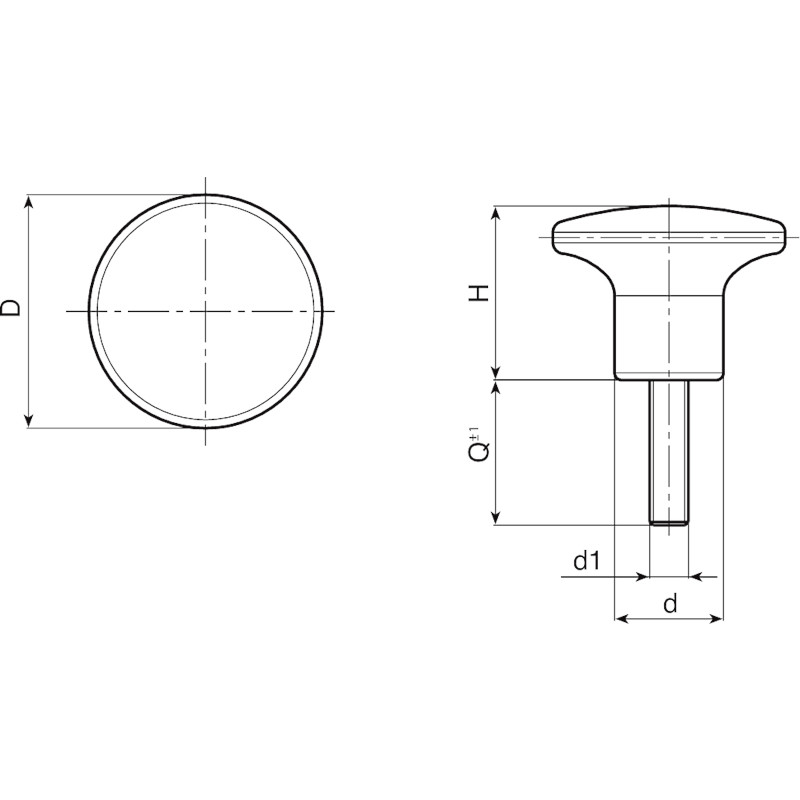

Codice art. D H d LM d16g Q
I11922.0002 I11922.TM04X2001 22 17 11 65 M4 20 6
I11922.0008 I11922.TM05X3001 22 17 11 56 M5 30 9
I11922.0018 I11922.TM06X3001 22 17 11 65 M6 30 12
I11926.0004 I11926.TM06X3001 26 20.5 13 70 M6 30 14
I11926.0008 I11926.TM08X3001 26 20.5 13 70 M8 30 30
I11932.0011 I11932.TM06X3001 32 24 15 70 M6 30 18
I11932.0019 I11932.TM08X4001 32 24 15 70 M8 40 28
I11945.0006 I11945.TM10X3001 45 32 21 100 M10 30 48
I11945.0008 I11945.TM12X4001 45 32 21 100 M12 40 72

LM = maximum mouldable length.
Threaded stud length on request, with a minimum quantity of 250 pieces.
