09

I107

Conical knob

CONICAL KNOB WITH THREADED HOLE INSERT

Ver. 09V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    I107:
    Brass insert with female threaded hole (thread tolerance 6H).
    I107CIN:
    Stainless steel insert with female threaded hole (Aisi 303) (thread tolerance 6H).

    Special requests:
    Upon request and for special quantities available in the colours indicated in the chart (ATTENTION: reduced range for measures marked (*) ) [pageTitoloTabellaColori.

Alternative products

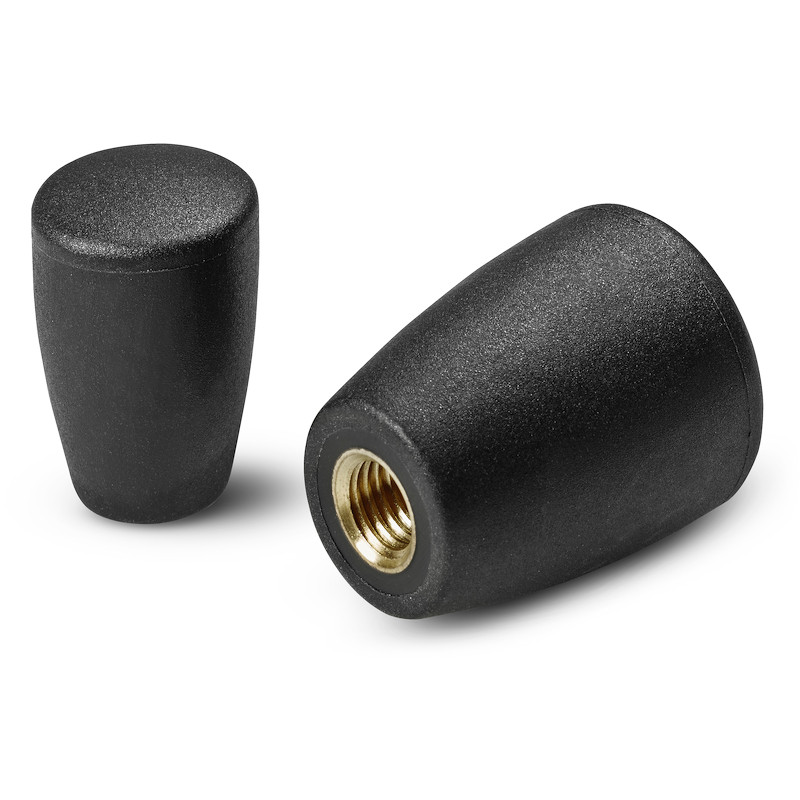

Version I107: with brass insert.

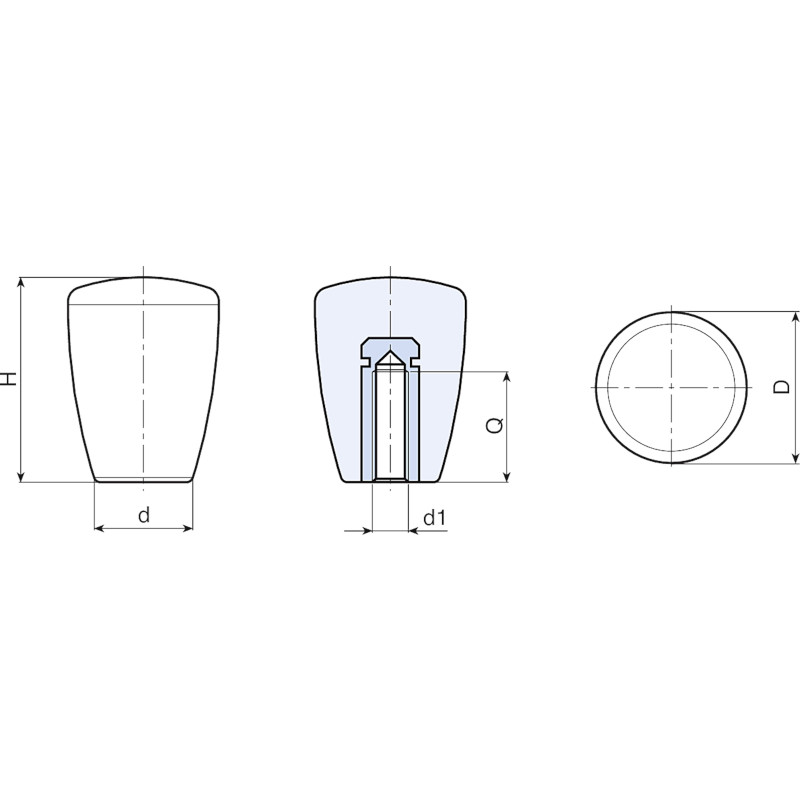

Codice art. D H d d16H Q
I10721.0001 I10721.TM0401 21 28 13 M4 10 14
I10721.0002 I10721.TM0501 21 28 13 M5 10 13
I10721.0004 I10721.TM0601 21 28 13 M6 10 13
I10725.0001 I10725.TM0601 25 34 17 M6 10 18
I10725.0004 I10725.TM0801 25 34 17 M8 13 20
I10725.0007 I10725.TM1001 25 34 17 M10 14 22
I10732.0001 I10732.TM0801 32 43 21 M8 14 40
I10732.0006 I10732.TM1001 32 43 21 M10 14 40
I10732.0010 I10732.TM1201 32 43 21 M12 18 44
I10743.0001 I10743.TM1001 43 58 27 (*) M10 18 90
I10743.0003 I10743.TM1201 43 58 27 (*) M12 18 90
I10743.0004 I10743.TM1401 43 58 27 (*) M14 19 92

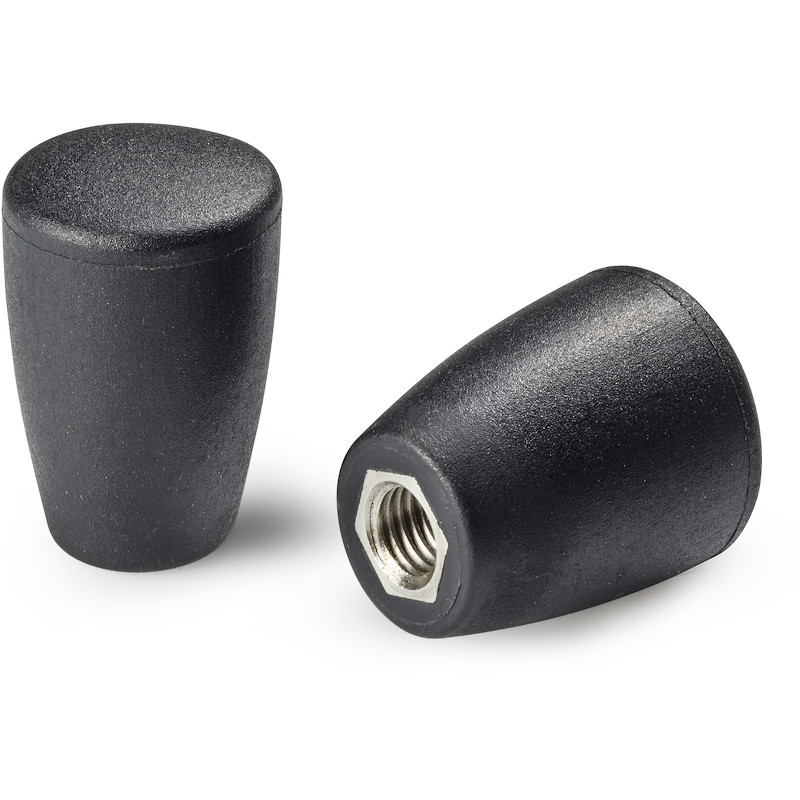

Version I107CIN: with stainless steel insert (Aisi 303).
Codice art. D H d d16H Q
I10721.0003 I10721.TM0501CIN 21 28 13 M5 15 16
I10725.0002 I10725.TM0601CIN 25 34 17 M6 16 20
I10725.0005 I10725.TM0801CIN 25 34 17 M8 16 22
I10725.0008 I10725.TM1001CIN 25 34 17 M10 16 25
I10732.0002 I10732.TM0801CIN 32 43 21 M8 16 43
I10732.0007 I10732.TM1001CIN 32 43 21 M10 16 43
I10732.0014 I10732.TM1201CIN 32 43 21 M12 20 48
I10743.0002 I10743.TM1001CIN 43 58 27 (*) M10 16 92
I10743.0008 I10743.TM1201CIN 43 58 27 (*) M12 20 92
