15

O455

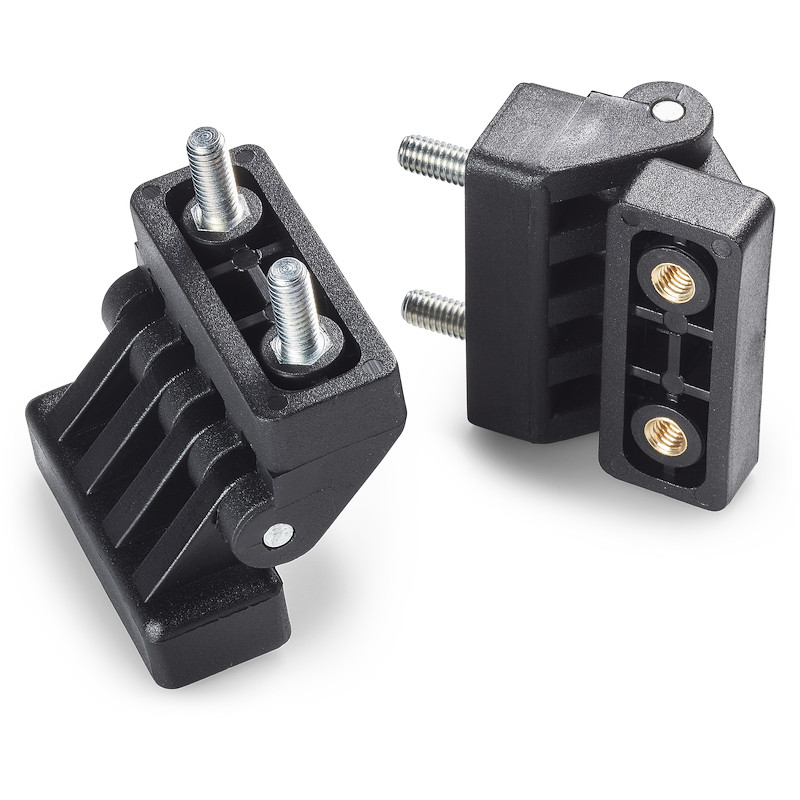

Plastic hinges with threaded inserts

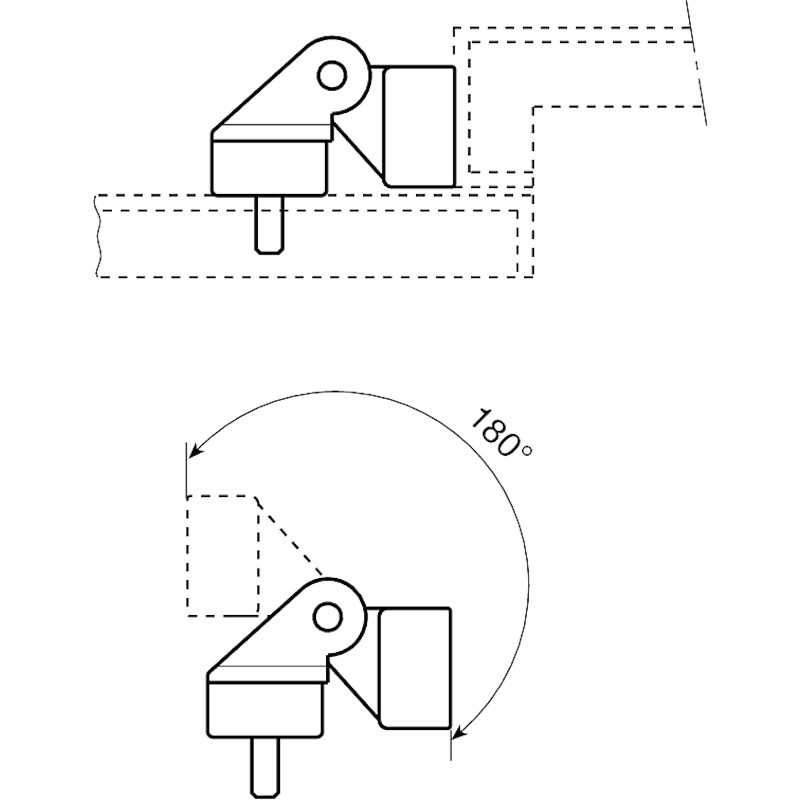

UNIVERSAL HINGE WITH THREADED STUD AND INSERT TO MOUNT ANGULAR DOOR

Ver. 15V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel pin.
    Galvanised steel threaded stud (thread tolerance 6g).
    Brass insert with female threaded hole (thread tolerance 6H).

    Special Requests:
    None.

Alternative products
Codice art. I C A B L F h h1 H d2 d3 d1 Q Q2 F1 (N) F2 (N) 3D
O45554.0001 O45554.TM0601 30 22,5 54 44 21,5 22 13 22,5 30 5 15 M6 7 15 72 295 1670
