15

O431

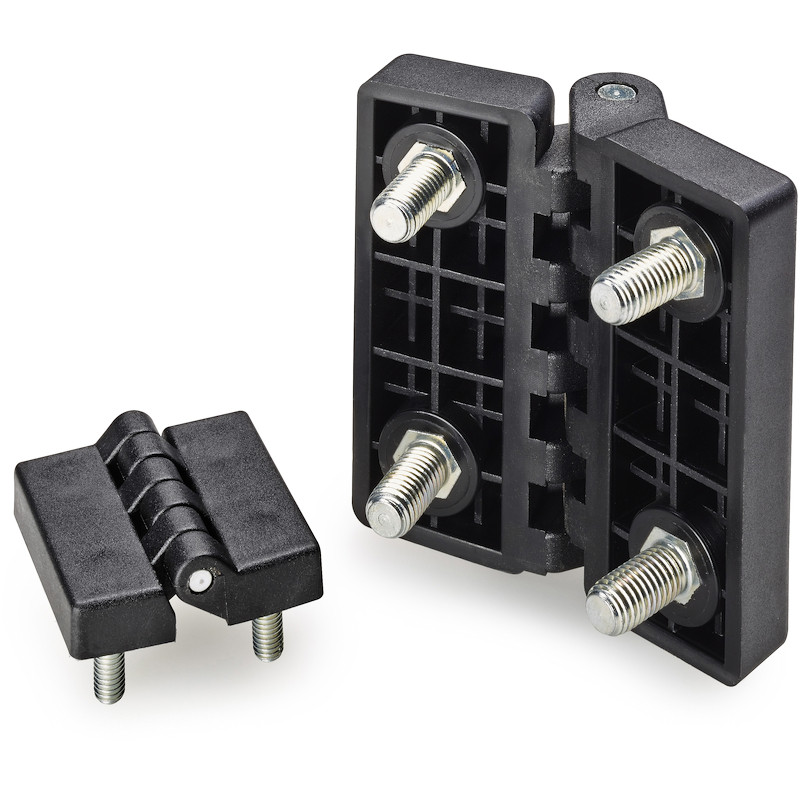

Plastic hinges with threaded inserts

FLAT HINGE WITH THREADED STUD

Ver. 15V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel pin.
    Galvanised steel threaded stud (thread tolerance 6g).

    Special Requests:
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

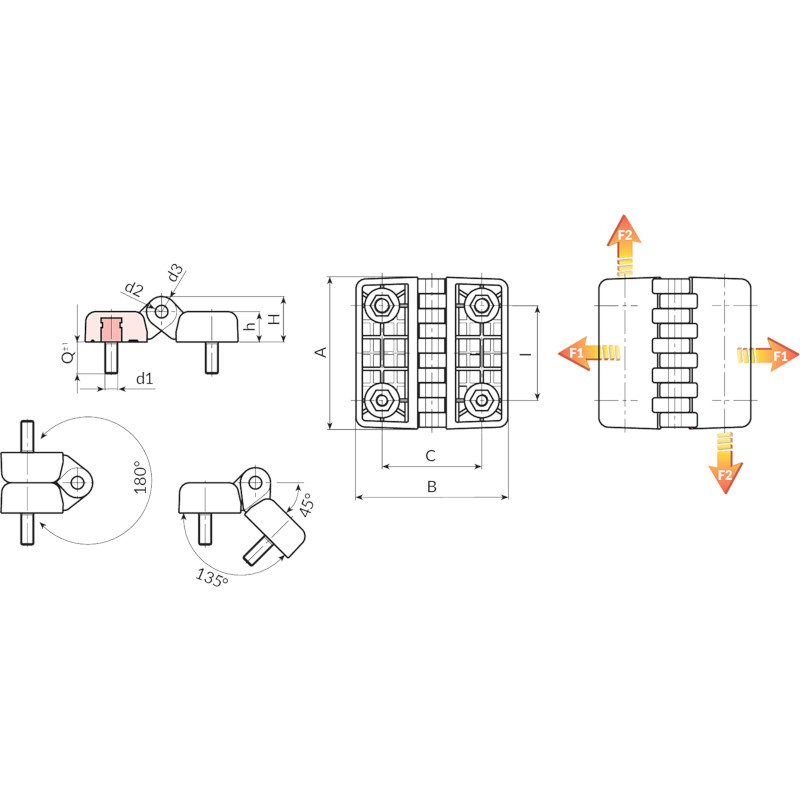

Codice art. I C A B h H d2 d3 d16g Q F1 (N) F2 (N) 3D
O43130.0001 O43130.TM05X1501 30 30 48 48 10.5 15.5 5 10 M5 15 49 1780 1370
O43130.0002 O43130.TM06X1501 30 30 48 48 10.5 15.5 5 10 M6 15 52 1780 1370
O43140.0001 O43140.TM06X2001 40 40 64 64 13 19 5 12 M6 20 90 4120 1760
O43140.0003 O43140.TM08X2001 40 40 64 64 13 19 5 12 M8 20 100 4120 1760
O43160.0001 O43160.TM08X2001 60 63 96 96 19 28.5 8 19 M8 20 260 4900 1275
O43160.0002 O43160.TM10X2001 60 63 96 96 19 28.5 8 19 M10 20 278 4900 1275
