O434

Plastic hinges with plain through hole

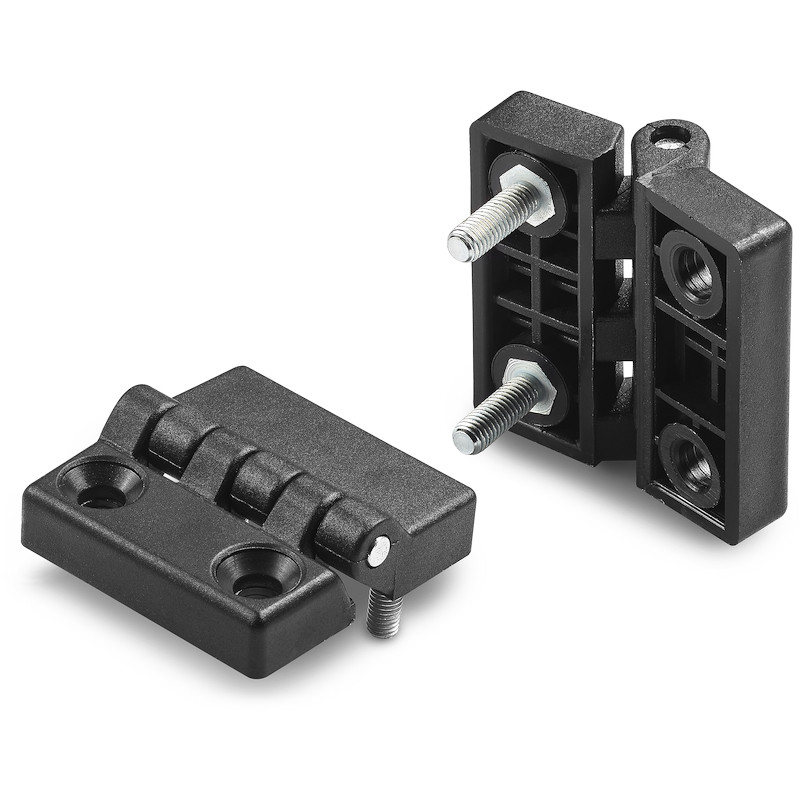

FLAT HINGE WITH THREADED STUD AND THROUGH HOLE

Ver. 15V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel pin.
    Galvanised steel threaded stud (thread tolerance 6g).

    Version TS:
    Special Requests:
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

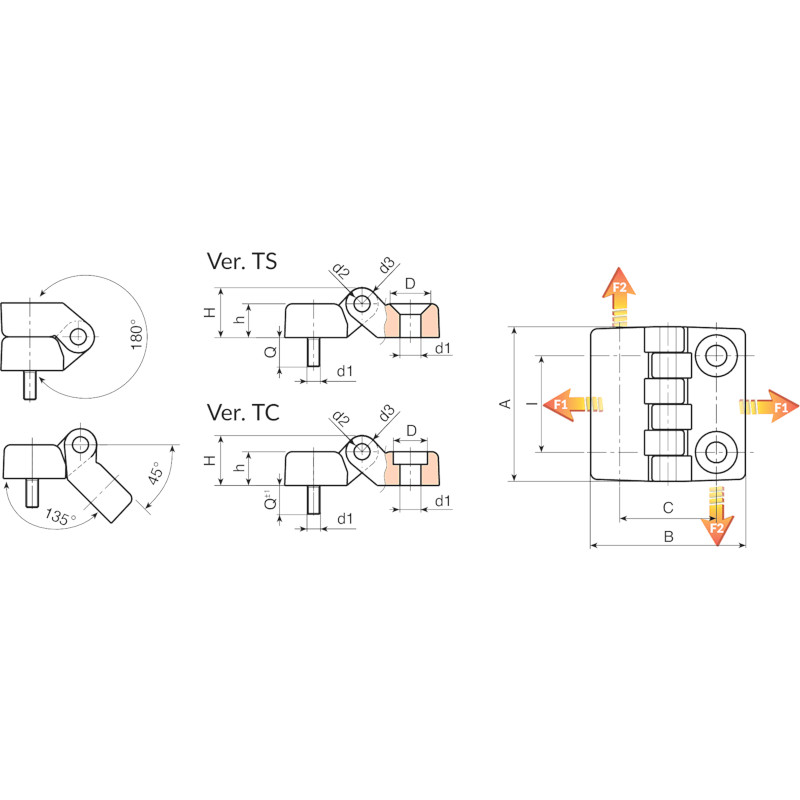

Version O434-TS: with holes for countersunk head screws
Codice art. I C A B h H D d2 d3 d1 Q F1 (N) F2 (N) 3D
O43430.0002 O43430.TM0601TS 30 30 48 48 10,5 15,5 12,5 5 10 M6 / 6,5 15 31 2000 1450
O43440.0002 O43440.TM0601TS 40 40 64 64 13 19 12,5 5 12 M6 / 6,5 20 60 3500 1650
Version O434-TC: with holes for cylindrical head screws
Codice art. I C A B h H D d2 d3 d1 Q F1 (N) F2 (N) 3D
O43430.0001 O43430.TM0601TC 30 30 48 48 10,5 15,5 10,5 5 10 M6 / 6,5 15 31 2000 1450
O43440.0001 O43440.TM0601TC 40 40 64 64 13 19 10,5 5 12 M6 / 6,5 20 60 3500 1650
