Metalline - Control handwheel

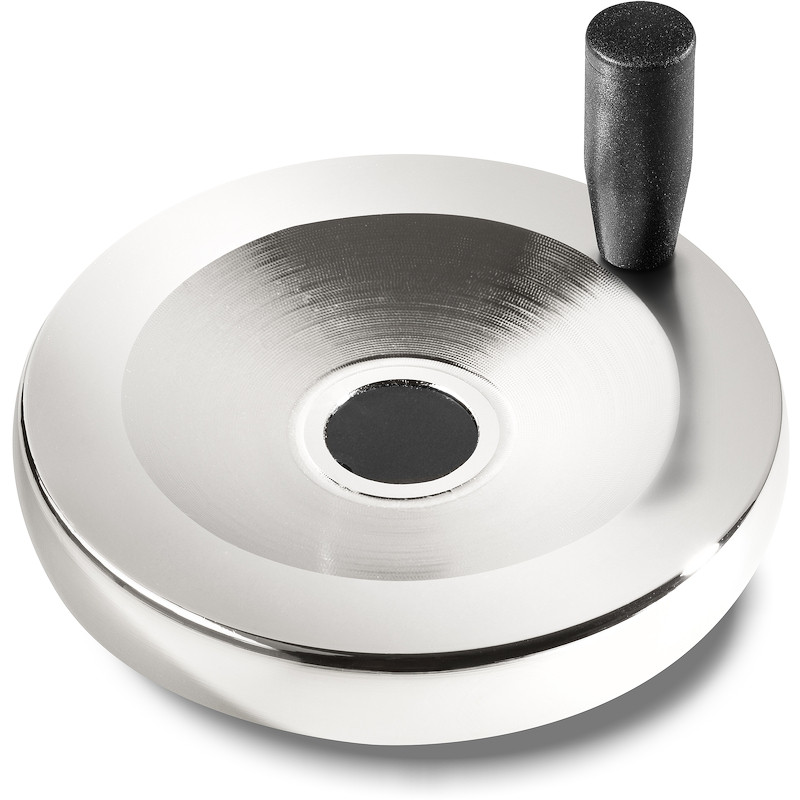

ALUMINIUM CONTROL HANDWHEEL WITH SMOOTH BORE AND REVOLVING HANDLE

Ver. 03V01-0124

Die-cast aluminium.

Satin finish, except for the sections (T) with low surface roughness obtained by turning.

  • Technical features

    Materials:
    Die-cast aluminium.

    Surface finish:
    Satin finish, except for the sections (T) with low surface roughness obtained by turning.

    Colour:
    Nickel plated (galvanic treatment).

    Alternative colours (min. 50 pieces):
    Black epoxy powder coated:
    (replace the final letter of the code (H) with letter V (W297100.AD10V).

    Cap:
    Central cap in black polyamide (RAL 9011 code 01).

    Alternative cap colours:
    The central cap for the black handwheel will be grey (RAL 7035 code no. 13).

    Lateral handle:
    Revolving handle art. M129 [pageFAM_M129.

    Hole:
    Smooth through hole, remachined with H7 tolerance.

    Fixing method:
    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

    Special Requests:
    Upon request and for special quantities handwheels can be supplied on customer’s drawing with hole diameter d1.

Alternative products

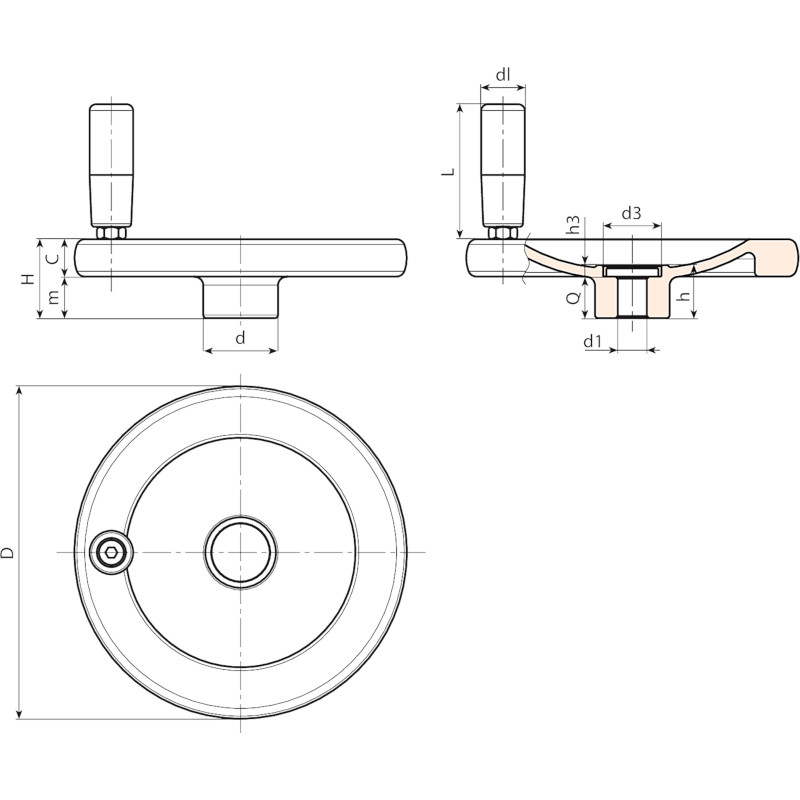

Codice Art. d D H m c h h3 d3 d1H7 Q dl L
W297080.0001 W297080.AD08H 26 80 26 14 12 21 5.5 20 8 15.5 20 52 185
W297100.0001 W297100.AD10H 28 100 28 14 14 21.5 5.5 20 10 16 20 52 282
W297130.0001 W297130.AD12H 36 130 35 19 16 25.5 5.5 28 12 20 23 62 492
W297160.0001 W297160.AD14H 36 160 38 20 18 25.5 5.5 28 12 20 25 72 778
W297200.0001 W297200.AD16H 42 200 44 24 20 31.5 6 34 16 25.5 25 81 1287

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H7).
