D779

Various maneuvering handwheels

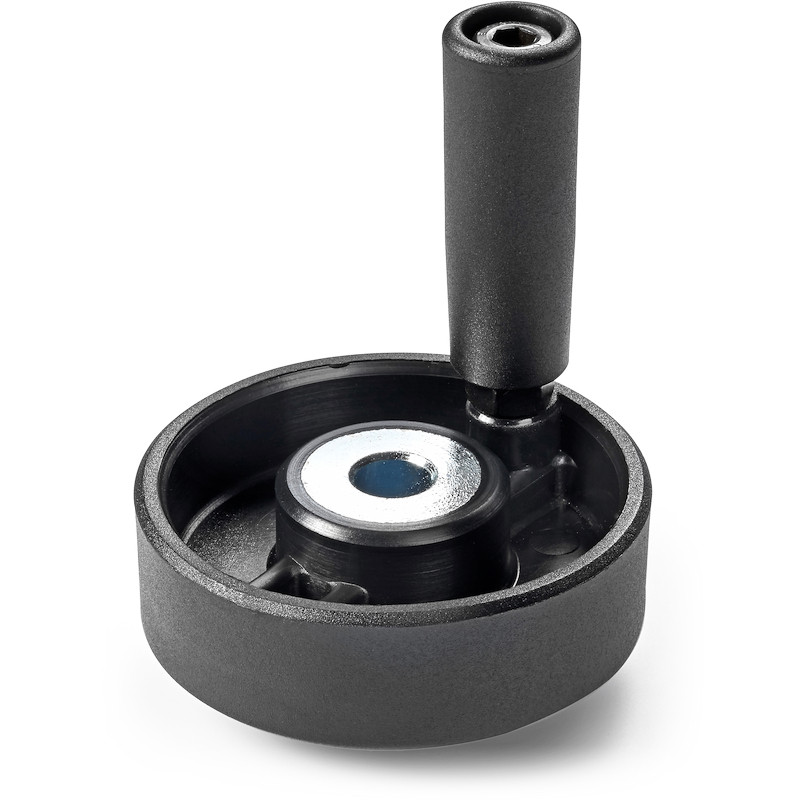

LIGHTWEIGHT CONTROL HANDWHEEL WITH REVOLVING HANDLE

Ver. 04V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Main insert:
    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:
    Brass insert with threaded through hole.

    Lateral handle:
    Revolving handle art. M144 [pageFAM_M144-Codice.

    Fixing method:
    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue [pageFAM_NT10-Codice.

    Special requests:
    Upon request and for a minimum of 50 pieces inserts can be supplied with hole d1 with tolerance H7 and black oxide treated finish. Add letters ZB to the standard code. Example: D77980.TD1101PZB.
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

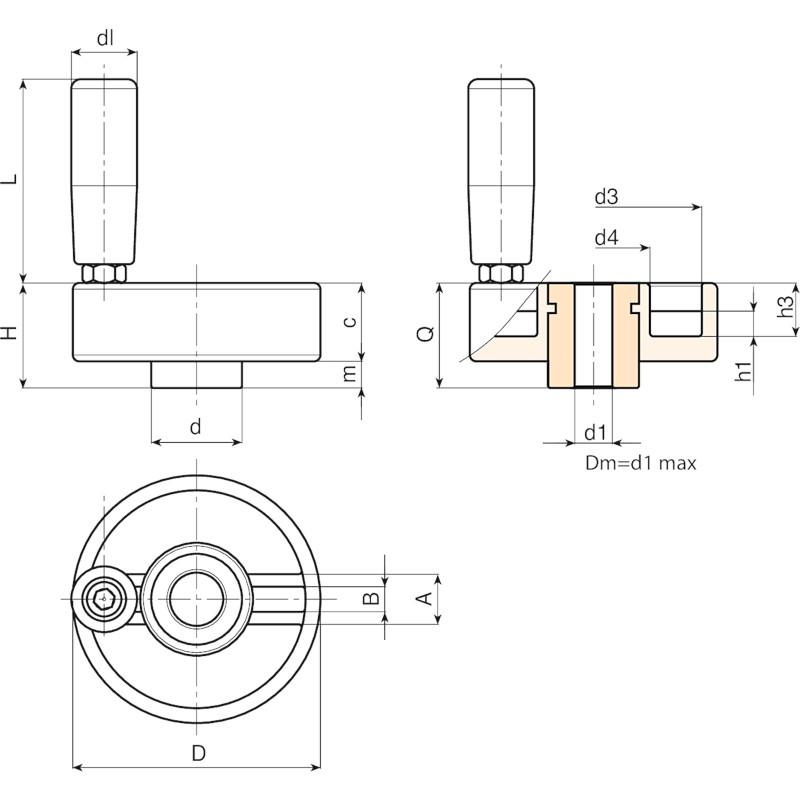

Codice Art. D H d c m h1 h3 A B d3 d4 dl L Dm d1H10 Q
D77980.0011 D77980.TP0501P 80 34 29 25 9 8 17 16 7.5 69 36 21 65 20 8 34 285
D77980.0003 D77980.TD1201P 80 34 29 25 9 8 17 16 7.5 69 36 21 65 20 12 34 279

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
