W614

Lateral spring plungers

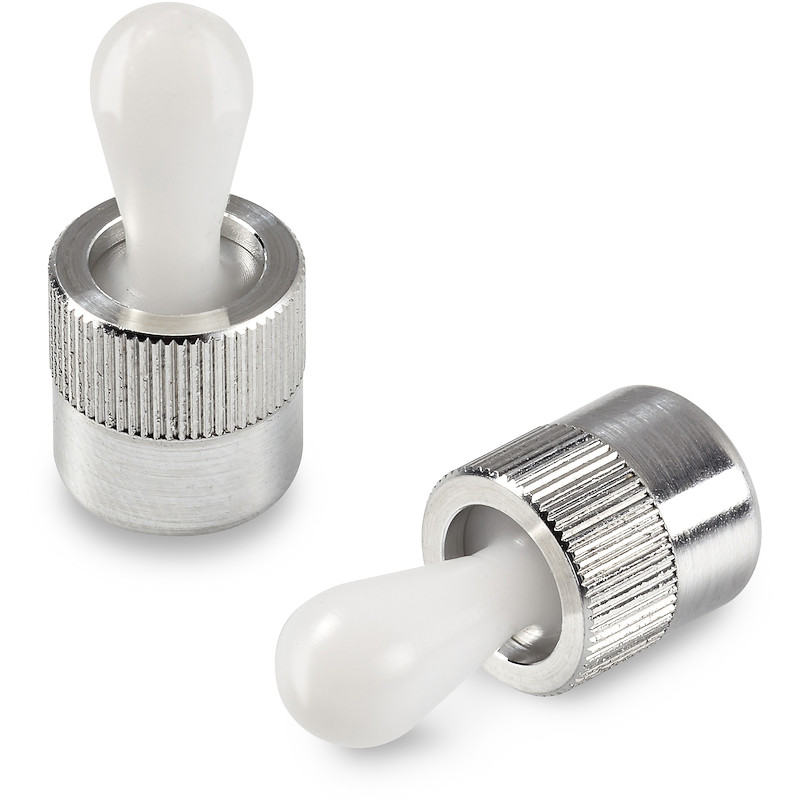

ALUMINIUM LATERAL SPRING PLUNGER WITH PLASTIC NOSE

Ver. W-PEN.06-0920

(1) Turned aluminium plunger body.
(3) Stainless steel spring (Aisi 302).

Smooth.

  • Technical features

    Materials:
    (1) Turned aluminium plunger body.
    (3) Stainless steel spring (Aisi 302).
    (2) White plastic nose pin (POM - Delrin).

    Surface finish:
    Smooth.

    Colour:
    (1,3) Natural.
    (2) Natural white.

    ATTENTION:
    We recommend the plunger hole to be made with a +0.1 mm tolerance.

    ATTENTION:
    The plunger mount bush can be ordered separately. See the code no. on the product line. Turned galvanised free-cutting steel bush.

    Special requests:
    None.

  • Certifications

Alternative products
Version W614: Lateral spring plunger with POM nose pin
art. d1 d h h1 D a F1 (N) G E=1 G E=2 G E=3 G E=4,5 G E=6 G E=8 Bussola 3D
W614006.VZD03F010 6 3 7 4 6,1 0,5 10 0,8 1 1 1 1 1 0,4 W616.03
W614010.VZD05F020 10 5 11 6,7 10,1 0,8 20 - 1,5 1,7 1,7 1,7 1,7 1,3 W616.05
W614010.VZD06F040 10 6 11 10,7 10,1 1 40 - - - 1,7 1,9 1,9 1.5 W616.06
W614012.VZD08F050 12 8 13 13,9 12,1 1,3 50 - - - - 2,5 2,7 2,9 W616.08
W614016.VZD10F100 16 10 17 16,7 16,1 1,6 100 - - - - - 3,1 7,2 W616.10
