l

L272

T-Handles

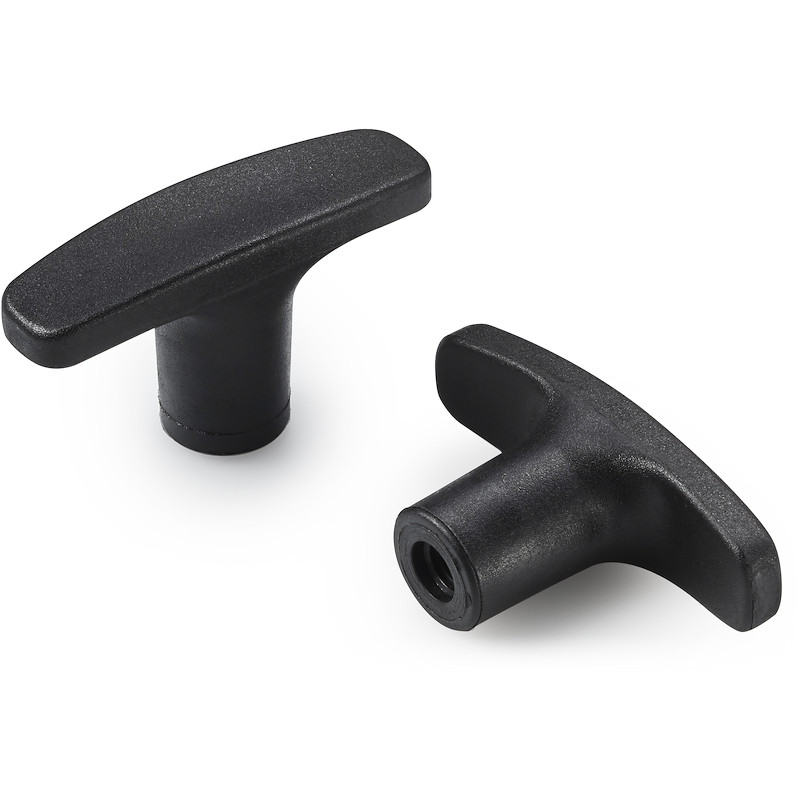

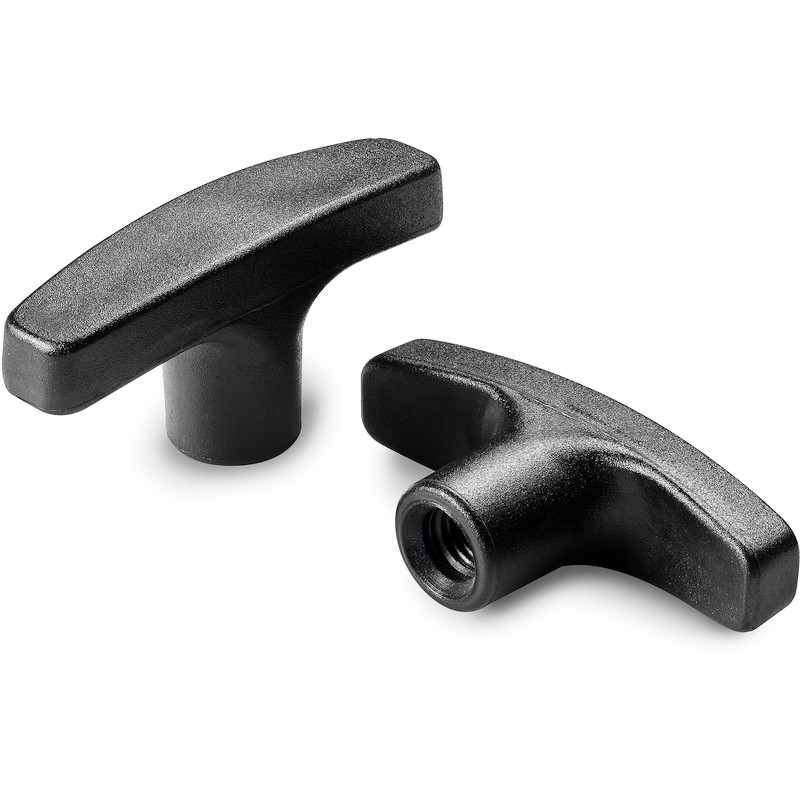

T-HANDLE WITH PLASTIC THREADED HOLE

Ver. LEN.23-0920

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Hole:
    Female threaded hole obtained by moulding the plastic (thread tolerance not applicable).

    Special Requests:
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

  • Certifications

Alternative products

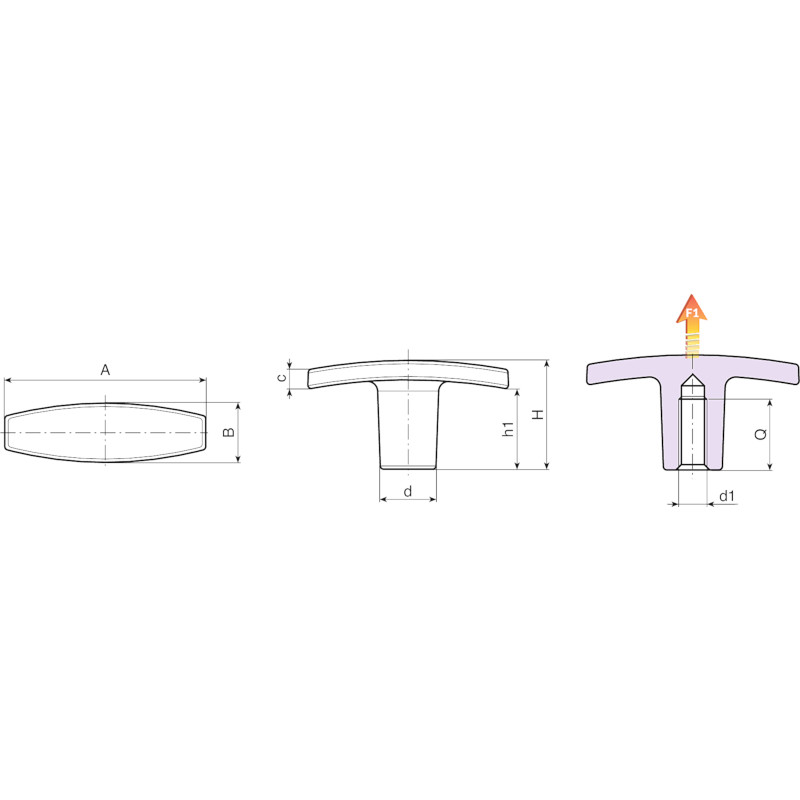

Art. A B H h1 c d d1 Q F1 (N) 3D
L27250.TM0501 50 15 24 17 5 14 M05 20 8 2800
L27250.TM0601 50 15 24 17 5 14 M06 20 8 2800
L27260.TM0501 60 18 33 24 6 16.5 M05 19 14 3000
L27260.TM0601 60 18 33 24 6 16.5 M06 19 14 3000
L27260.TM0801 60 18 33 24 6 17 M08 19 14 3000
L27260.TM1001 60 18 33 24 6 18 M10 19 13 3000
L27272.TM0801 72 19 34 20 10 18 M08 21 20 4600
L27272.TM1001 72 19 34 20 10 18 M10 21 20 4600
L27272.TM1201 72 19 34 20 10 18 M12 20 19 4600
