C970

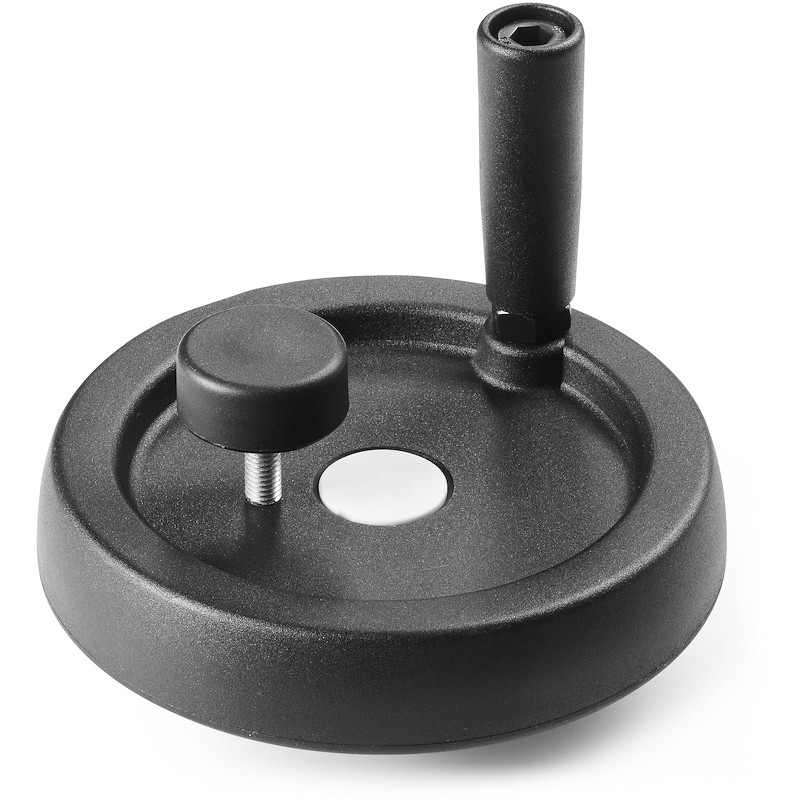

Handwheel with revolving handle

SOLID CONTROL HANDWHEEL WITH REVOLVING HANDLE AND LOCKING KNOB

Ver. 03V01-0124

Reinforced and stabilized polyamide. Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced and stabilized polyamide. Resistant to oils and greases.

    Surface finish:
    Satin.

    Handwheel and handle colour:
    Black (RAL 9011).

    Central cap:
    Grey polyamide (RAL 7035). 13).

    Main insert:
    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:
    Brass insert with threaded through hole.

    Lateral handle:
    Revolving handle art. M144 [pageFAM_M144-Codice.

    Locking knob:
    Black cylindrical knob Ral 9011 art. G793-36 with threaded stud [pageFAM_G793-Codice. Caution: the R and Q2 dimensions of the locking knob must be chosen by the customer according to the dimensions of the machinery on which the solid handwheel will be installed.

    Fixing method:
    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue [pageFAM_NT10-Codice.

    Special requests:
    On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish. Add the letters ZB to the standard code. Example: C970125.TD1001PZB.
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

Alternative products

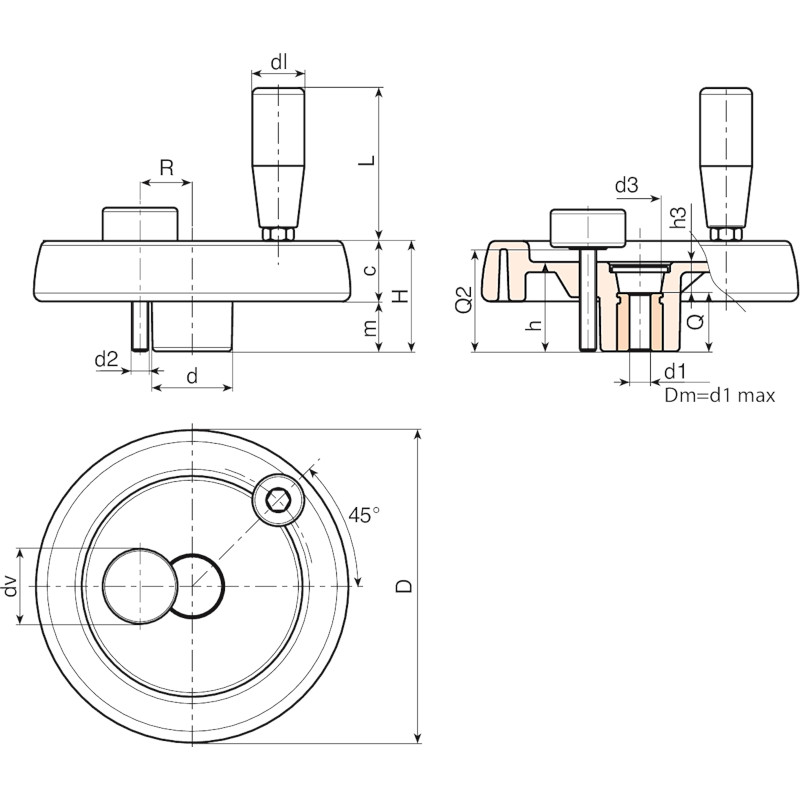

Codice Art. D H h d m c d3 h3 R d2 Q2 dl L Dm d1H10 Q 3D
C970100.0001 C970100.TP0501P 100.5 39 34 30.5 18 21 16.5 10 20 M6 A.R. 20 56 16 5 24 252
C970125.0006 C970125.TP0501P 125 44 37 36 20 24 26 13 22÷25 M6 A.R. 21 65 18 5 24 410
C970150.0001 C970150.TD0801P 150 54 44 38 25 29 26 12 25÷28 M8 A.R. 21 65 22 8 32 636
C970175.0002 C970175.TD0801P 173 57 47 40 25.5 31.5 26 15 26÷36 M8 A.R. 23 76 22 8 32 812
C970200.0001 C970200.TD0801P 204 69 49.5 45 24 35 26.5 13.5 28÷42 M8 A.R. 25 86 28 8 36 1040
C970250.0001 C970250.TD0801P 249 68 58 59 29 39 36 22 36÷50 M8 A.R. 25 86 28 8 36 1590

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
dv = 36 mm. A.R. = On request.
