CBASE

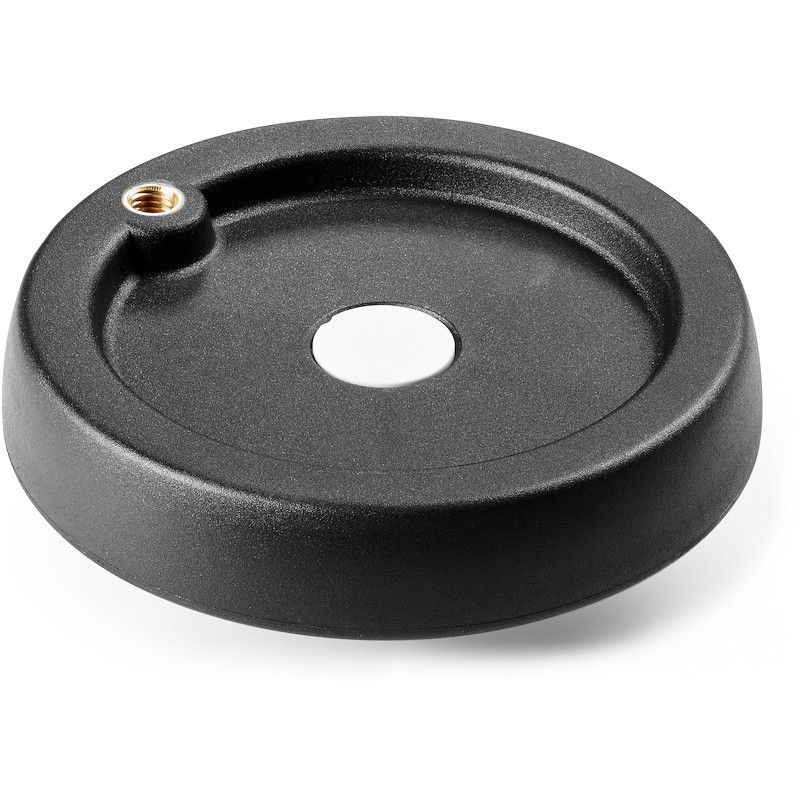

Handwheel with revolving handle

BASE FOR SOLID CONTROL HANDWHEEL WITH PROVISION FOR SIDE HANDLE

Ver. 03V01-0124

Reinforced and stabilized polyamide.
Resistant to oils and greases.

Satin.

Alternative products

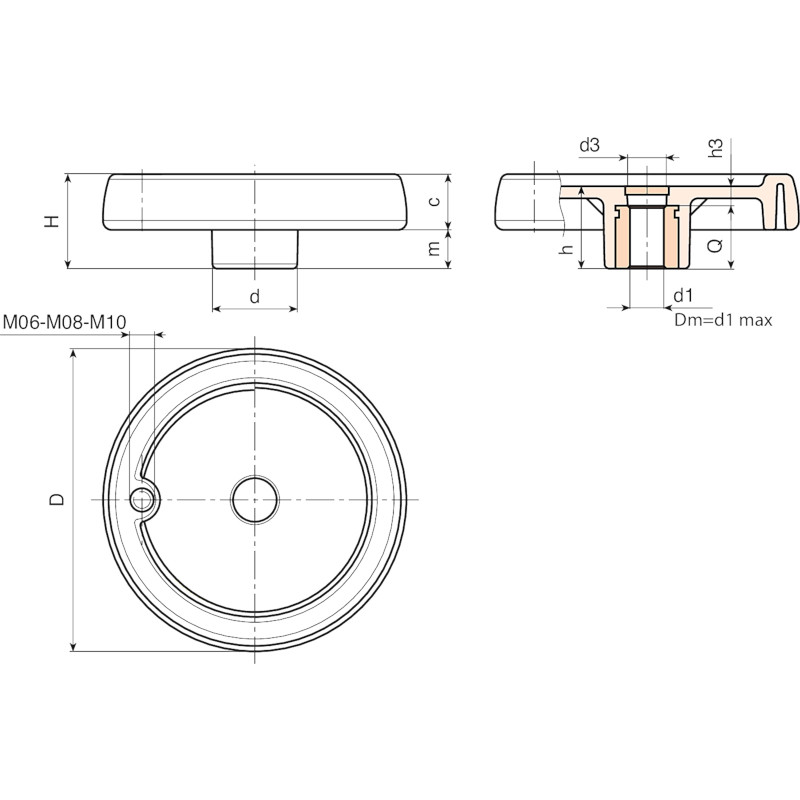

Codice Art. D H h d m c d3 h3 Dm d1H10 Foro
C080.TP0501PZ1 C080.TP0501PZ1 81 33 29 25 16 17 16 9 12 5 100 M6
C100.TP0501PZ1 C100.TP0501PZ1 100.5 39 34 30.5 18 21 16.5 10 16 5 190 M6
C125.TP0501PZ1 C125.TP0501PZ1 125 44 37 36 20 24 26 13 18 5 290 M8
C150.TD0801PZ1 C150.TD0801PZ1 150 54 44 38 25 29 26 12 22 8 520 M10
C175.TD0801PZ1 C175.TD0801PZ1 173 57 47 40 25.5 31.5 26 15 22 8 660 M10
C200.TD0801PZ1 C200.TD0801PZ1 204 61 49.5 45 26 35 26.5 13.5 28 8 870 M10
C250.TD0801PZ1 C250.TD0801PZ1 251 66,5 56,5 60 27,5 39 36 20,5 28 8 1400 M10

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
