01

A150

Fixed levers

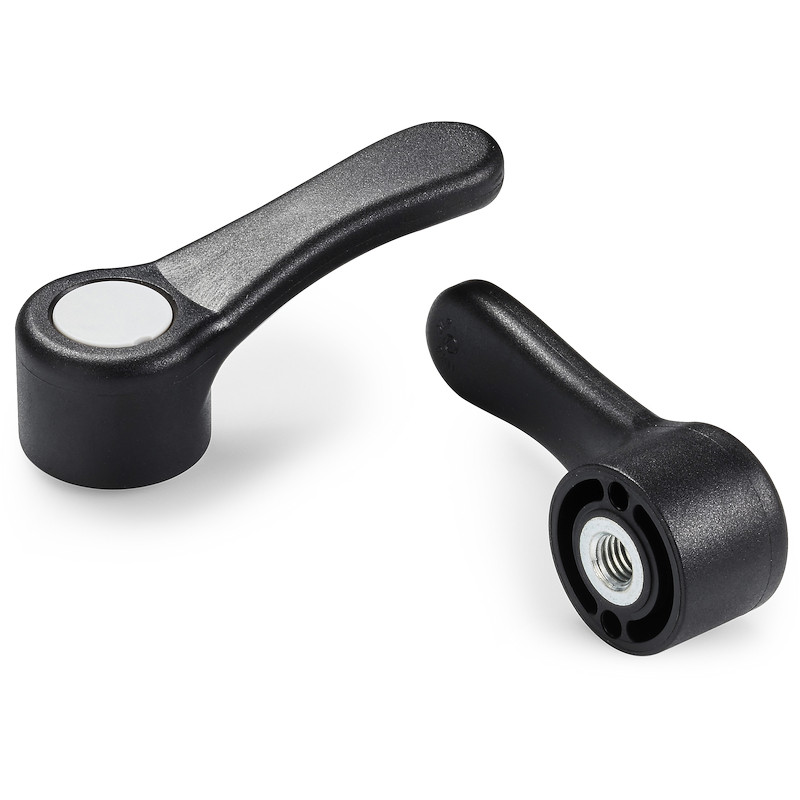

“EUROMODEL” FIXED LEVER WITH THREADED INSERT

Ver. 01V01-0124

Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Special technopolymer reinforced with high-strength glass fiber.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Central cap:
    Central cap in grey polyamide (RAL 7035).

    Inserts:
    Galvanised steel insert with threaded through hole (thread tolerance 6H).

    Alternative cap colours:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Red (RAL 3000 code 16).
    Green (RAL 6024 code 17).
    Black (RAL 9011 code 01).

    Special requests:
    Upon request balls and fixing springs (galvanised steel).
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities inserts can be supplied with a different treatment.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

  • Material sheets

Alternative products
Codice Art. L R D H h h1 h2 h3 m I A B c d2 d3 d4 d16H Q 3D
A150068.0001 A150068.TM0601 84.5 68 33 37 25 27 11.5 9 12 24 20 17 10 20 16 4 M6 16 42
A150068.0002 A150068.TM0801 84.5 68 33 37 25 27 11.5 9 12 24 20 17 10 20 16 4 M8 16 40
A150068.0006 A150068.TM1001 84.5 68 33 37 25 27 11.5 9 12 24 20 17 10 20 16 4 M10 16 40
A150086.0001 A150086.TM0801 104 86 36 40 28 29 14 12 13 26 24 19 11 22 18 5 M8 16 72
A150086.0001 A150086.TM1001 104 86 36 40 28 29 14 12 13 26 24 19 11 22 18 5 M10 16 71
A150086.0005 A150086.TM1201 104 86 36 40 28 29 14 12 13 26 24 19 11 22 18 5 M12 16 70
A150112.0004 A150112.TM1201 134.5 112 45 47 36 35 14.5 12 16 32 30 24 13 26 23.5 6 M12 24 99
A150112.0010 A150112.TM1401 134.5 112 45 47 36 35 14.5 12 16 32 30 24 13 26 23.5 6 M14 24 98
A150112.0012 A150112.TM1601 134.5 112 45 47 36 35 14.5 12 16 32 30 24 13 26 23.5 6 M16 24 95
A150142.0001 A150142.TM1401 169.5 142 55 52 40 36 18 13 17.5 40 37 30 16 32 28 8 M14 27 240
A150142.0003 A150142.TM1601 169.5 142 55 52 40 36 18 13 17.5 40 37 30 16 32 28 8 M16 27 235
A150142.0005 A150142.TM1801 169.5 142 55 52 40 36 18 13 17.5 40 37 30 16 32 28 8 M18 27 230
