N245

Knurled control knobs

KNURLED CONTROL KNOB WITH THREADED STUD

Ver. 14V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Cap:
    Central cap in grey polyamide (RAL 7035).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Notes:
    (*) Side NFLAN flange fixing (optional).

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range) [pageTitoloTabellaColori.

  • Accessories

Alternative products

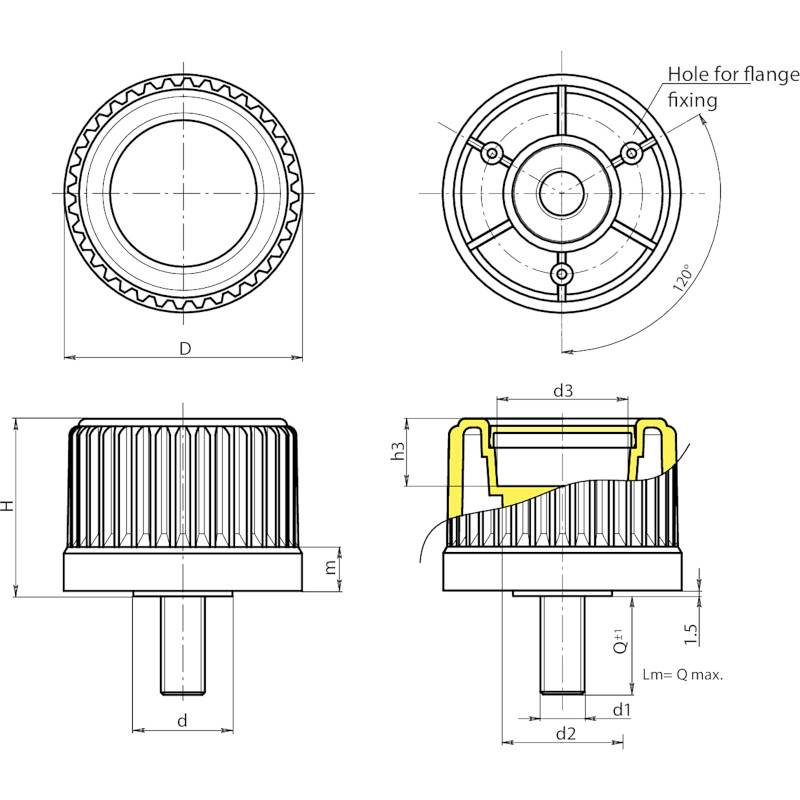

Codice Art. D H m d d2 d3 h3 LM d16g Q
N24530.0002 N24530.TM10X200113(*) 30 31,5 11,5 20 20 18 5,5 80 M10 20 40
N24543.0001 N24543.TM12X300113 43 37,5 11,5 22 27,5 23 13,5 90 M12 30 -
N24554.0001 N24554.TM12X300113 54 43.5 12 26 32 31 13,5 100 M12 30 -
N24565.0001 N24565.TM16X300113 65 48,5 12 27 32 36 18,5 120 M16 30 -
N24578.0001 N24578.TM16X300113 78 55,5 12,5 31 36 50 23,5 120 M16 30 -

LM = maximum mouldable length.
Customised stud length available for a minimum of 200 pieces.
