16

P202

Feet with fixed stud

MOUNTING FOOT WITH FIXED THREADED STUD

Ver. 16V01-0124

High density polyethylene.

Satin.

  • Technical features

    Materials:
    High density polyethylene.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths (minimum quantity 10,000).

Alternative products

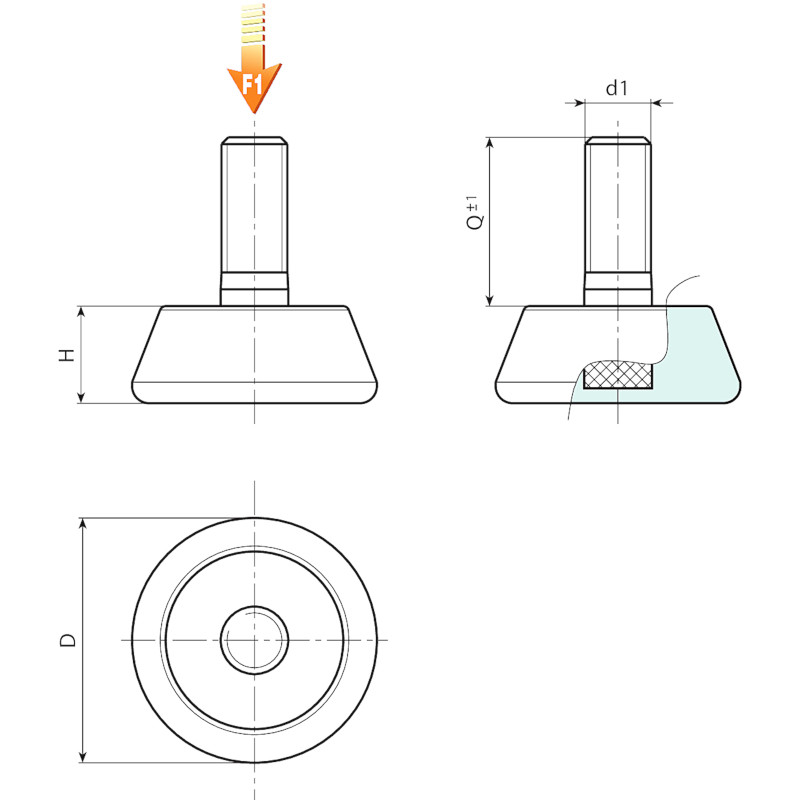

Codice Art. D H d16g Q F1 (N) 3D
P20230.0001 P20230.TM08X2001 29 11.5 M8 20 17 1000
P20230.0002 P20230.TM10X2001 29 11.5 M10 20 20 1000
P20240.0001 P20240.TM08X2501 40 13.5 M8 25 29 1000
P20240.0002 P20240.TM10X2501 40 13.5 M10 25 33 1000
P20250.0001 P20250.TM10X3501 48.5 16.5 M10 35 54 1000
P20250.0002 P20250.TM12X3501 48.5 16.5 M12 35 65 1000
P20260.0001 P20260.TM10X3701 60 18,5 M10 37 78 1000
P20260.0002 P20260.TM12X3701 60 18,5 M12 37 80 1000

Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
