07

G795

Knobs

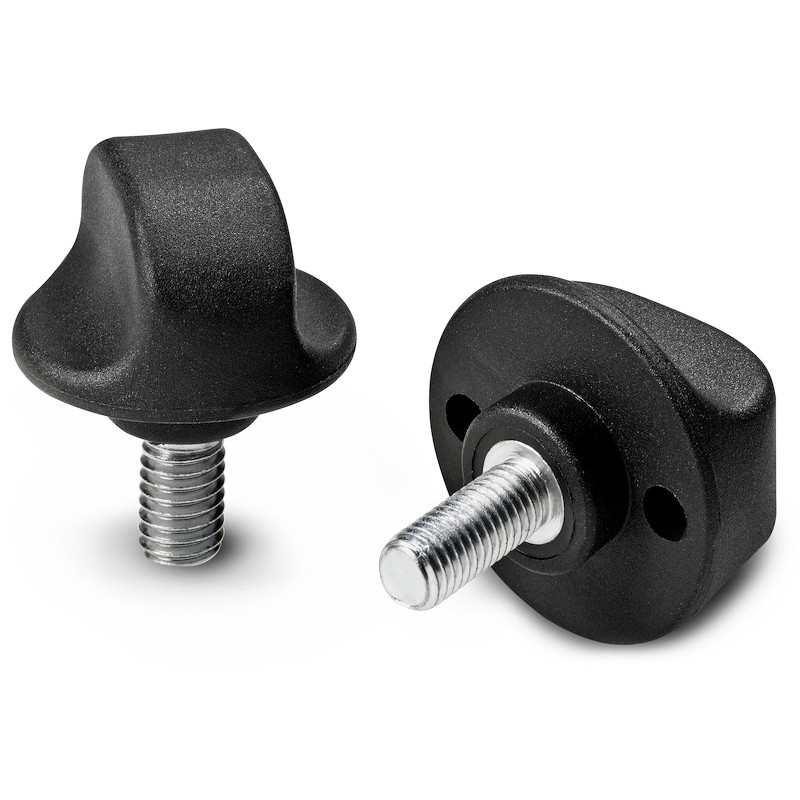

KNOB WITH THREADED STUD

Ver. 07V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded stud (thread tolerance 6g).

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

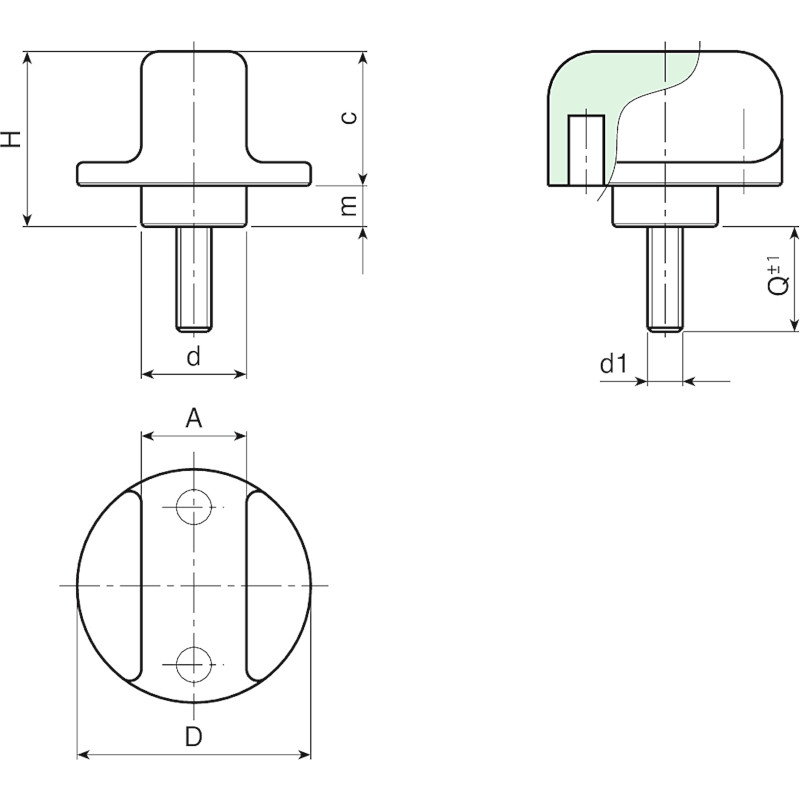

Codice art. D H d A c m LM d16g Q
G79525.0006 G79525.TM05X1601 25 20 12 10 15 5 40 M5 16 12
G79525.0022 G79525.TM06X3001 25 20 12 10 15 5 40 M6 30 14
G79525.0031 G79525.TM08X2001 25 20 12 10 15 5 40 M8 20 25
G79540.0014 G79540.TM08X3001 40 30 18 18 22 7 50 M8 30 40
G79540.0024 G79540.TM10X3001 40 30 18 18 22 7 50 M10 30 43
G79540.0032 G79540.TM12X4001 40 30 18 18 22 7 50 M12 40 67

Customised stud lengths available for a minimum of 150 pieces.
LM = Maximum mouldable length.
