G630

4 lobe handwheels

4 LOBE HANDWHEEL WITH INDEXED INSERT (PUSH TO USE) AND THREADED INSERT

Ver. 07V01-0124

(3-4) Special high resistance glass fiber reinforced technopolymer.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    (3-4) Special high resistance glass fiber reinforced technopolymer.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    (3-4) Black. (RAL 9011).

    Central fixing button:
    (1) Red polyamide button (RAL 3000 code 16).

    Alternative handwheel and button colour:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Red (RAL 3000 code 16).
    Green (RAL 6024 code 17).
    Grey (RAL 7035 cod. 13).
    Black (RAL 9001 code 01).

    Inserts:
    Brass insert with female threaded hole (thread tolerance 6H).

    Spring:
    Stainless steel spring (Aisi 302).

    Special requests:
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

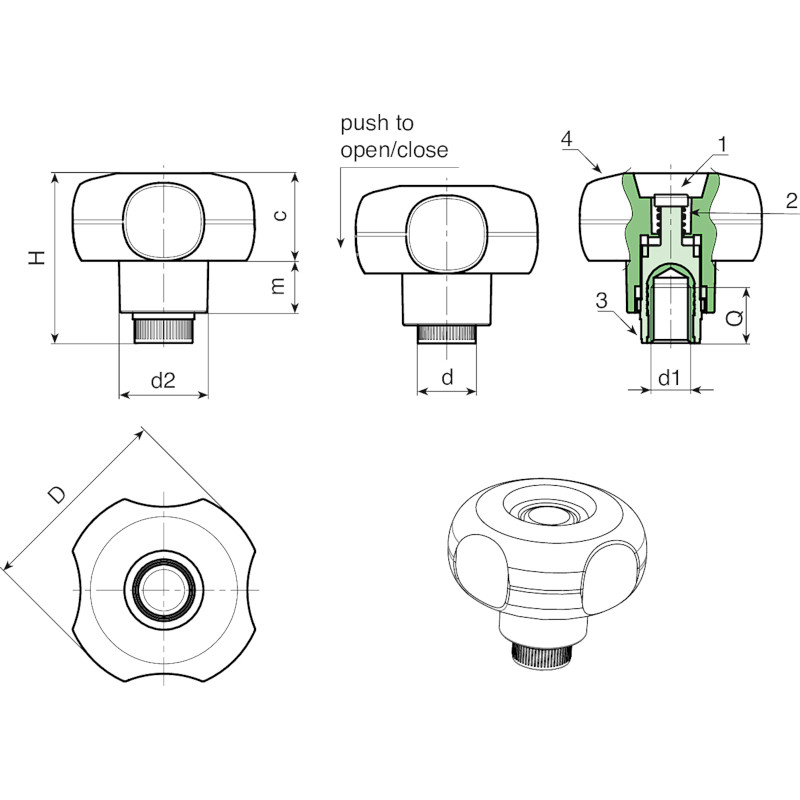

Codice art. D H d2 d m c d16H Q
G63050.0001 G63050.TM060116 49 42.5 22 15 13 22 M6 14 37
G63050.0004 G63050.TM080116 49 42.5 22 15 13 22 M8 14 37
G63050.0006 G63050.TM100116 49 42.5 22 15 13 22 M10 14 38
