07

G745

4 lobe handwheels

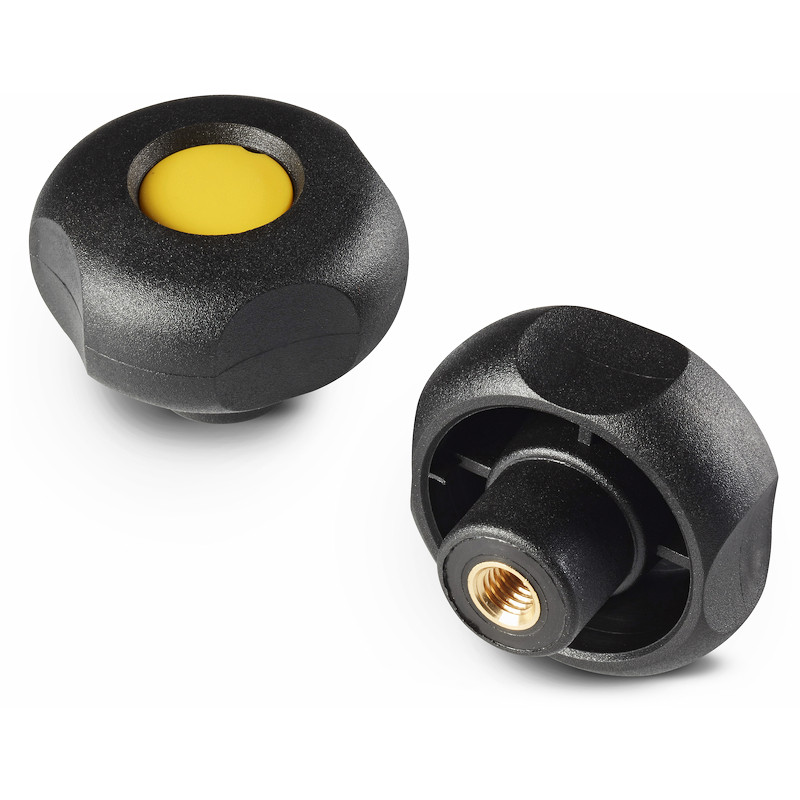

4-LOBE HANDWHEEL WITH CAP WITH THREADED FEMALE INSERT

Ver. 07V01-0124

4-LOBE HANDWHEEL WITH CAP WITH THREADED FEMALE INSERT

G745 - 4-LOBE HANDWHEEL WITH CAP WITH THREADED FEMALE INSERT

Reinforced polyamide. Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide. Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Central cap:
    Grey polyamide (RAL 7035). 13).

    Alternative cap colours:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Green (RAL 6024 code 17).
    Red (RAL 3000 code 16).
    Black (RAL 9011 code 01).

    Inserts:
    Brass insert with female threaded hole (thread tolerance 6H).

    Special requests:
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

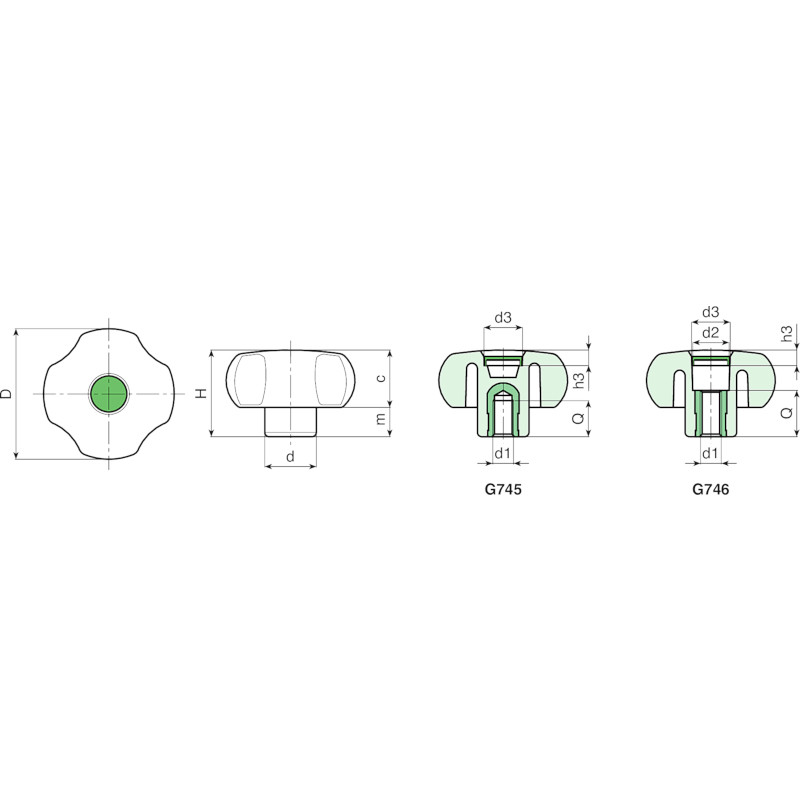

Codice art. D H d c m d3 h3 d16H Q
G74540.0001 G74540.TM0501 40.5 29.5 17 18.5 11 20 7.5 M5 13 18
G74540.0002 G74540.TM0601 40.5 29.5 17 18.5 11 20 7.5 M6 10 18
G74540.0004 G74540.TM0801 40.5 29.5 17 18.5 11 20 7.5 M8 14 19
G74540.0005 G74540.TM1001 40.5 29.5 17 18.5 11 20 7.5 M10 13 23
G74540.0006 G74540.TM1201 40.5 29.5 17 18.5 11 20 7.5 M12 11 27
G74550.0001 G74550.TM0601 49 32 20.5 21.5 11 20 7.5 M6 10 32
G74550.0002 G74550.TM0801 49 32 20.5 21.5 11 20 7.5 M8 14 39
G74550.0006 G74550.TM1001 49 32 20.5 21.5 11 20 7.5 M10 13 40
G74550.0007 G74550.TM1201 49 32 20.5 21.5 11 20 7.5 M12 17 44
G74560.0001 G74560.TM0801 59 40 23 25 15 22 7.5 M8 15 55
G74560.0003 G74560.TM1001 59 40 23 25 15 22 7.5 M10 14 57
G74560.0004 G74560.TM1201 59 40 23 25 15 22 7.5 M12 18 62
G74560.0011 G74560.TM1401 59 40 23 25 15 22 7.5 M14 19 65
