J300

Plastic closures

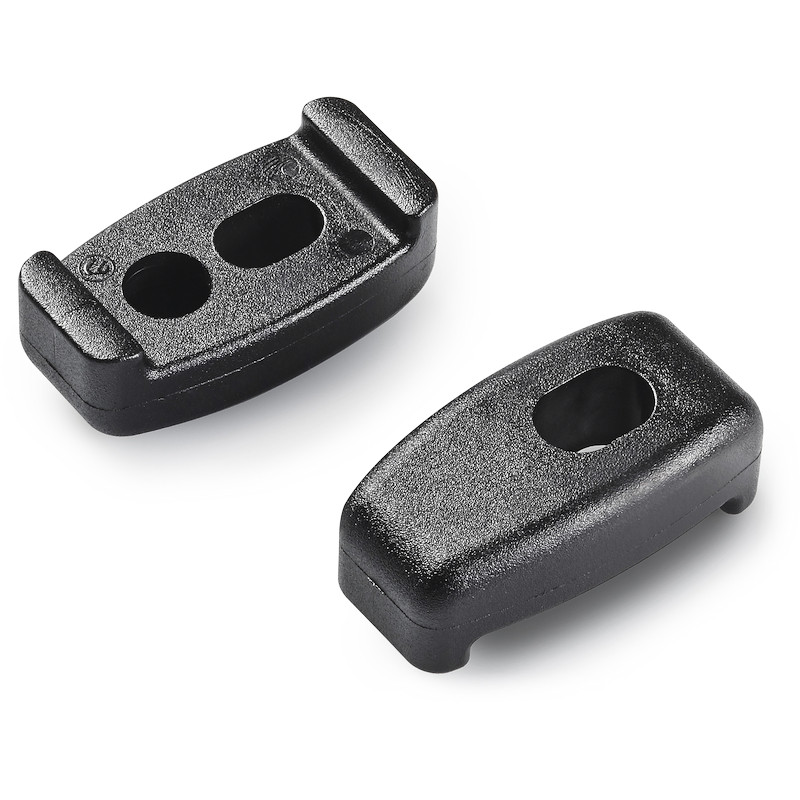

LOCKING BRACKET WITH THROUGH HOLE

Ver. 10V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Hole
    Smooth through hole obtained by moulding the plastic.

    Special Requests:
    None.

  • Description

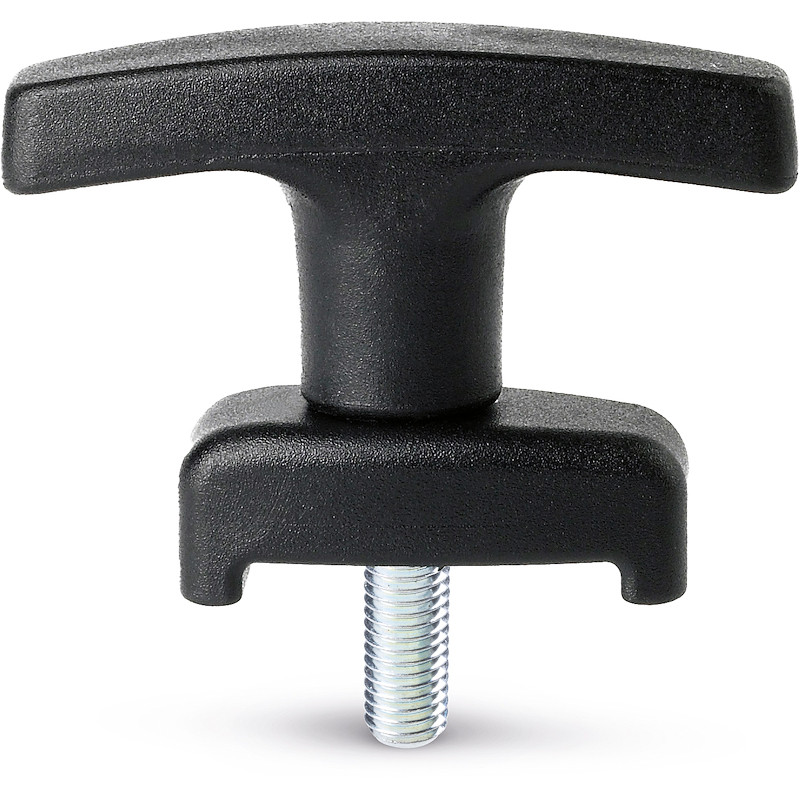

    The use of the J300 bracket must be combined with a knob with a threaded stud. An effective combination could be the one with T-handle art. L271. Used together they function as a quick locking and release system for panels of machinery in general. Particularly suitable for insulating panels of large external air conditioning chiller units.

  • Accessories

Alternative products

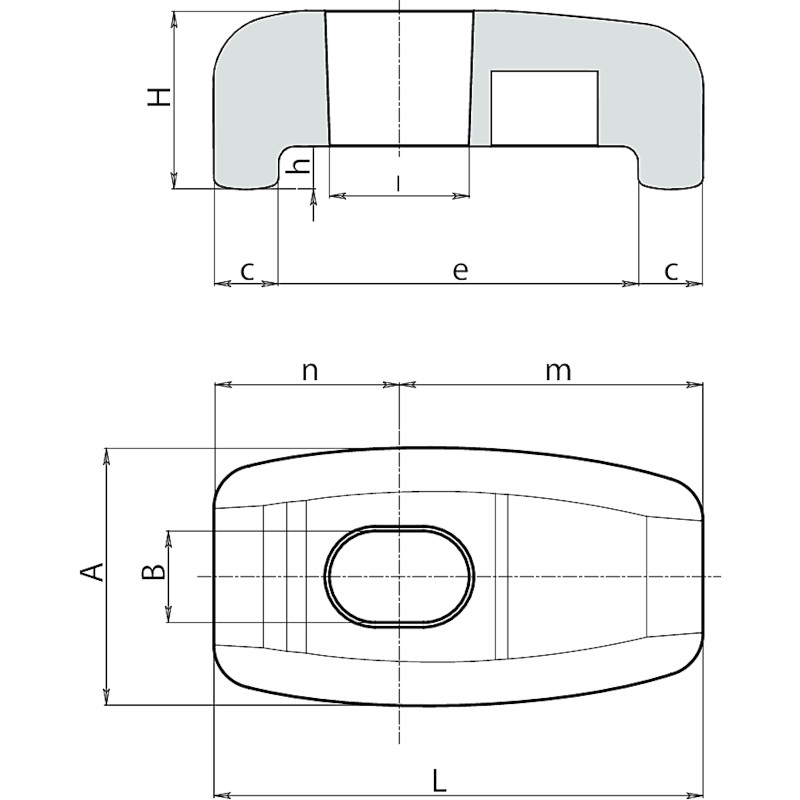

Codice Art. A L H B I c e h n m 3D
J30046.0001 J30046.TG08.501 24 45.5 16.5 8.5 13 6 33.5 4 17 28.5 15
J30068.0001 J30068.TG08.501 24 67.5 16.5 8.5 13 6 55.5 4 17.5 50 19
