T710

Accessories for woodworking machines

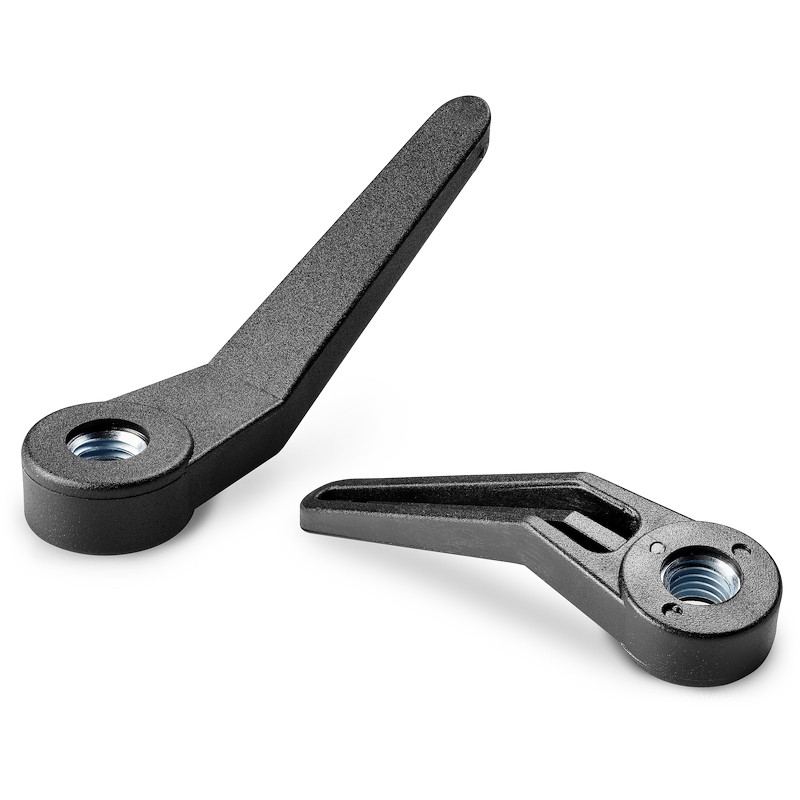

RING NUT WITH HANDLE

Ver. 01V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Inserts:
    Galvanised steel threaded through-hole insert (thread tolerance 6H).

    Special requests:
    Upon request and for special quantities inserts can be supplied in different materials.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

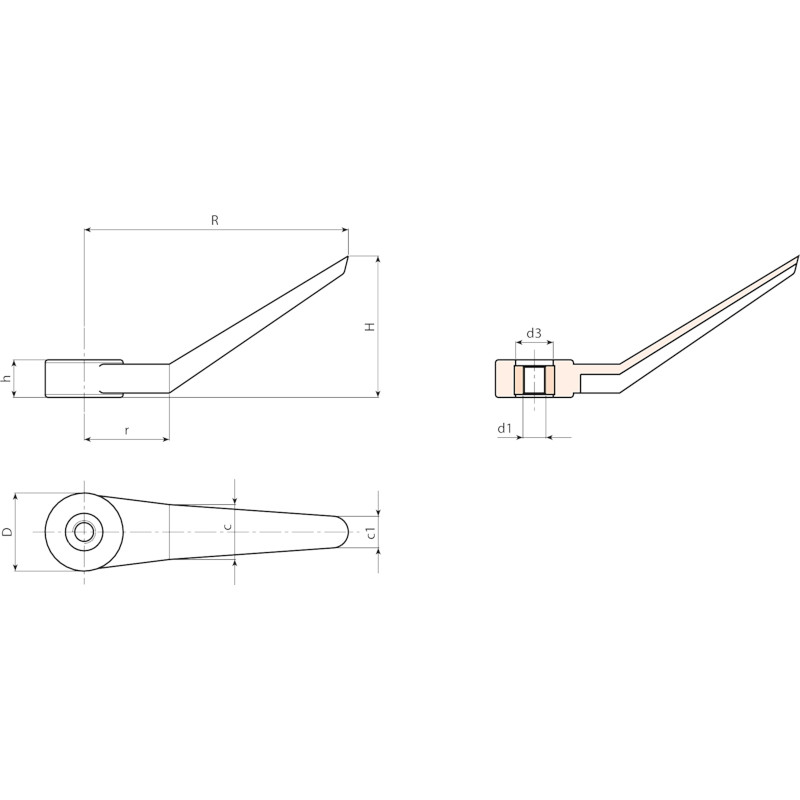

Codice Art. R D H h r c c1 d3 d1
T71090.0001 T71090.TM0801 90 27 48 14 29 19 12 13.5 M8 27
T71090.0002 T71090.TM1001 90 27 48 14 29 19 12 13.5 M10 26
T71090.0003 T71090.TM1201 90 27 48 14 29 19 12 13.5 M12 28
