05

E216

Crank handles with smooth bore

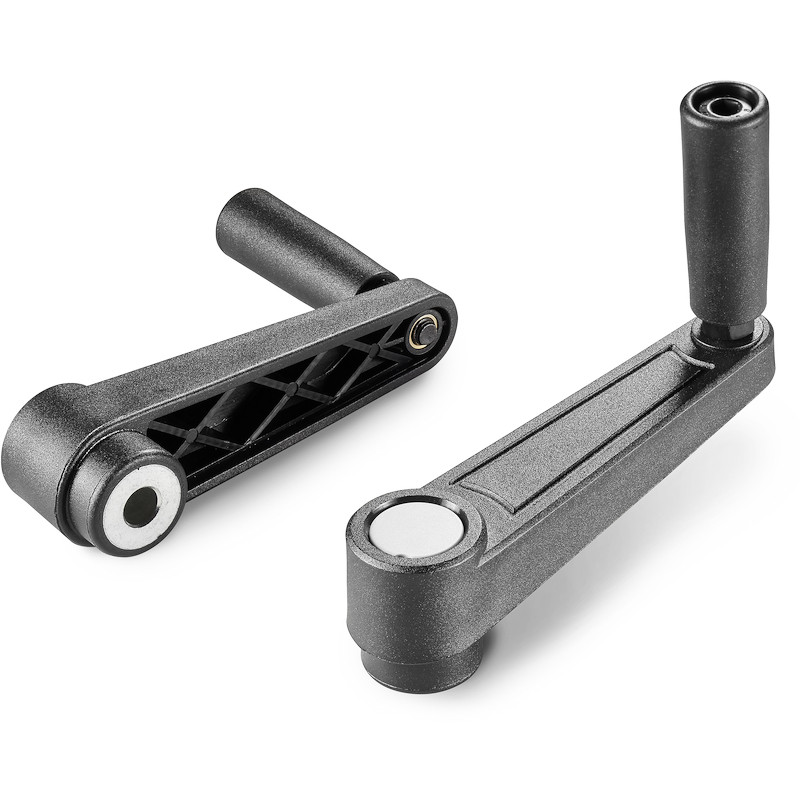

CRANK HANDLE WITH SMOOTH BORE INSERT AND REVOLVING HANDLE

Ver. 05V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Material:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Central cap:
    Grey polyamide (RAL 7035). 13).

    Alternative Cap colours:
    Orange (RAL 2004 code 02).
    Red (RAL 3000 code 16).
    Blue (RAL 5015 code 07).
    Green (RAL 6024 code 17).
    Yellow (RAL 1021 code 10).
    Black (RAL 9011 code 01).

    Inserts:
    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:
    Brass insert with threaded through hole.

    Lateral handle:
    Revolving handle art. M144 [pageFAM_M144.

    Special requests:
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

Alternative products

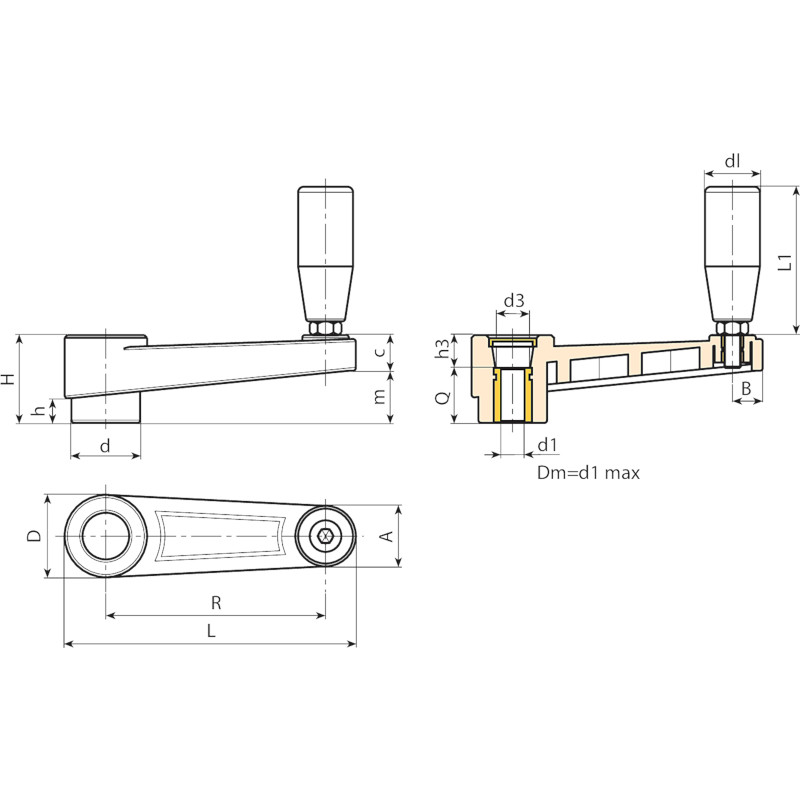

Codice Art. L R H D d m c A B h d3 h3 dm d1H10 Q dl L1 3D
E216065.0015 E216065.TP0501 88,5 65 30 27,5 22 17 13 20 9,5 8 14,5 10 12 20 19 54 96
E216065.0004 E216065.TD1001 88,5 65 30 27,5 22 17 13 20 9,5 8 14,5 10 12 10 20 19 54 92
E216065.0009 E216065.TD1201 88,5 65 30 27,5 22 17 13 20 9,5 8 14,5 10 12 12 20 19 54 89
E216080.0020 E216080.TP0501 107 80 33,5 32 26 20,5 13 23 11 9 19,5 9,5 14 24 19 54 110
E216080.0007 E216080.TD1001 107 80 33,5 32 26 20,5 13 23 11 9 19,5 9,5 14 10 24 19 54 105
E216080.0009 E216080.TD1201 107 80 33,5 32 26 20,5 13 23 11 9 19,5 9,5 14 12 24 19 54 102
E216110.0003 E216110.TD0801 140 110 39 35 29 25 14 24 12 11 19,5 11 14 8 28 21 66 160
E216110.0005 E216110.TD1001 140 110 39 35 29 25 14 24 12 11 19,5 11 14 10 28 21 66 152
E216110.0006 E216110.TD1201 140 110 39 35 29 25 14 24 12 11 19,5 11 14 12 28 21 66 148
E216140.0002 E216140.TD0801 175 140 49 44 35,5 32 17 27 13 15,5 24 19 20 30 23,5 76,5 250
E216140.0007 E216140.TD1201 175 140 49 44 35,5 32 17 27 13 15,5 24 19 20 12 30 23,5 76,5 242
E216140.0011 E216140.TD1401 175 140 49 44 35,5 32 17 27 13 15,5 24 19 20 14  30 23,5 76,5 238
E216140.0017 E216140.TD1601 175 140 49 44 35,5 32 17 27 13 15,5 24 19 20 16 30 23,5 76,5 232
E216185.0001 E216185.TD0801 223 185 55 47,5 40 38,5 16,5 27 14 17 29,5 21 22 34 25,5 87 430
E216185.0004 E216185.TD1201 223 185 55 47,5 40 38,5 16,5 27 14 17 29,5 21 22 12 34 25,5 87 400

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
