D602

Handwheels for mobile storage cabinets mounted on a trackway

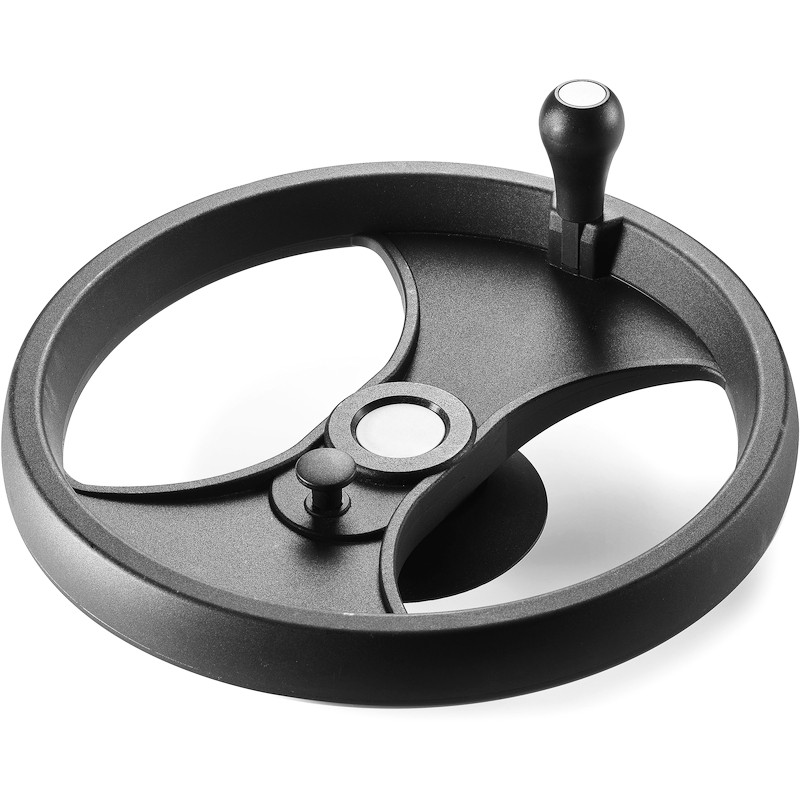

TWO-SPOKE HANDWHEEL WITH REVOLVING HANDLE AND LOCKING PISTON

Ver. 04V01-0124

Reinforced and stabilized polyamide. Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced and stabilized polyamide. Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Central cap:
    Grey polyamide (RAL 7035). 13).

    Alternative cap colours:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Red (RAL 3000 code 16).
    Green (RAL 6024 code 17).
    Black (RAL 9011 code 01).

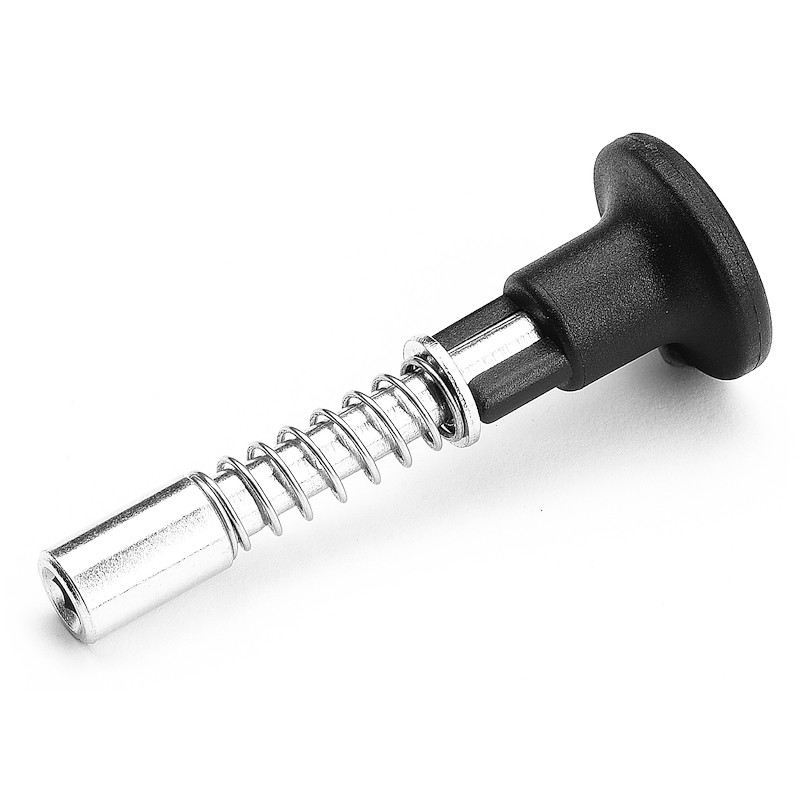

    Locking piston kit:
    (1) PA6+GF hole cover ring. Colour Black (RAL 9011). Push-fit assembly. Removable.
    (2) PA6+GF piston holder. Colour Black (RAL 9011). Assembly with two self-tapping, galvanised steel screws, screwdriver head 3.5x30.
    (3) PA6+GF gear stick d. 26 with positioning brackets. Colour Black (RAL 9011). With M04 brass female threaded insert.
    (5) PA6+GF gear stick support with positioner. Colour Black (RAL 9011).
    (6) Galvanised steel return spring.
    (7) Galvanised steel washer.

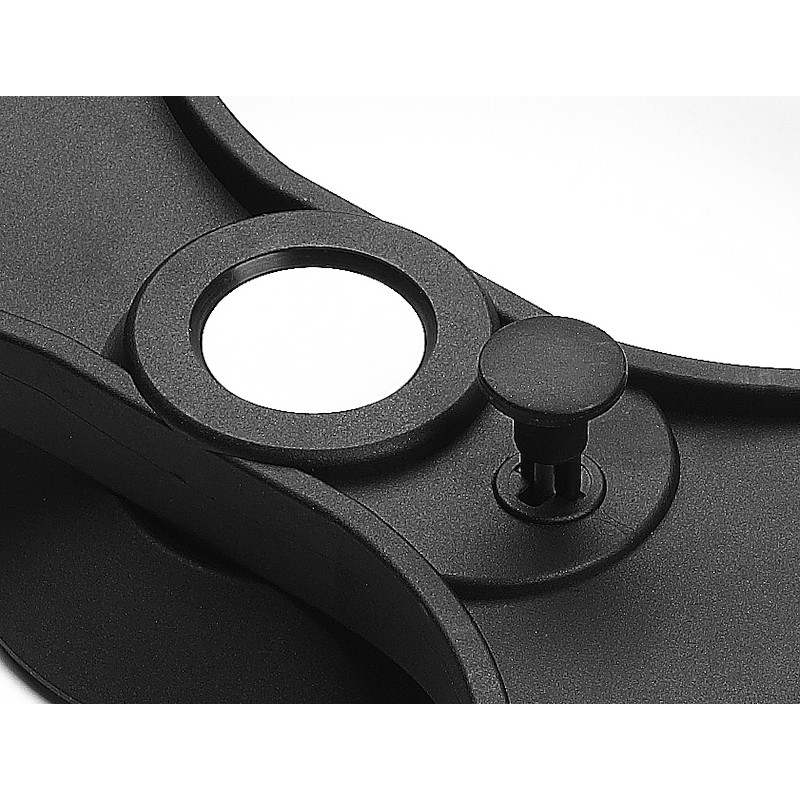

    (8) Galvanised steel locking piston. Seat for Allen wrench no. 5 for fastening. Piston stroke 10 mm. Useful projection from handwheel 8 mm.

    Inserts:
    Galvanised steel insert with smooth through bore (tolerance H10).
    (4) Black-oxide treated hexagon socket button head screw ISO 7838 for fastening handle.

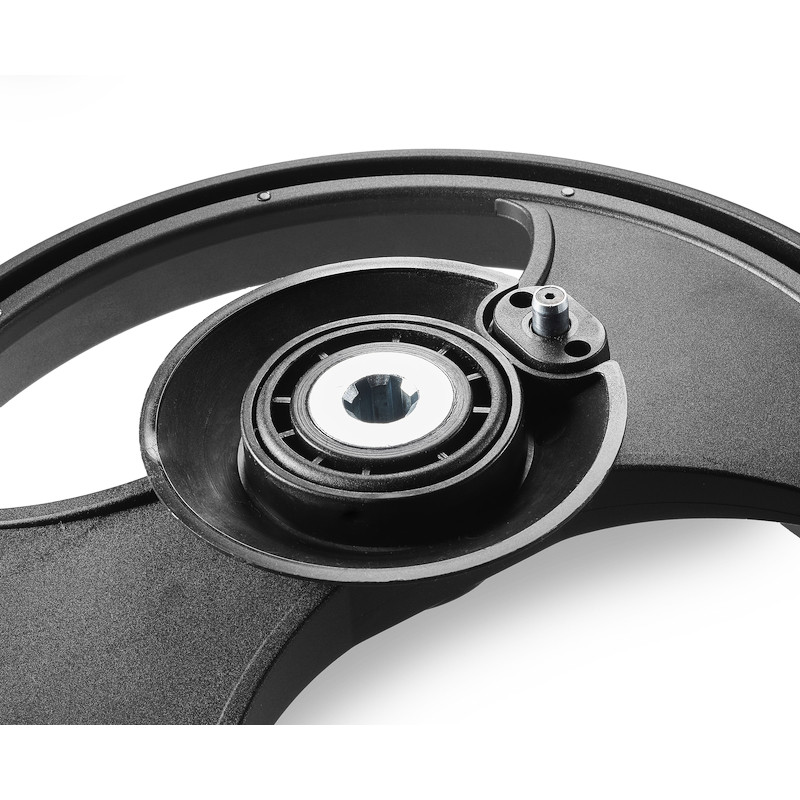

    (9) Hexagonal black-oxide treated steel insert with threaded through hole.

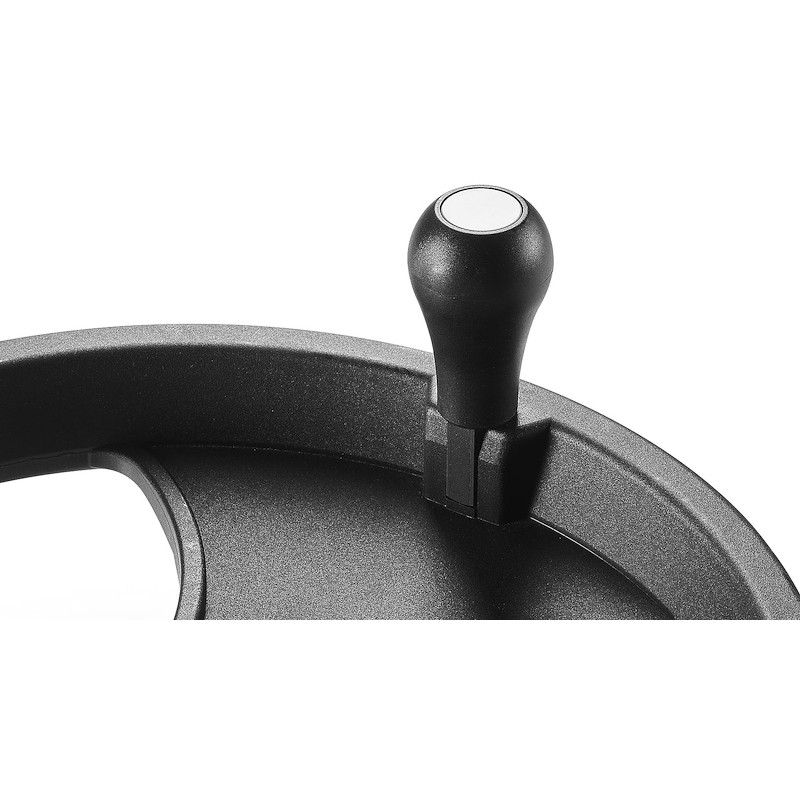

    Lateral handle:
    Revolving handle M202 “Euromodel”, black RAL 9011. Handle cap in grey polyamide (RAL 7035 code 13).

    Fixing method:
    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue [pageFAM_NT10-Codice.

    Special requests:
    Upon request and for a minimum of 50 pieces inserts can be supplied with hole d1 with tolerance H7 and black oxide treated finish. Add letters ZB to the standard code. Example: D602350.TD1001PZB.
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
    Upon request and for special quantities available in the colours indicated in the chart [pageTitoloTabellaColori.

  • Description

    This product type is a variation of our traditional handwheel D207-350. By simply adding a special assembly kit this product adapts to the requirements of a particular market: the mobile shelving market (mobile storage cabinets mounted on a trackway). This handwheel is used to move the shelving along the trackway. A fitted lock or locking piston serves to lock, stop, position the shelving units in certain positions.

  • Accessories

Alternative products

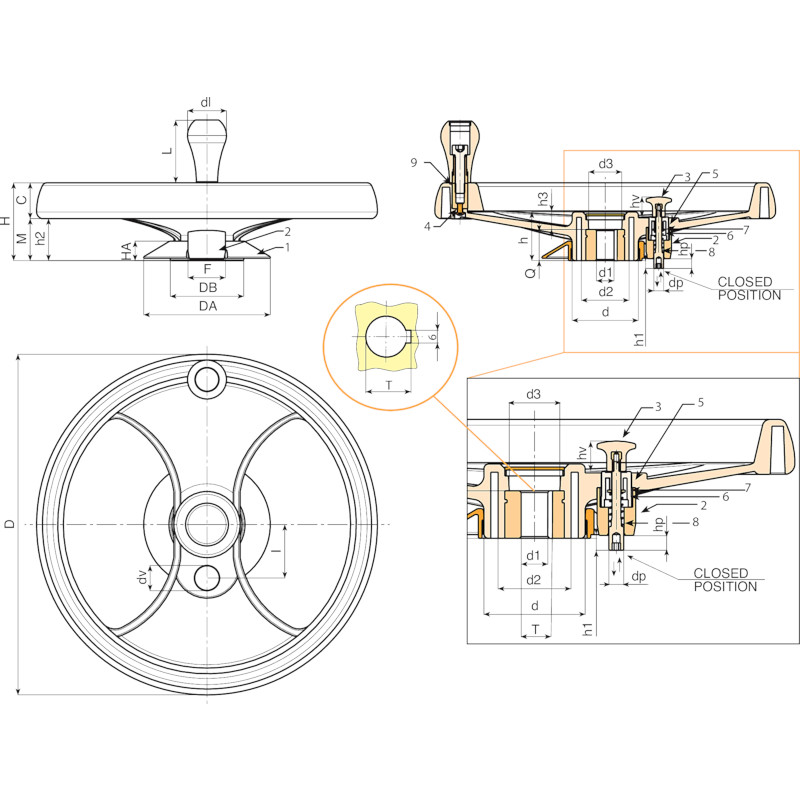

Codice Art. D H Ht h d M C h2 h3 d2 d3 Dm d1H10 Q I dv hv h1 dp hp DA HA DB F
D602350.0004 D602350.TD2001H 346 80 86 49.5 67.5 24 56 43.5 17.5 49 35 28 20 32 55 20 21 8 10 10 131 20 76 38 1800

Dm = Maximum obtainable diameter for subsequent machining. (widening)
A.R. = Upon request, for a minimum of 50 pieces.
