04

D214

Handwheels with arms

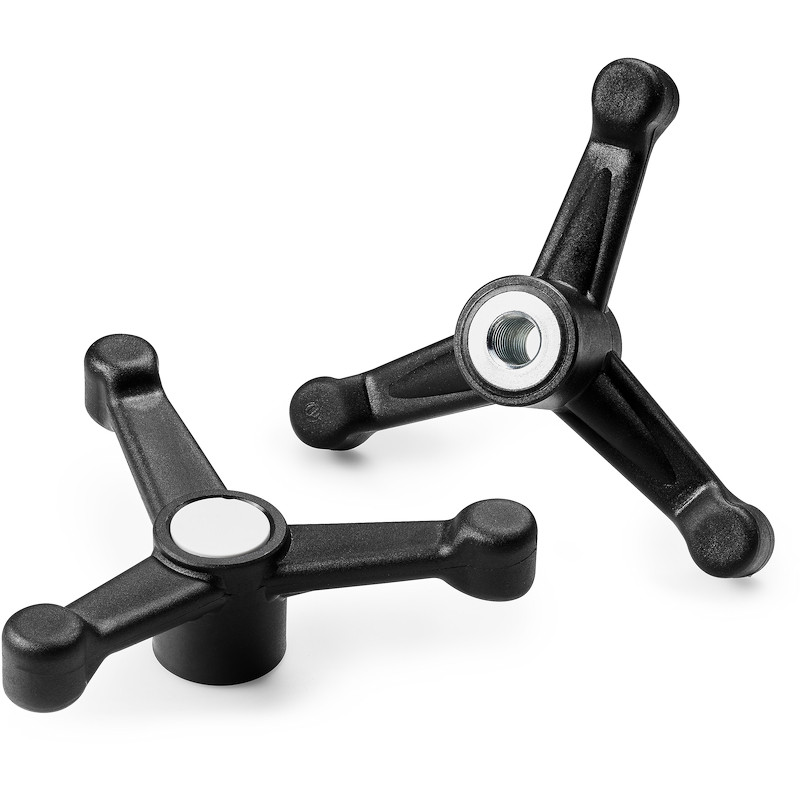

THREE-ARM CONTROL HANDWHEEL WITH SMOOTH OR THREADED HOLE

Ver. 04V01-0124

Reinforced and stabilized polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced and stabilized polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Central cap:
    Grey polyamide (RAL 7035). 13).

    Alternative cap colours:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Red (RAL 3000 code 16).
    Green (RAL 6024 code 17).
    Black (RAL 9011 code 01).

    Main insert:
    Version PON:
    Brass insert with threaded through hole (thread tolerance 6H).
    Version TM:
    Galvanised steel insert with threaded through hole (thread tolerance 6H).
    Version TD:
    Galvanised steel insert with smooth through bore (tolerance H10).

    Fixing method:
    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue [pageFAM_NT10-Codice.

    Special requests:
    On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
    Upon request and for special quantities the handwheel can be supplied in Orange (RAL 2004 Code 02).
    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

Alternative products
Version PON with brass insert with threaded through hole.

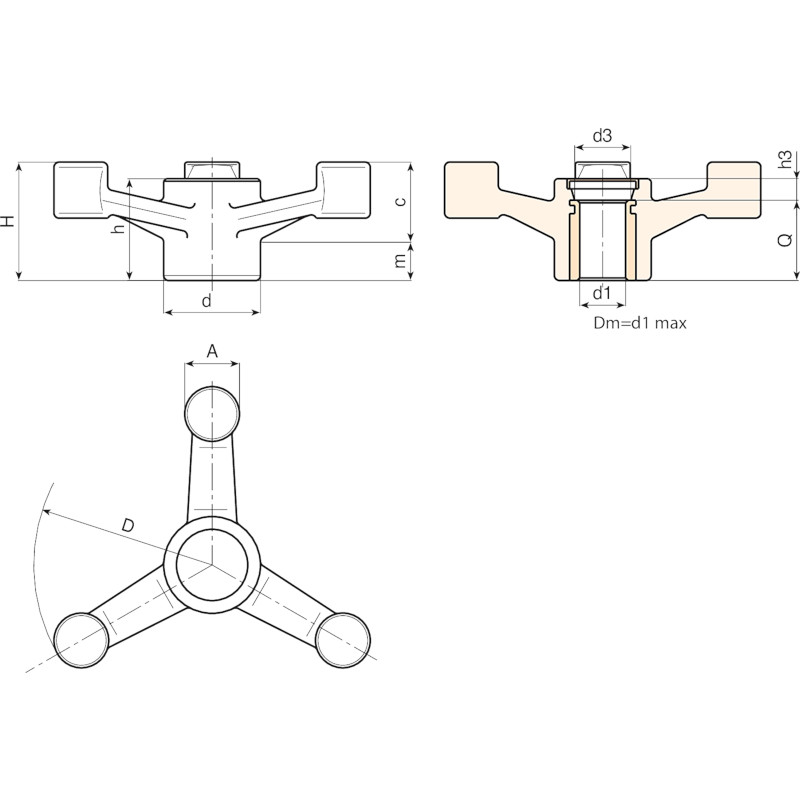

Codice Art. D H h d m c A h3 d3 d16H Q 3D
D214140.0020 D214140.TM1401PON 137 45 39.5 38 19 26 22 7.5 26 M14 32 127

Attention: for a minimum of 50 pieces the diameter d1 can be produced with the requested dimensions.

Version TM with galvanised steel insert and threaded through hole.
Codice Art. D H h d m c A h3 d3 d16H Q 3D
D214140.0019 D214140.TM1201P 137 45 39.5 38 19 26 22 7.5 26 M12 32 195
D214140.0021 D214140.TM1601P 137 45 39.5 38 19 26 22 7.5 26 M16 32 205
D214180.0015 D214180.TM1601P 177 56 42.5 38 20 35 23 10.5 26 M16 32 265
D214180.0017 D214180.TM1801P 177 56 42.5 38 20 35 23 10.5 26 M18 32 270
D214220.0013 D214220.TM1401P 221 61 46 38 22 39 25 14 26 M14 32 290
D214220.0014 D214220.TM1601P 221 61 46 38 22 39 25 14 26 M16 32 290
D214220.0018 D214220.TM1801P 221 61 46 38 22 39 25 14 26 M18 32 274

Attention: for a minimum of 50 pieces the diameter d1 can be produced with the requested dimensions.

Version TD with galvanised steel insert with smooth through bore (tolerance H10).
Codice Art. D H h d m c A h3 d3 Dm d1H10 Q 3D
D214140.0005 D214140.TD0801P 137 45 39.5 38 19 26 22 7.5 26 22 8 32 232
D214140.0006 D214140.TD1201P 137 45 39.5 38 19 26 22 7.5 26 22 12 32 220
D214180.0002 D214180.TD0801P 177 56 42.5 38 20 35 23 10.5 26 22 8 32 264
D214220.0003 D214220.TD0801P 221 61 46 38 22 39 25 14 26 22 8 32 338
D214220.0010 D214220.TD1801P 221 61 46 38 22 39 25 14 26 22 18 32 330

Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
