02

B326N

Solid bridge handles

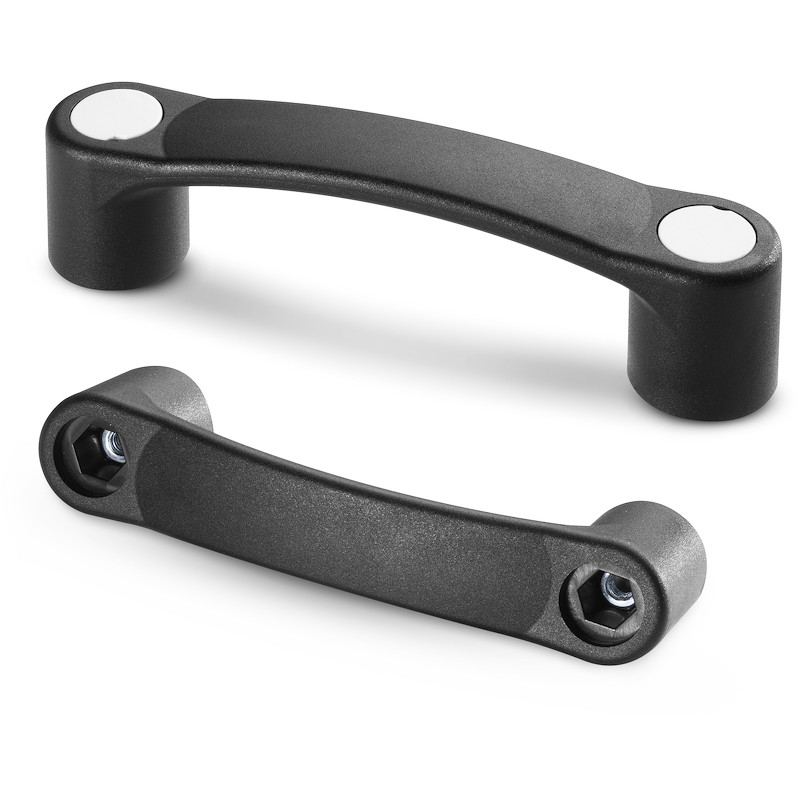

“EUROMODEL” HANDLE WITH THREADED NUT AND CAP

Ver. 02V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Standard cap:
    Grey polyamide cap (RAL 7035 code 13).

    Alternative cap colours:
    Orange (RAL 2004 code 02).
    Blue (RAL 5015 code 07).
    Yellow (RAL 1021 code 10).
    Red (RAL 3000 code 16).
    Green (RAL 6024 code 17).
    Black (RAL 9011 code 01).

    Inserts:
    Galvanised steel nut with threaded through hole DIN 934/UNI 5588.

    Special requests:
    On request the nut can be supplied in stainless steel (Aisi 304).

  • Material sheets

Alternative products

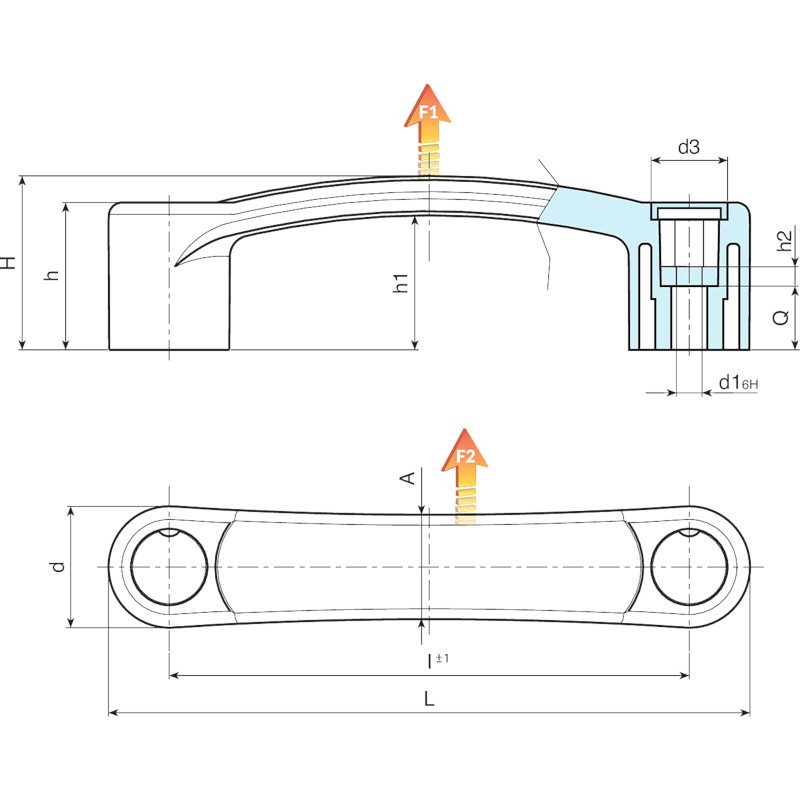

Codice art. L I ±1 H h h1 h2 A d d3 Q d16H F1 (N) F2 (N) 3D
B326117.0001 B326117.TM050113 145 117 40 34,5 31,5 4 24 28 18 14,5 M5 63 3400 2900
B326117.0006 B326117.TM060113 145 117 40 34,5 31,5 5 24 28 18 14,5 M6 63 3400 2900
B326117.0012 B326117.TM080113 145 117 40 34,5 31,5 6,5 24 28 18 14,5 M8 66 3400 2900
