W770

Standard pitch threaded plungers - without knob

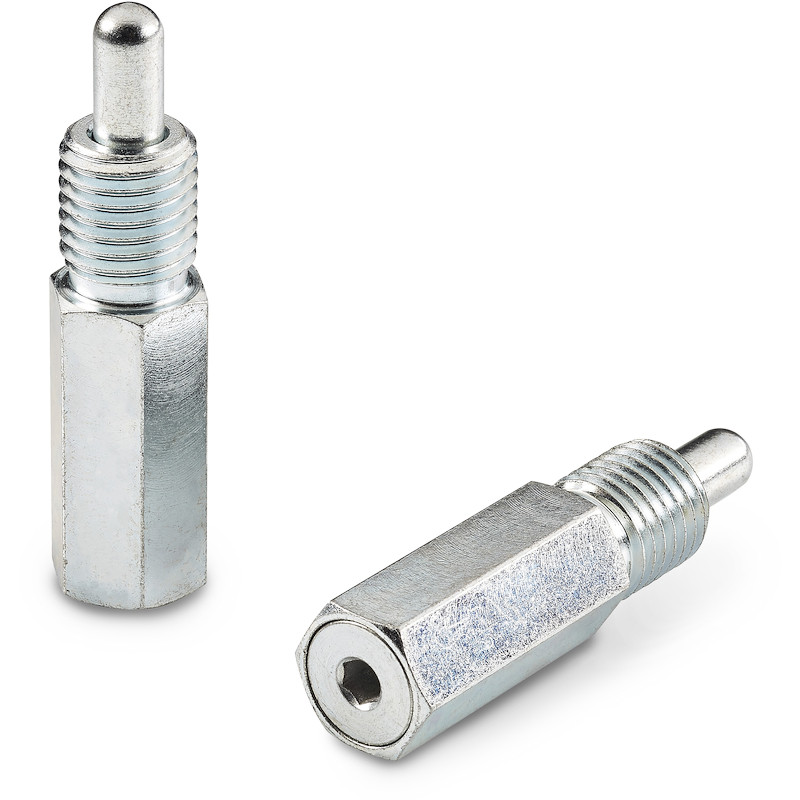

GALVANIZED STEEL HEXAGONAL PLUNGER WITH SMOOTH NOSE PIN

Ver. 21V01-0124

(2) Plunger body in free-cutting steel.
(4) Turned steel closing cap, with hexagonal key seat.

Smooth.

  • Technical features

    Materials:
    (2) Plunger body in free-cutting steel.
    (4) Turned steel closing cap, with hexagonal key seat.
    (1) Turned free-cutting steel nose pin.

    Surface finish:
    Smooth.

    Colour:
    Standard blue galvanising.

    Spring:
    (3) Stainless steel spring (Aisi 302).

    Special Requests:
    None.

    ATTENTION:
    > We recommend an H7 tolerance for the plunger stem bore.

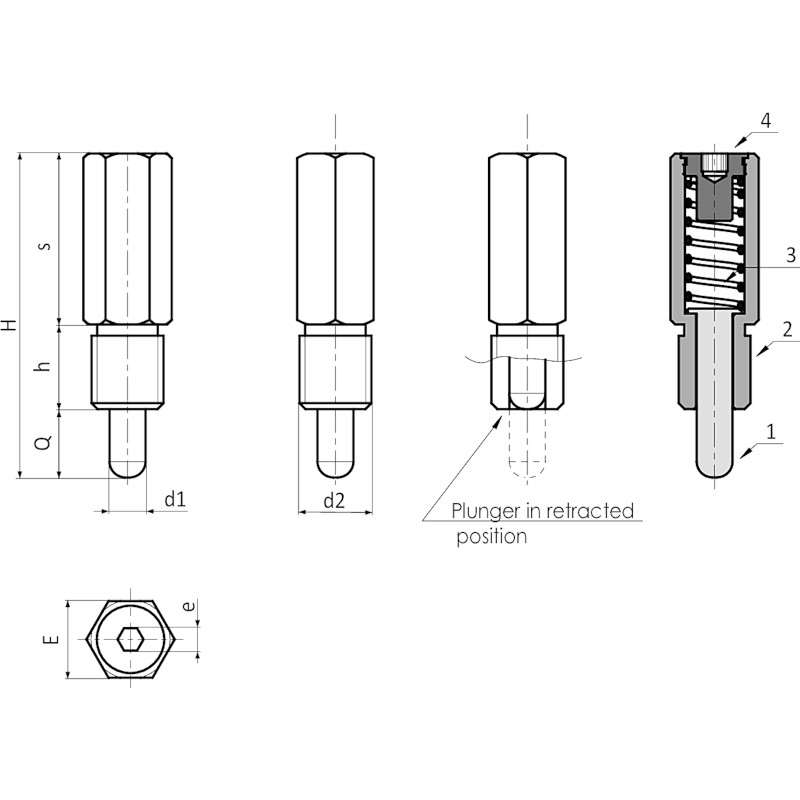

Codice Art. E H h s e d2 d1 -0,04 -0,08 Q 3D
W77017.0001 W77017.Q08X15 17 72 19 38 5 M16 08 15 72
