W118

Metalline - knobs

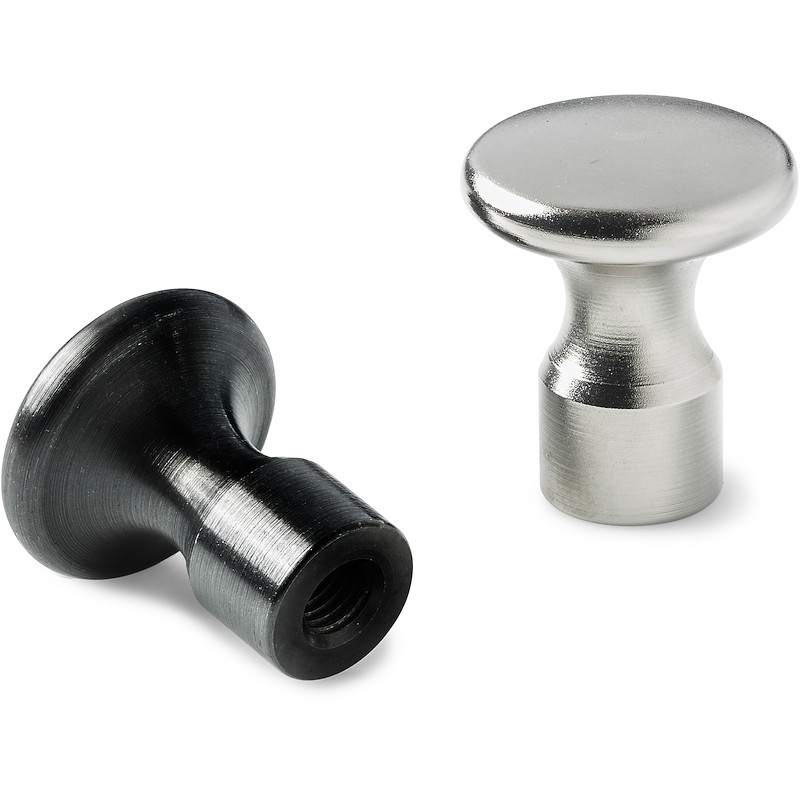

STEEL KNOB WITH THREADED HOLE

Ver. 09V01-0124

W118B-W118H:
Steel with strength class 5.8.

W118...H (nickel plated):
Turned and sandblasted.

  • Technical features

    Materials:
    W118B-W118H:
    Steel with strength class 5.8.
    W118CIN:
    Stainless steel (Aisi 303).

    Surface finish:
    W118...H (nickel plated):
    Turned and sandblasted.
    W118...B (black-oxide treated) and W118....CIN (stainless steel):
    Turned and polished.

    Colour:
    W118...B:
    Black-oxide treated.
    W118...H:
    Nickel-plated.
    W118...CIN:
    Natural.

    Hole:
    Female threaded hole machined from solid metal (thread tolerance 6H).

    Special requests:
    Upon request and for special quantities knobs can be supplied to customer’s drawing with hole diameter d1.

Alternative products
Version W118....H - Nickel plated

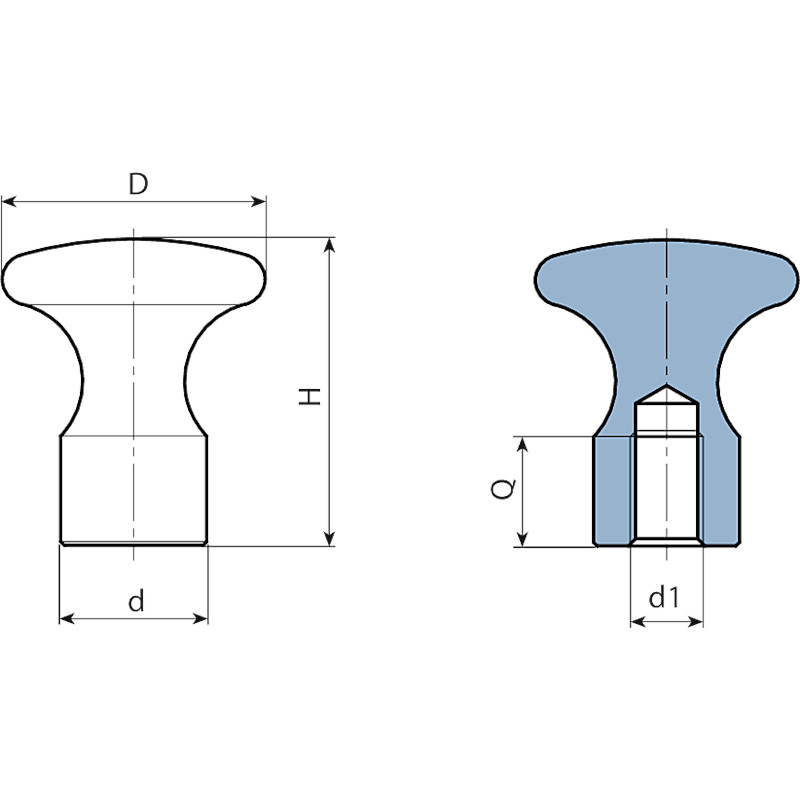

Codice art. d D H d16H Q
W11816.0003 W11816.SM05H 10 16 18 M5 7 -
W11820.0003 W11820.SM06H 12 20 24 M6 9 -
W11825.0003 W11825.SM06H 14 25 29 M6 9 -
W11832.0003 W11832.SM08H 18 32 37 M8 12 -
W11836.0003 W11836.SM10H 20 36 42 M10 15 -
Version W118....B - Black-oxide treated
Codice Art. d D H d16H Q
W11816.0002 W11816.SM05B 10 16 18 M5 7 -
W11820.0002 W11820.SM06B 12 20 24 M6 9 -
W11825.0002 W11825.SM06B 14 25 29 M6 9 -
W11832.0002 W11832.SM08B 18 32 37 M8 12 -
W11836.0002 W11836.SM10B 20 36 42 M10 15 -
Version W118....CIN - Stainless steel (Aisi 303)
Codice Art. d D H d16H Q
W11816.0001 W11816.IM05CIN 10 16 18 M5 7 -
W11820.0001 W11820.IM06CIN 12 20 24 M6 9 -
W11825.0001 W11825.IM06CIN 14 25 29 M6 9 -
W11832.0001 W11832.IM08CIN 18 32 37 M8 12 -
W11836.0001 W11836.IM10CIN 20 36 42 M10 15 -
