09

W319

Metalline - knobs

STAINLESS STEEL BALL DIN319 - C DESIGN

Ver. 09V01-0124

Stainless steel (Aisi 303).

W319CIN:
Turned with low roughness.

  • Technical features

    Materials:
    Stainless steel (Aisi 303).

    Surface finish:
    W319CIN:
    Turned with low roughness.
    W319CIB:
    Low surface roughness obtained by turning and galvanically treated (brightening, with resistance to salt spray between 200-300 hours).

    Colour:
    W319CIN:
    Natural.
    W319CIB:
    Brightened.

    Hole:
    Female threaded hole machined from solid metal (thread tolerance 6H).

    Special requests:
    Upon request and for special quantities inserts can be supplied to customer’s drawing with hole diameter d1.

Alternative products

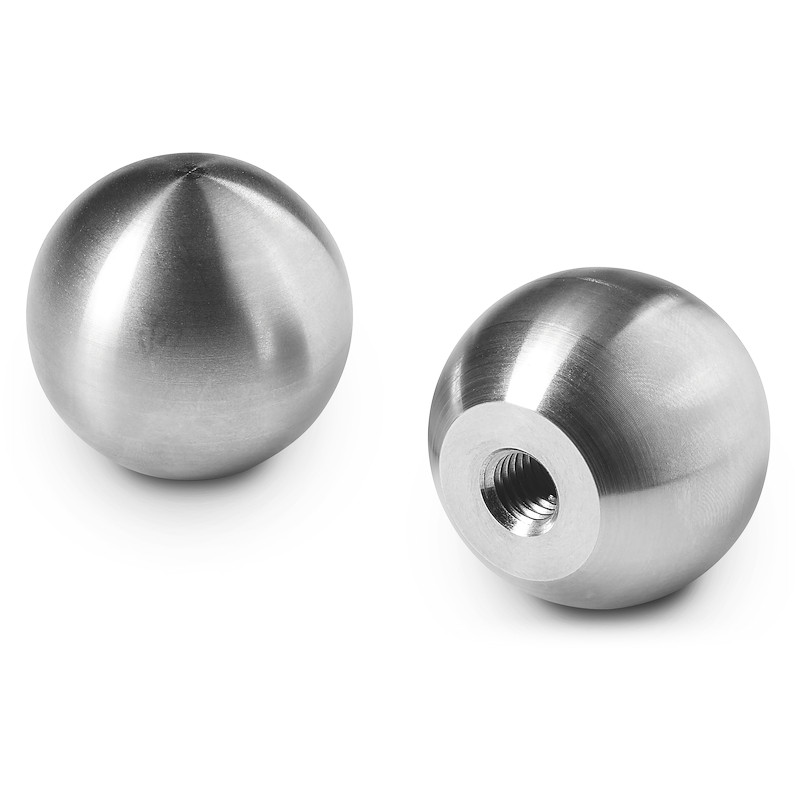

Version W319CIN - stainless steel (Aisi 303)

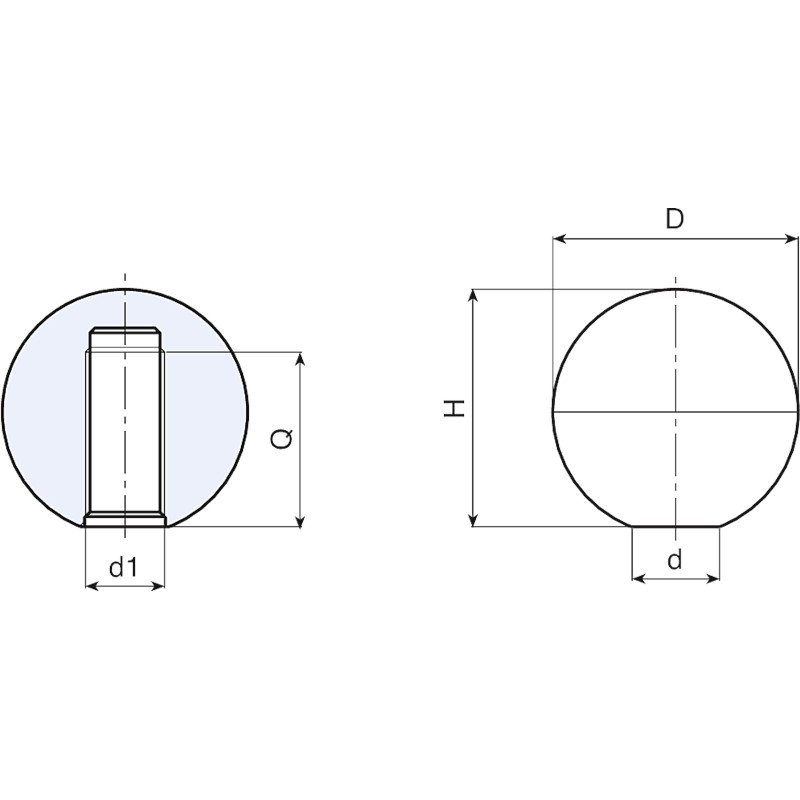

Codice Art. D d H d16H Q
W319016.0002 W319016.IM04CIN 16 8 15 M4 7 16
W319020.0002 W319020.IM05CIN 20 12 18 M5 9 30
W319025.0002 W319025.IM06CIN 25 15 22.5 M6 11 59
W319032.0002 W319032.IM08CIN 32 18 29 M8 14 123
W319040.0002 W319040.IM10CIN 40 22 37 M10 18 241

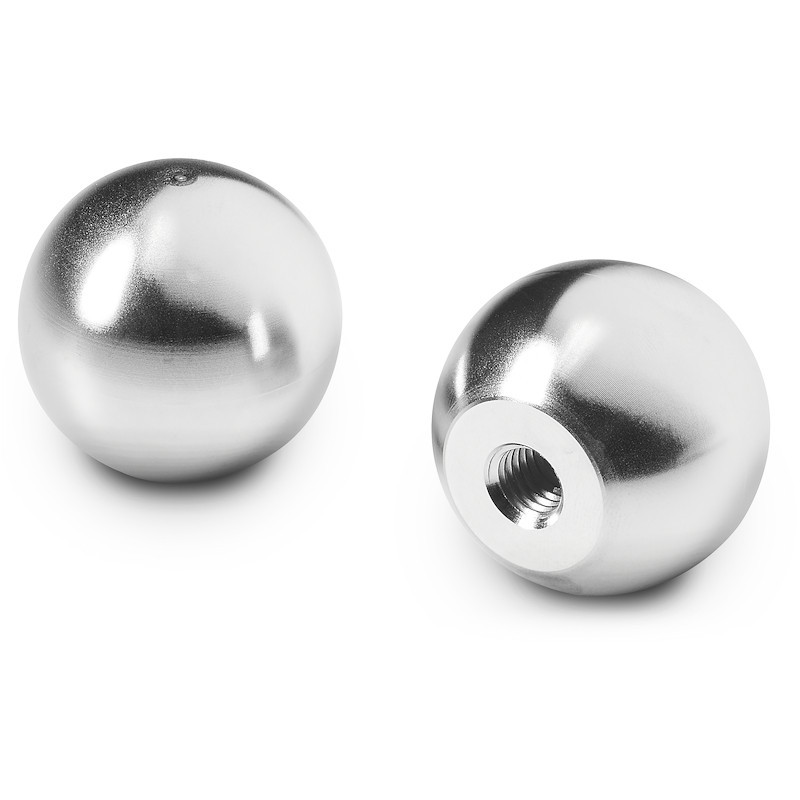

Version W319CIB - stainless steel (Aisi 303) - BRIGHTENED
Codice Art. D d H d16H Q
W319016.0001 W319016.IM04CIB 16 8 15 M4 7 16
W319020.0001 W319020.IM05CIB 20 12 18 M5 9 30
W319025.0001 W319025.IM06CIB 25 15 22.5 M6 11 59
W319032.0001 W319032.IM08CIB 32 18 29 M8 14 123
W319040.0001 W319040.IM10CIB 40 22 37 M10 18 241
