W464

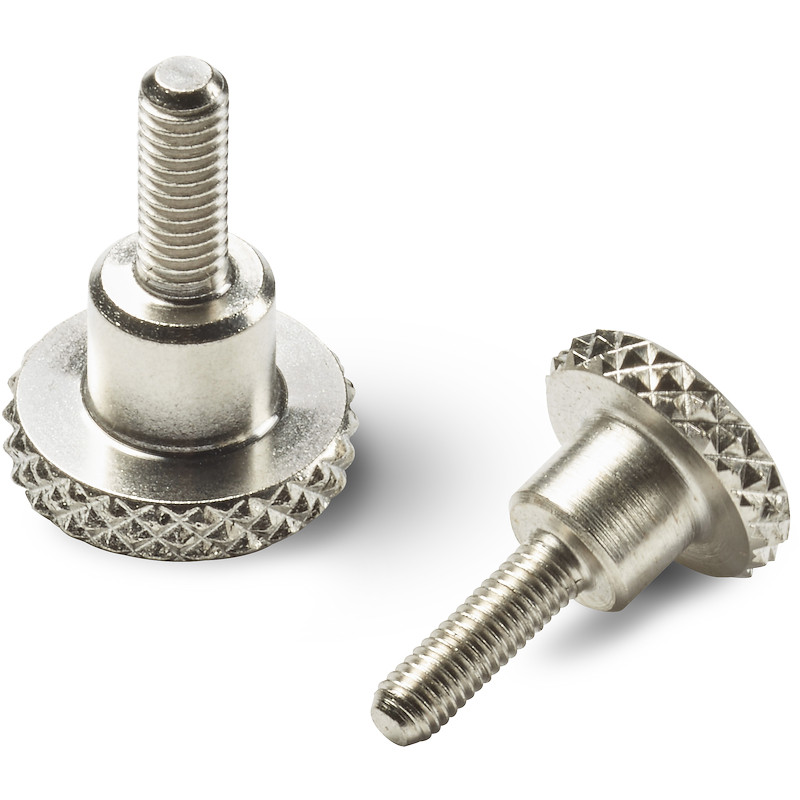

KNURLED METAL HANDWHEEL WITH THREADED STUD

Ver. 08V01-0124

W464:
Steel with strength class 5.8.

Turned with low roughness.

  • Technical features

    Materials:
    W464:
    Steel with strength class 5.8.
    W464CIN:
    Stainless steel (Aisi 303).

    Surface finish:
    Turned with low roughness.

    Colour:
    W464:
    Nickel plated (galvanic treatment).
    W464 CIN:
    Natural.

    Alternative finishes:
    Black-oxide treatment:
    (replace the final letter of the code (H) with letter B (W46429.SM08X..B).
    Galvanising:
    (replace the final letter of the code (H) with letter Z (W46429.SM08X..Z).

    Stud:
    Threaded stud machined from solid metal (thread tolerance 6g).

    Special requests:
    Upon request and for special quantities inserts can be supplied with customised lengths.

Alternative products
Version W464 - nickel-plated steel

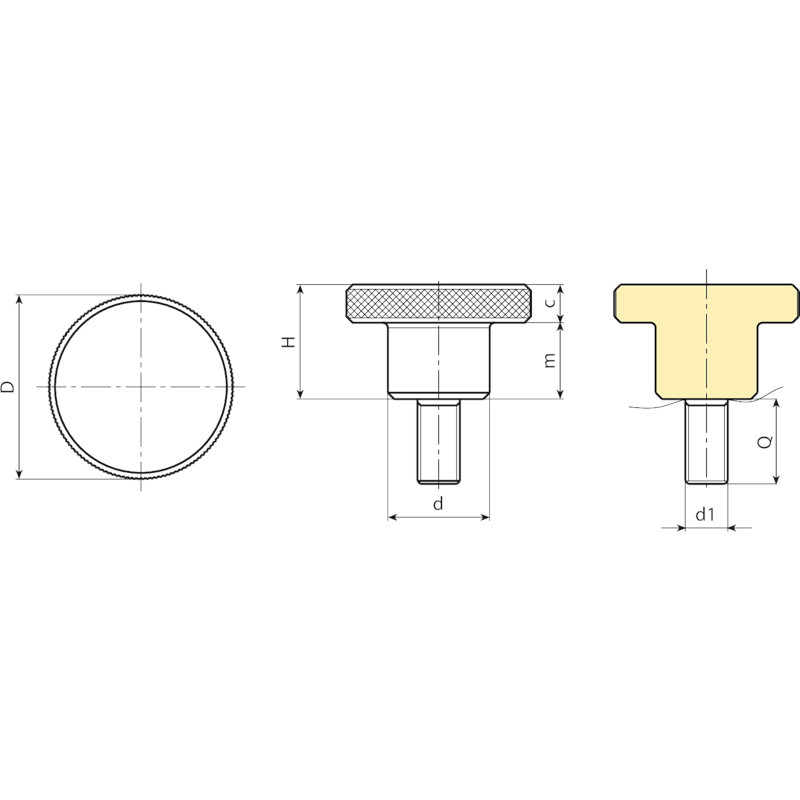

Codice Art. d D H m c Q Max d16g Q
W46411.0006 W46411.SM03X16H 6 11 8 5 3 16 M3 16 5
W46415.0002 W46415.SM04X10H 8 15 10 6 4 20 M4 10 7.8
W46419.0005 W46419.SM05X16H 10 19 12 8 4 20 M5 16 15,6
W46419.0009 W46419.SM05X30H 10 19 12 8 4 20 M5 30 17
W46423.0005 W46423.SM06X16H 12 23 15 10 5 30 M6 16 27,5
W46423.0010 W46423.SM06X35H 12 23 15 10 5 30 M6 35 30,5
W46429.0004 W46429.SM08X16H 16 29 18 12 6 40 M8 16 55
W46429.0007 W46429.SM08X30H 16 29 18 12 6 40 M8 30 59
W46435.0004 W46435.SM10X25H 20 35 23 15 8 40 M10 25 109.5

Customised stud length available for a minimum of 100 pieces.
Qmax = maximum turning length.

Version W464 CIN - stainless steel (Aisi 303)
Codice Art. d D H m c Q MAX d16g Q
W46423.0002 W46423.IM06X35CIN 12 23 15 10 5 30 M6 35 30.5

Customised stud length available for a minimum of 100 pieces.
Qmax = maximum turning length.
