W466

Metalline - knobs

KNURLED METAL HANDWHEEL WITH THREADED HOLE

Ver. 08V01-0124

W466:
Steel with strength class 5.8.

Turned with low roughness.

  • Technical features

    Materials:
    W466:
    Steel with strength class 5.8.
    W466 PIN:
    Stainless steel (Aisi 303).

    Surface finish:
    Turned with low roughness.

    Colour:
    W466:
    Nickel plated (galvanic treatment).
    W466PIN:
    Natural.

    Alternative finishes:

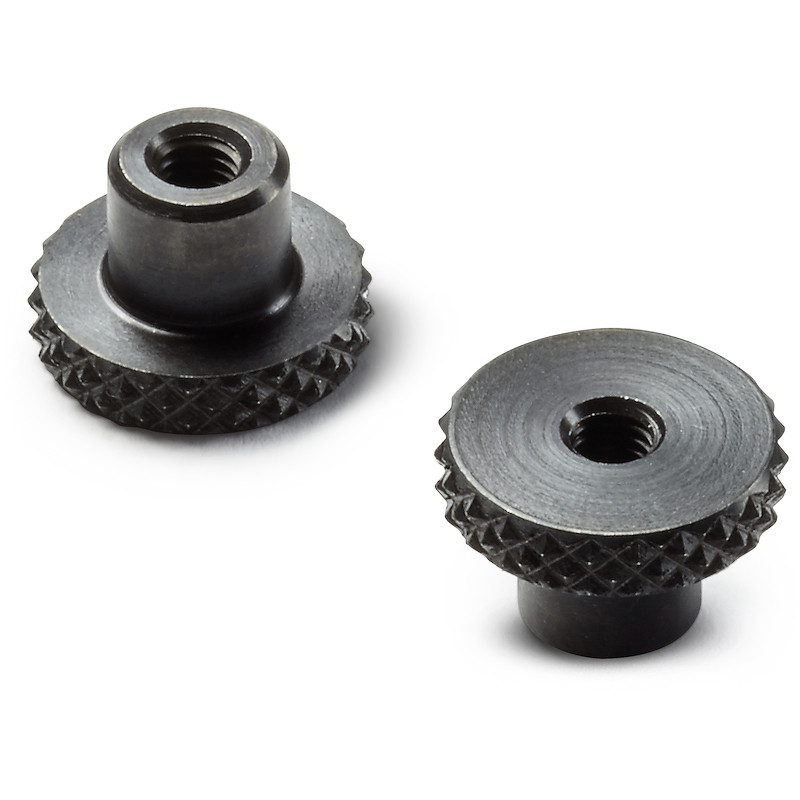

    Black-oxide treatment:
    (replace the final letter of the code (H) with letter B (W46629.SM08B).

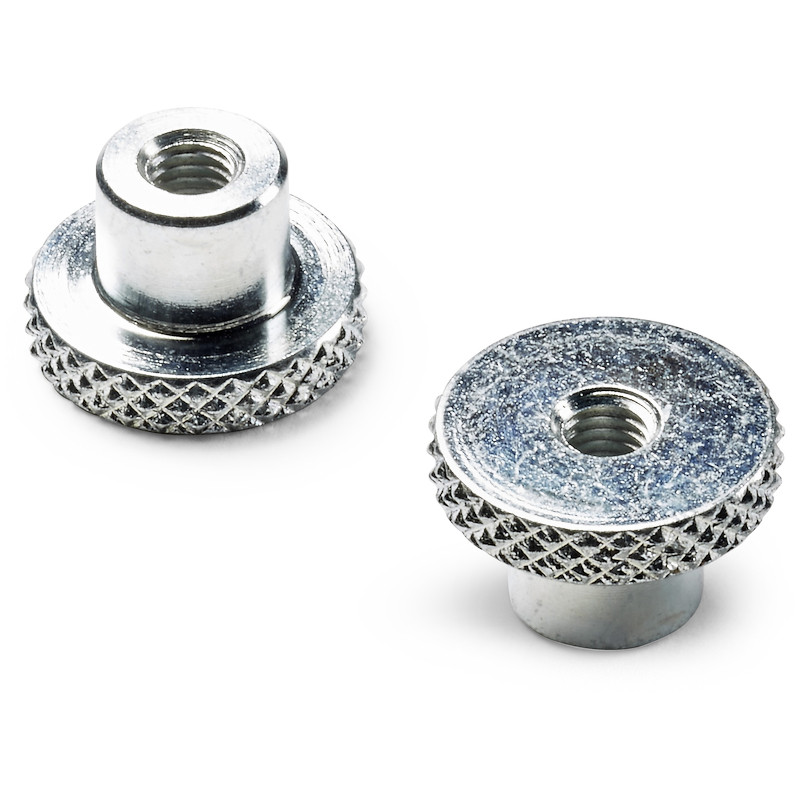

    Galvanising:
    (replace the final letter of the code (H) with letter Z (W46629.SM08Z).

    Hole:
    Threaded through hole machined from solid metal (thread tolerance 6H).

    Special requests:
    Upon request and for special quantities inserts can be supplied to customer’s drawing with hole diameter d1.

Alternative products

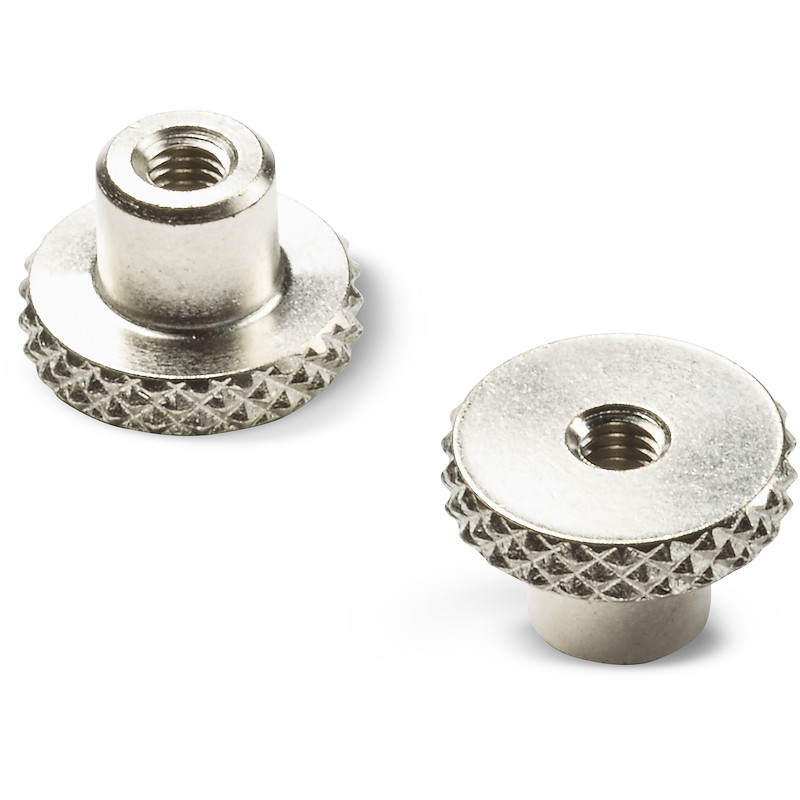

Version W466 - nickel-plated steel

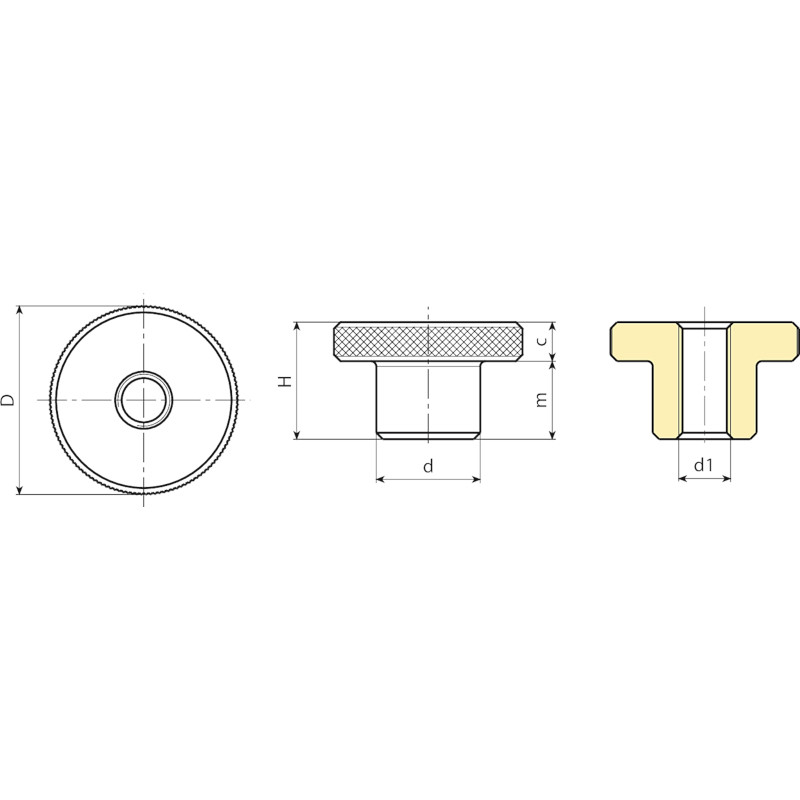

Codice Art. d D H m c d16H
W46611.0003 W46611.SM03H 6 11 8 5 3 M3 3
W46615.0003 W46615.SM04H 8 15 10 6 4 M4 7
W46619.0002 W46619.SM05H 10 19 12 8 4 M5 12
W46623.0004 W46623.SM06H 12 23 15 10 5 M6 22.5
W46629.0003 W46629.SM08H 16 29 18 12 6 M8 45
W46635.0003 W46635.SM10H 20 35 23 15 8 M10 87
W46639.0004 W46639.SM12H 22 39 25 15 10 M12 121

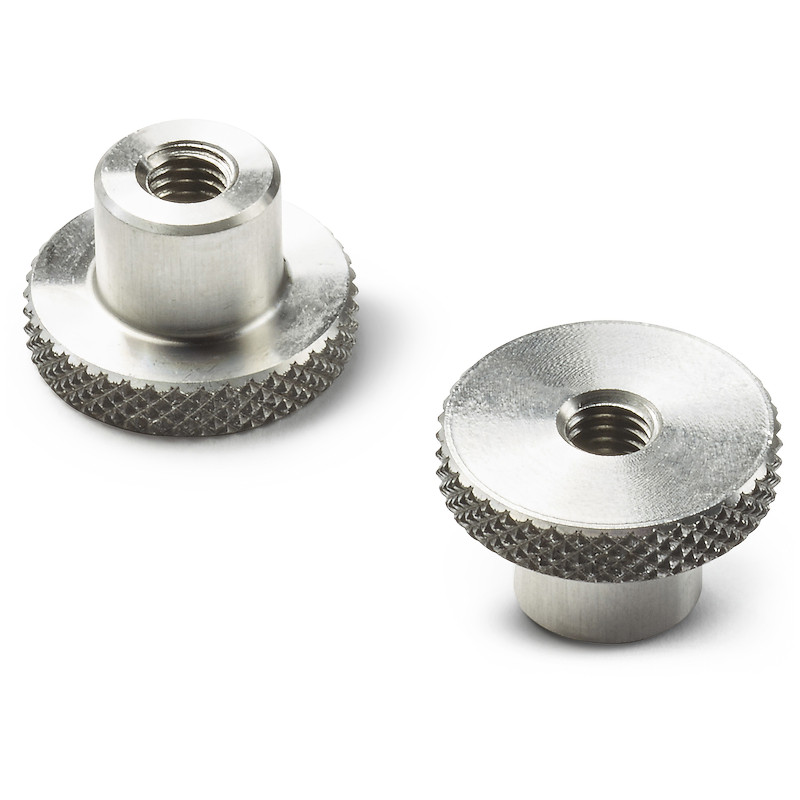

Version W466 PIN - stainless steel (Aisi 303)
Codice Art. d D H m c d16H
W46611.0001 W46611.IM03PIN 6 11 8 5 3 M3 3
W46615.0001 W46615.IM04PIN 8 15 10 6 4 M4 7
W46619.0001 W46619.IM05PIN 10 19 12 8 4 M5 12
W46623.0001 W46623.IM06PIN 12 23 15 10 5 M6 22.5
W46629.0001 W46629.IM08PIN 16 29 18 12 6 M8 45
W46635.0001 W46635.IM10PIN 20 35 23 15 8 M10 87
W46639.0002 W46639.IM12PIN 22 39 25 15 10 M12 121
