W467

Metalline - knobs

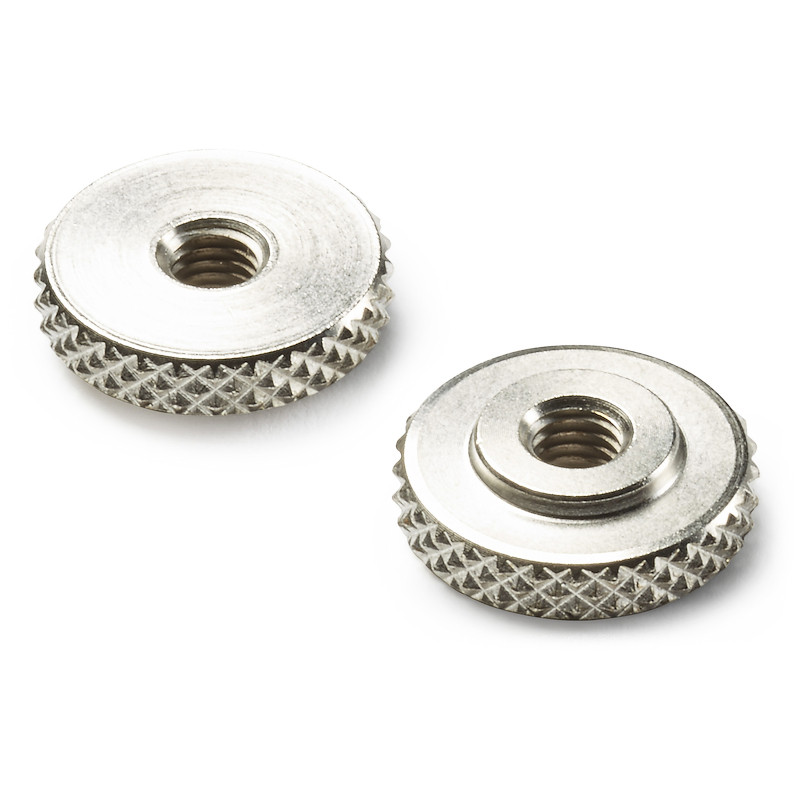

KNURLED METAL HANDWHEEL WITH SHORT HUB AND THREADED HOLE

Ver. 08V01-0124

W467:
Steel with strength class 5.8.

Turned with low roughness.

  • Technical features

    Materials:
    W467:
    Steel with strength class 5.8.
    W467 PIN:
    Stainless steel (Aisi 303).

    Surface finish:
    Turned with low roughness.

    Colour:
    W467:
    Nickel plated (galvanic treatment).
    W467 PIN:
    Natural.

    Alternative finishes:
    Black-oxide treatment:
    (replace the final letter of the code (H) with letter B (W46729.SM08B).
    Galvanising:
    (replace the final letter of the code (H) with letter Z (W46729.SM08Z).

    Hole:
    Threaded through hole machined from solid metal (thread tolerance 6H).

    Special requests:
    Upon request and for special quantities inserts can be supplied to customer’s drawing with hole diameter d1.

Alternative products
Version W467 - nickel-plated steel

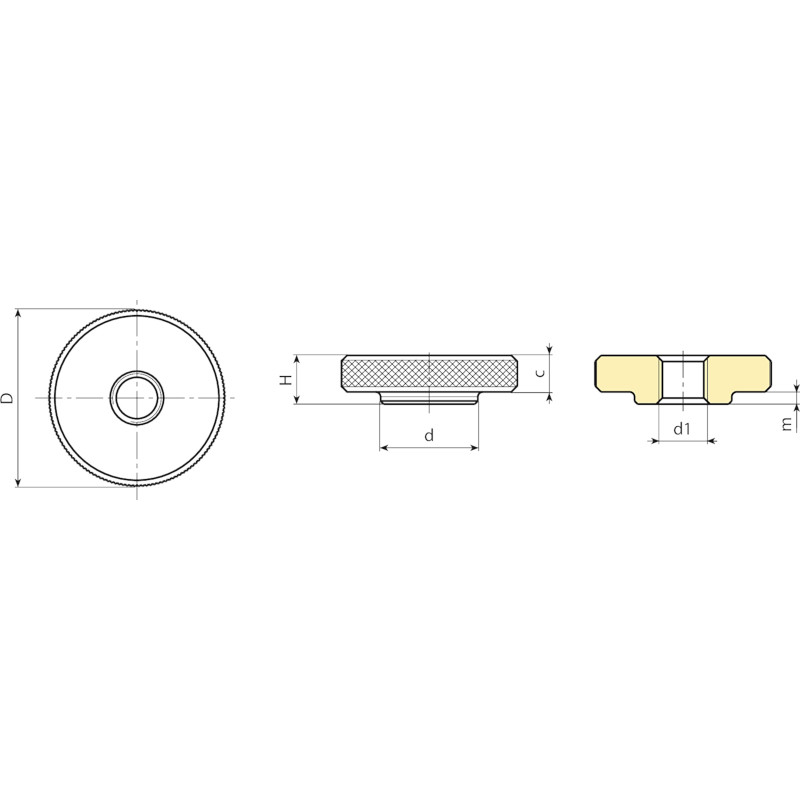

Codice Art. d D H m c d16H
W46711.0002 W46711.SM03H 6 11 3 - 3 M3 2
W46715.0002 W46715.SM04H 8 15 4 - 4 M4 5
W46719.0002 W46719.SM05H 10 19 5 1 4 M5 9
W46723.0002 W46723.SM06H 12 23 6 1 5 M6 16
W46729.0002 W46729.SM08H 16 29 8 2 6 M8 32
W46735.0003 W46735.SM10H 20 35 10 2 8 M10 61
W46739.0002 W46739.SM12H 22 39 12 2 10 M12 92
Version W467 PIN - stainless steel (Aisi 303)
Codice Art. d D H m c d16H
W46711.0001 W46711.IM03PIN 6 11 3 - 3 M3 2
W46715.0001 W46715.IM04PIN 8 15 4 - 4 M4 5
W46719.0001 W46719.IM05PIN 10 19 5 1 4 M5 9
W46723.0001 W46723.IM06PIN 12 23 6 1 5 M6 16
W46729.0001 W46729.IM08PIN 16 29 8 2 6 M8 32
W46735.0001 W46735.IM10PIN 20 35 10 2 8 M10 61
W46739.0001 W46739.IM12PIN 22 39 12 2 10 M12 92
