20

R809

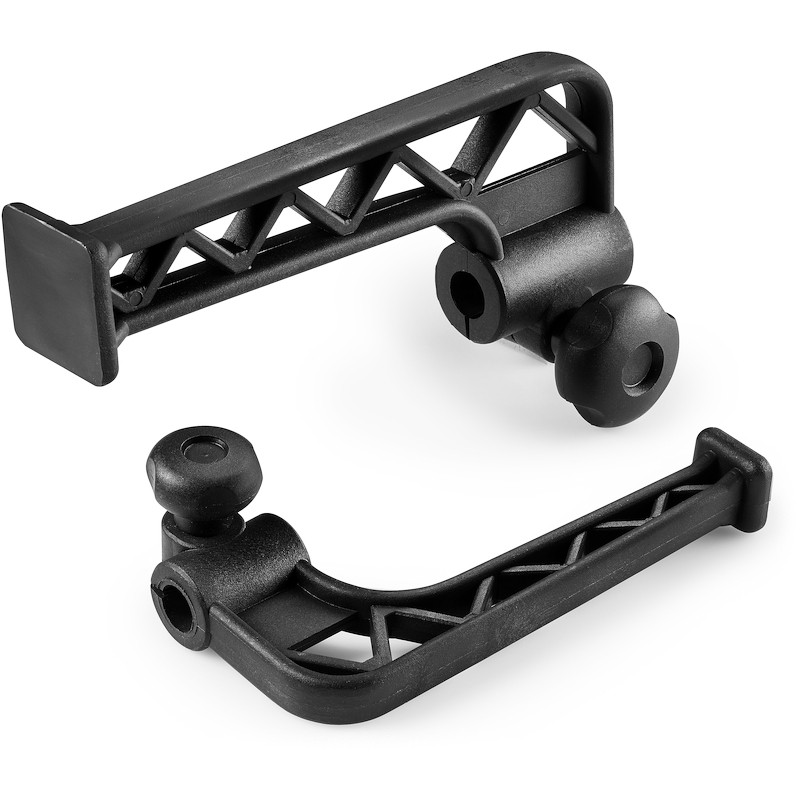

BAR STOP

Ver. 20V01-0124

Reinforced polyamide.
Resistant to oils and greases.

Satin.

  • Technical features

    Materials:
    Reinforced polyamide.
    Resistant to oils and greases.

    Surface finish:
    Satin.

    Colour:
    Black (RAL 9011).

    Hole:
    Smooth through hole obtained by moulding the plastic.

    Inserts:
    (1) Galvanised steel nut with threaded through hole DIN 934 / UNI 5588

    Locking handwheel:
    R809130: art. G73230.TM06X25.
    R809158: art. G73240.TM06X30.

    Special requests:
    None.

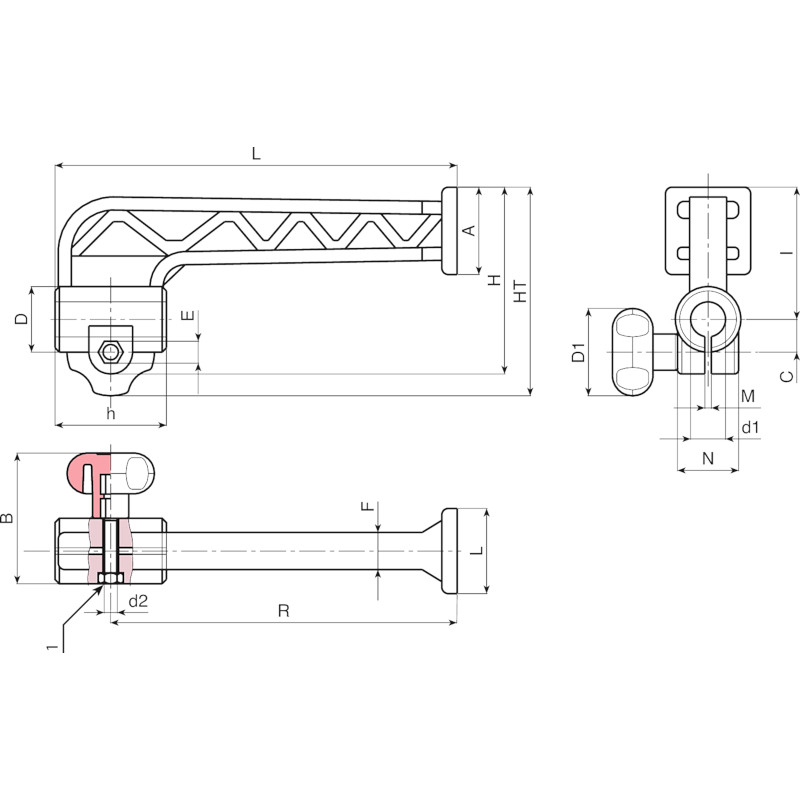

Codice Art. R L H HT D D1 A B C E F I M N h d1 d2 3D
R809130.0001 R809130.TD1201 132 150 85 90 24,5 30 25 47 12 10 14,5 63 2 24,5 35 12 M6 70
R809130.0002 R809130.TD1301 132 150 85 90 24,5 30 25 47 12 10 14,5 63 2 24,5 35 13 M6 70
R809130.0003 R809130.TD1601 132 150 85 90 24,5 30 25 47 12 10 14,5 63 2 24,5 35 16 M6 67
R809158.0001 R809158.TD1601 158 183 92 102 29 40 40 57 14,5 10 17 67 2 28,5 51 16 M6 130
R809158.0002 R809158.TD2001 158 183 92 102 29 40 40 57 14,5 10 17 67 2 28,5 51 20 M6 130
