T413

Ferrite magnets

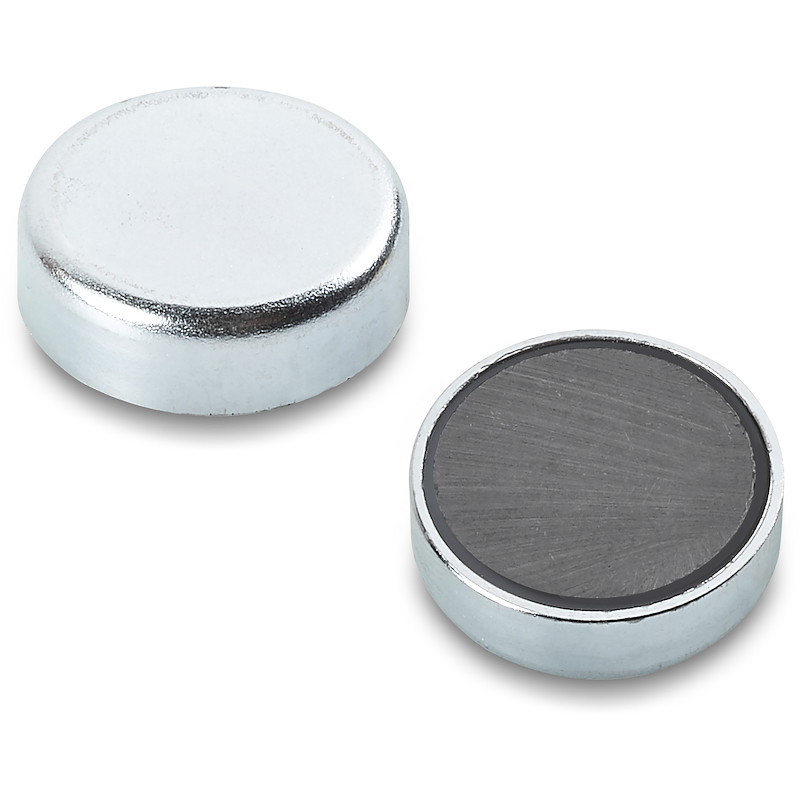

FERRITE ROUND DISC MAGNET WITH STEEL SHELL

Ver. REN.08-0323

(1) Turned free-cutting steel shell.
(2) Flat ferrite magnet.

Smooth.

  • Technical features

    Materials:
    (1) Turned free-cutting steel shell.
    (2) Flat ferrite magnet.
    (3) Plastic spacer.

    Surface finish:
    Smooth.

    Colour:
    Standard blue galvanising.

    Special requests:
    Upon request and for special quantities the steel shell of model T413 can be supplied black galvanised (720h salt spray resistance).

  • Certifications

Alternative products
Codice art. D H F1 (N)
- T413010.VZ 10 ±0,1 4,5 +0,2/-0,1 2 4
- T413013.VZ 13 ±0,1 4,5 +0,2/-0,1 3 10
- T413016.VZ 16 ±0,1 4,5 +0,2/-0,1 5 18
- T413020.VZ 20 ±0,1 6 +0,2/-0,1 10 30
- T413025.VZ 25 ±0,1 7 +0,3/-0,2 18 40
- T413032.VZ 32 ±0,1 7 +0,3/-0,2 29 80
- T413036.VZ 36 +0,2/-0,1 7,7 +0,3/-0,2 39 100
- T413040.VZ 40 +0,2/-0,1 8 +0,4/-0,2 55 125
- T413047.VZ 47 +0,2/-0,1 9 +0,5/-0,2 84 180
- T413050.VZ 50 +0,2/-0,1 10 +0,5/-0,2 102 220
- T413057.VZ 57 +0,2/-0,1 10,5 +0,5/-0,2 141 280
- T413063.VZ 63 +0,3/-0,1 14 +0,5/-0,2 226 350
- T413080.VZ 80 +0,3/-0,1 18 +0,5/-0,2 468 600
- T413100.VZ 100 +0,5/-0,1 22 +0,5/-0,2 915 900
- T413125.VZ 125 +0,5/-0,1 26 +0,5/-0,2 1.680 1.300
