J290

Toggle clamps with lever and handle

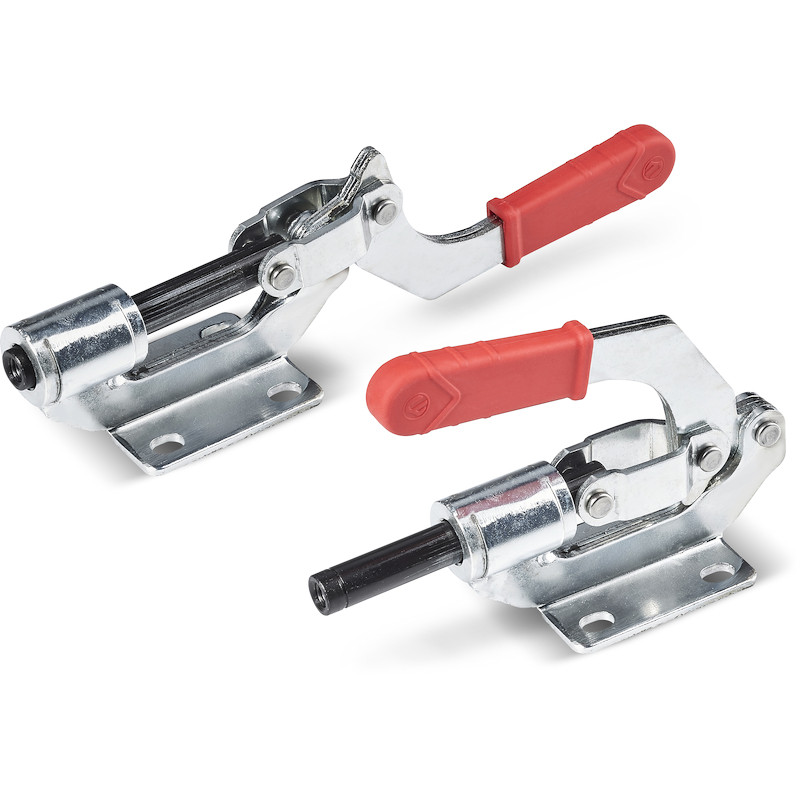

LIGHT TOGGLE CLAMP WITH THRUST ROD AND RUBBER HANDLE

Ver. 10V01-0124

(1) TPV thermoplastic rubber handle. Hardness 75 Shore.
(2) Sheared and bent base and lever system in sheet metal (DD13).

Smooth.

  • Technical features

    Materials:
    (1) TPV thermoplastic rubber handle. Hardness 75 Shore.
    (2) Sheared and bent base and lever system in sheet metal (DD13).
    (3) Rotation pins and fixing rivets in stainless steel (Aisi 304).
    (4) Thrust rod with threaded hole in free-cutting steel.

    Surface finish:
    Smooth.

    Colour:
    (1) Red (RAL 3000).
    (4) Black-oxide treated.
    (2) Standard blue galvanising.

    Special Requests:
    None.

Alternative products

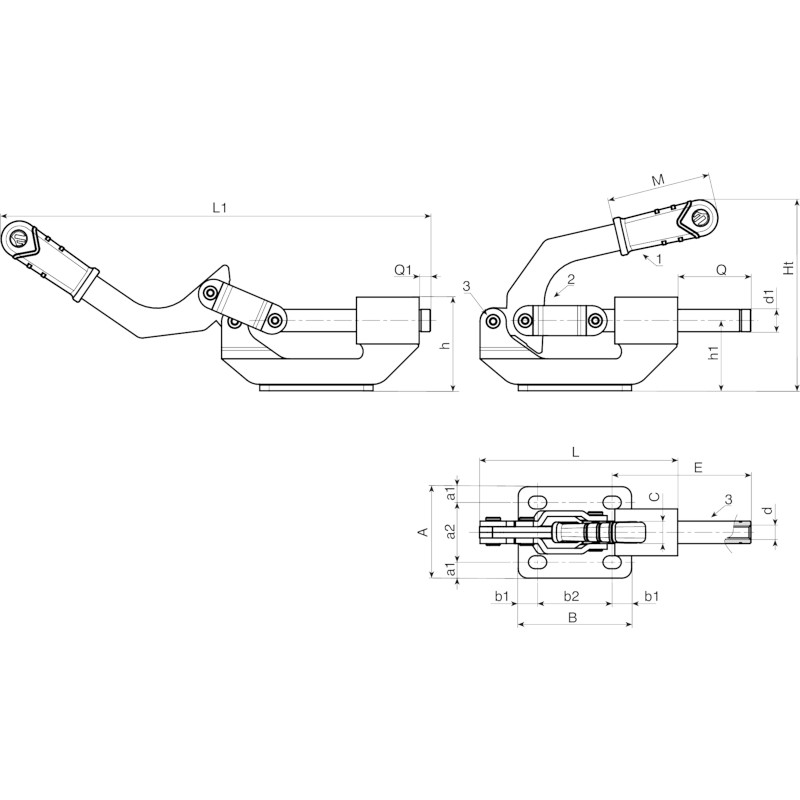

Codice art. F1 (Kg) L L1 Ht h h1 A B C E M Q Q1 s a1 a2 b1 b2 d d1 o p
J290022.0001 J290022.FZ16 220 107 234 98 47 34 49 60 12,5 79 65 41 3 3 8,5 32 10 40 M8 12 10 7 458
