Y319

Whasers DIN6319

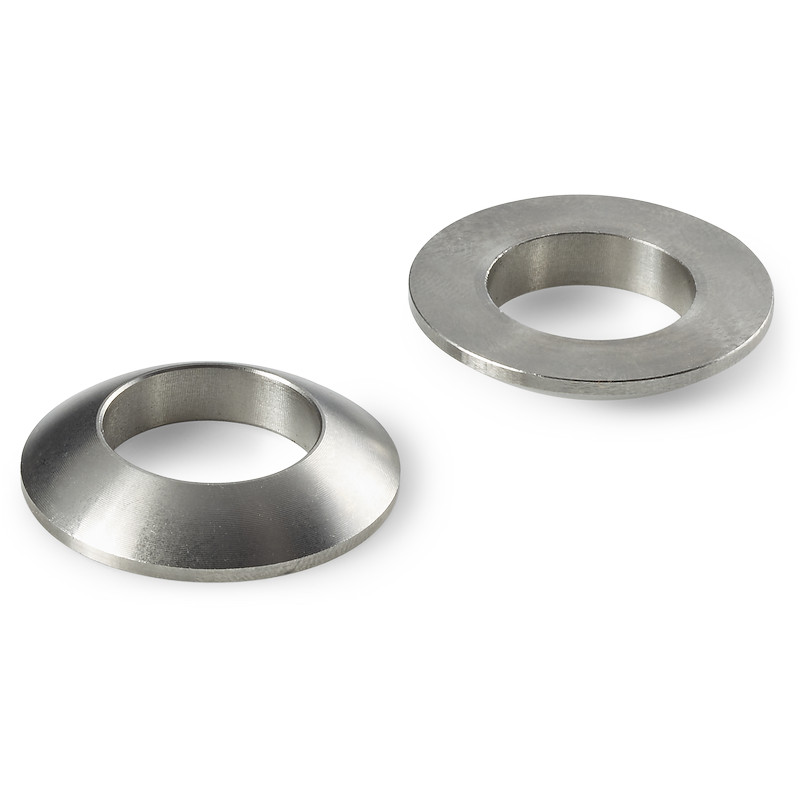

DIN 6319 ed. 10/01 - STEEL CONVEX C DESIGN WASHER

Ver. QEN.15-0323

Y319:
Case-hardened steel.

Y319:
Smooth, case-hardened.

Alternative products
Version DIN 6319 C Design - black-oxide treated steel convex washer

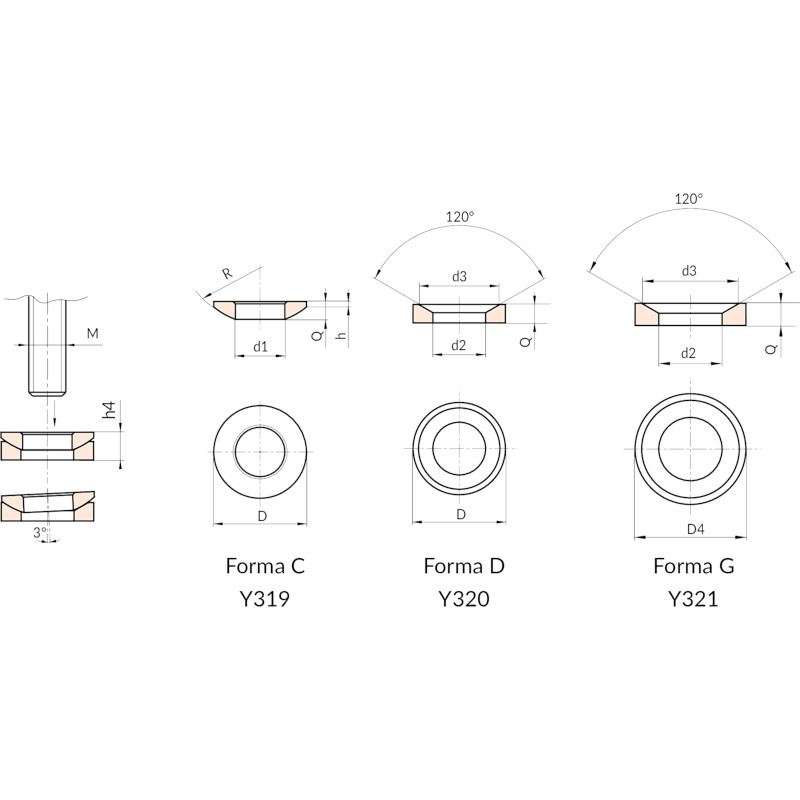

Codice Art. D R h d1H13 M Q Carico max. ammissibile statico kN
- Y319010.SD05.25 10.5 7.5 0.4 5.25 M05 2 - 0.7
- Y319012.SD06.4 12 9 0.7 6.4 M06 2.3 9 1
- Y319017.SD08.4 17 12 0.6 8.4 M08 3.2 17 2.8
- Y319021.SD10.5 21 15 0.8 10.5 M10 4 26 5
- Y319024.SD13 24 17 1.1 13 M12 4.6 38 8
- Y319028.SD15 28 22 1.2 15 M14 5 53 11
- Y319030.SD17 30 22 1.3 17 M16 5.3 73 13
- Y319036.SD21 36 27 2 21 M20 6.3 117 23
- Y319044.SD25 44 32 2.4 25 M24 8.2 168 21
- Y319056.SD31 56 41 3.6 31 M30 11.2 269 103
- Y319068.SD37 68 50 4.6 37 M36 14 394 188
- Y319078.SD43 78 58 6.5 43 M42 17 542 316
- Y319092.SD50 92 67 8 50 M48 21 714 549
- Y319103.SD58 103 79 9.5 58 M56 23 - 748
- Y319120.SD66 120 93 12 66 M64 27 - 1239
Version DIN 6319 C Design - stainless steel (Aisi 303) convex washer

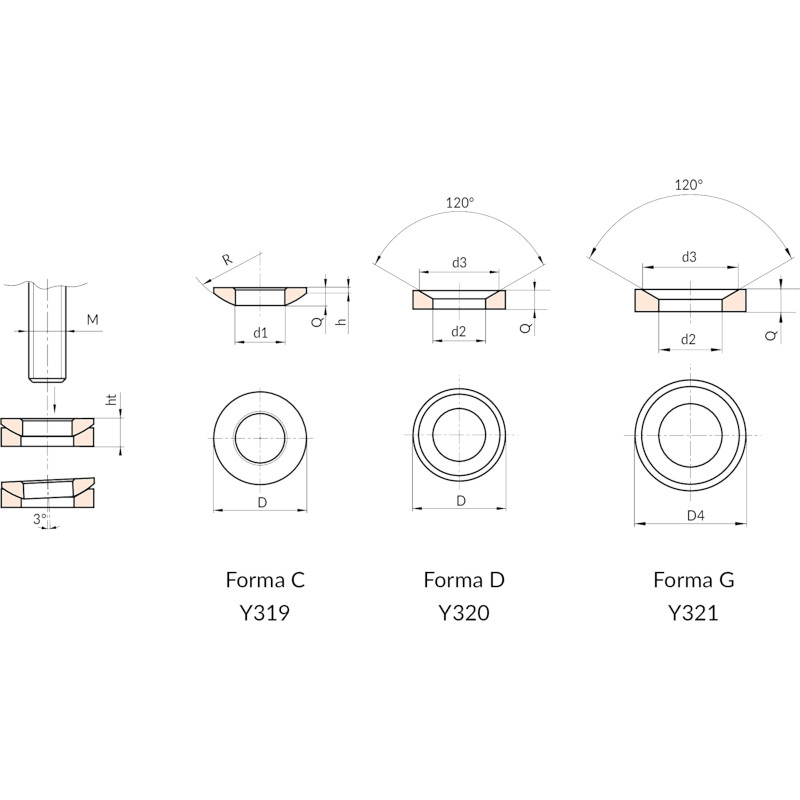

Codice Art. D R h d1H13 M Q Carico max. ammissibile statico kN
- Y319012.ID06.4PIN 12 9 0.7 6.4 M06 2.3 6 1
- Y319017.ID08.4PIN 17 12 0.6 8.4 M08 3.2 12 2.8
- Y319021.ID10.5PIN 21 15 0.8 10.5 M10 4 16 5
- Y319024.ID13PIN 24 17 1.1 13 M12 4.6 24 7
- Y319030.ID17PIN 30 22 1.3 17 M16 5.3 45 13
- Y319036.ID21PIN 36 27 2 21 M20 6.3 71 24
- Y319044.ID25PIN 44 32 2.4 25 M24 8.2 105 44
- Y319056.ID31PIN 56 41 3.6 31 M30 11.2 191 106
- Y319068.ID37PIN 68 50 4.6 37 M36 14 - 194
- Y319078.ID43PIN 78 58 6.5 43 M42 17 - 311
- Y319092.ID50PIN 92 67 8 50 M48 21 - 550
