J276

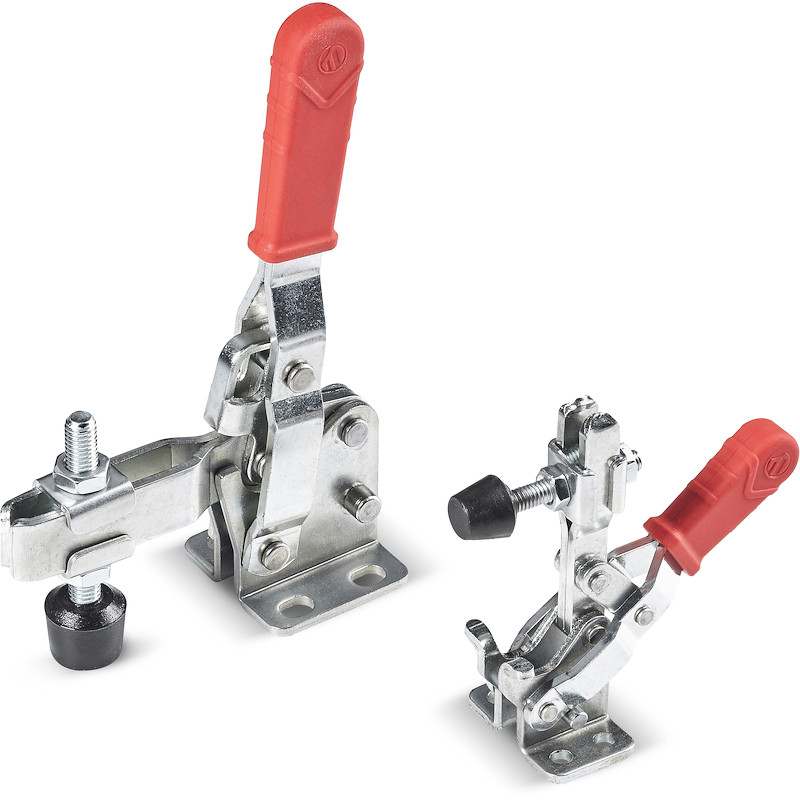

Kniehebelverschlüsse mit Hebel und Griff

VERTIKAL-SPANNER MIT BASIS AUS STAHL UND GRIFF AUS GUMMI

Ausf. 10V01-0124

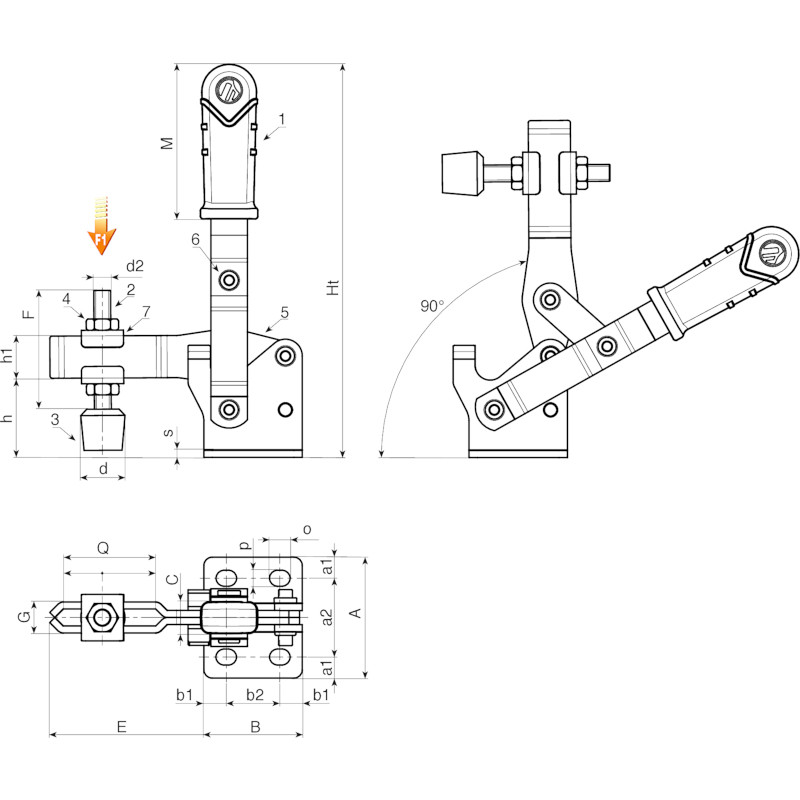

(1) Griff aus thermoplastischem Gummi TPV. Härte 75 Shore.
(2) Gewindebolzen aus Automatenstahl.

Glatt.

Alternativprodukte
Codice art. F1 (Kg) A B C E F G Ht Q M d d2 o p a1 a2 b1 b2 h h1 s
J276009.0001 J276009.FZ16 90 40 25 12 42 32 12,5 101 20 40 15 M6 5,5 5,5 6,6 26,8 6,15 12,7 23 10 3 168
J276012.0001 J276012.FZ16 120 43 35 12 50 44 11 140 32 55 15 M6 5,5 5,5 7 29 8 19 28 15 2,5 247
J276020.0001 J276020.FZ16 200 45,5 43 12 64 54 14,5 165 35 65 20 M8 9 6,5 6,5 32 10,5 22 34 17,5 3 400
J276030.0001 J276030.FZ16 300 64,5 56,5 14,5 84 75 18 205 55 75 25 M10 10,5 8,5 9,3 46 13,8 29 43 20,5 3,5 790
