W846

Glattes Federdruckstück mit Kugel

FEDERNDE DRUCKSTÜCKE, GLATTE AUSFÜHRUNG AUS KUNSTSTOFF, MIT KUGEL AUS KUNSTSTOFF ODER EDELSTAHL

Ausf. 21V01-0124

Druckstück aus Kunststoff (POM - Delrin).

  • Technische Eigenschaften

    Material:
    Druckstück aus Kunststoff (POM - Delrin).

    Farbe:
    Körper:
    Schwarz.
    Kugel:
    W846: Weiß.
    W846CIN: Natur.

    Kugel:
    W846:
    Kugel aus weißem Kunststoff (POM).
    W846CIN:
    Kugel aus gehärtetem Edelstahl (AISI 420).

    Art des Federschubes:
    Normal.

    Feder:
    Feder aus Edelstahl (AISI 301).

    Weitere Möglichkeiten:
    Keine.

Alternativprodukte
Ausführung W846: mit Kugel aus Kunststoff (DELRIN).

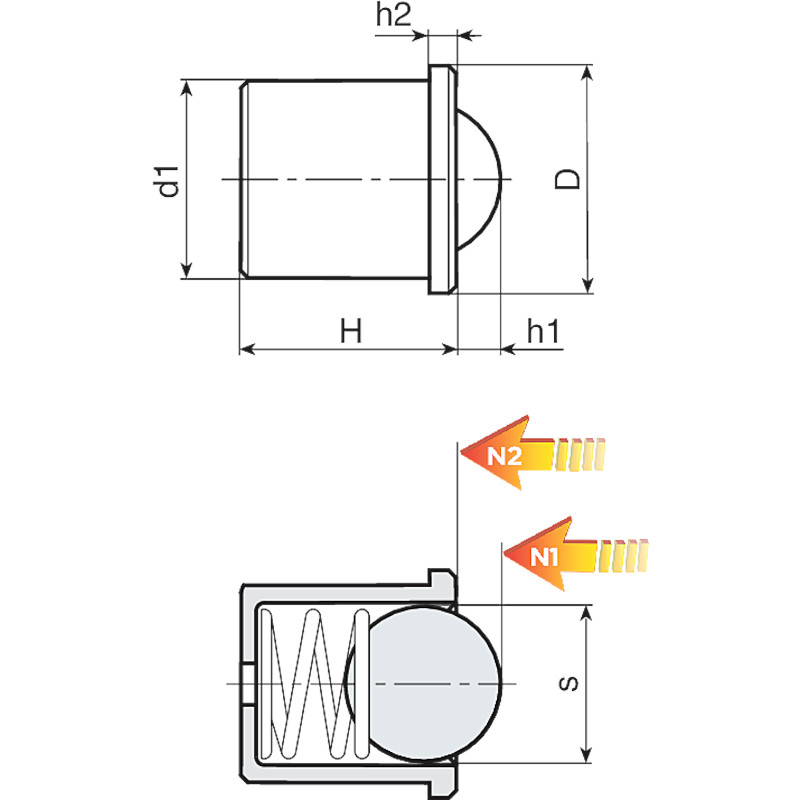

Codice art. s H h1 h2 D N1 (N) N2 (N) d1(+0.1 +0)
W846.0001 W846.TND04 3 5 0.7 1 4.6 3 7 4 0.2
W846.0002 W846.TND05 4 6 1 1 5.6 4 7 5 0.35
W846.0003 W846.TND06 5 7 1.5 1 6.5 6 12 6 0.7
W846.0004 W846.TND08 6.5 9 1.8 1 8.5 6 12 8 1.5
W846.0005 W846.TND10 8 13.5 2.7 2.5 12 10 20 10 2
W846.0006 W846.TND12 10 16 3.5 2.5 14 15 25 12 2.3
Ausführung W846CIN: mit Kugel aus Edelstahl
Codice art. s H h1 h2 D N1 (N) N2 (N) d1(+0.1 +0)
W846.0007 W846.TND04CIN 3 5 0.7 1 4.6 3 7 4 0.2
W846.0008 W846.TND05CIN 4 6 1 1 5.6 4 7 5 0,4
W846.0009 W846.TND06CIN 5 7 1.5 1 6.5 6 12 6 0.7
W846.0010 W846.TND08CIN 6.5 9 1.8 1 8.5 6 12 8 1,6
W846.0011 W846.TND10CIN 8 13.5 2.7 2.5 12 10 20 10 3
W846.0012 W846.TND12CIN 10 16 3.5 2.5 14 15 25 12 6
