W850

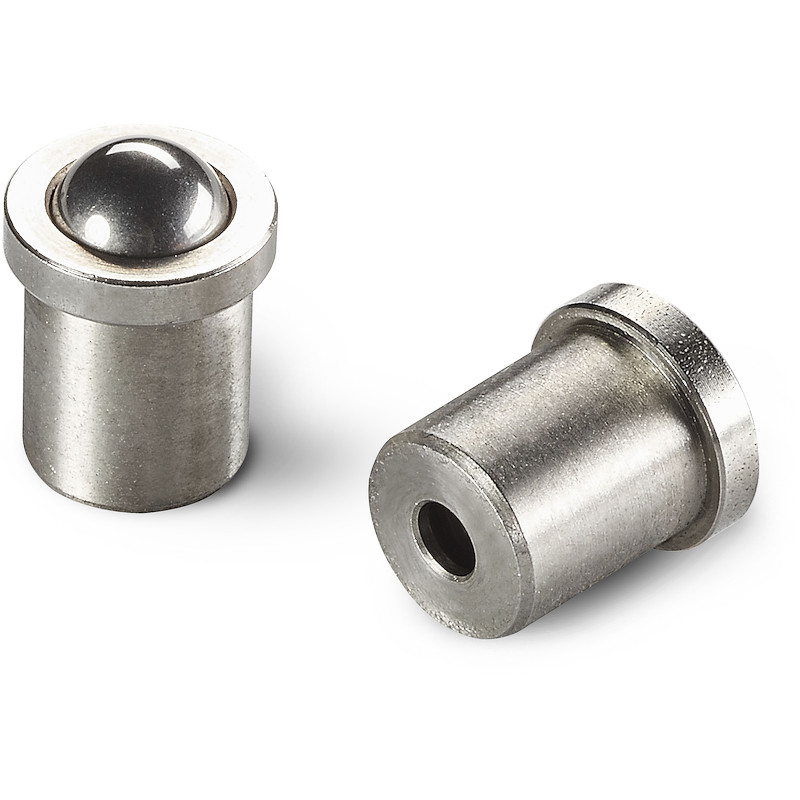

Glattes Federdruckstück mit Kugel

FEDERNDE DRUCKSTÜCKE, GLATTE AUSFÜHRUNG AUS EDELSTAHL

Ausf. 21V01-0124

Druckstück aus Edelstahl (AISI 303).

  • Technische Eigenschaften

    Material:
    Druckstück aus Edelstahl (AISI 303).

    Farbe:
    Körper:
    Natur.
    Kugel:
    W850CIN:
    Natur.
    W850POM:
    Weiß.

    Kugel:
    W850CIN:
    Kugel aus gehärtetem Edelstahl (AISI 420).
    W850POM:
    Kugel aus weißem Kunststoff (POM).

    Art des Federschubes:
    Normal.

    Feder:
    Feder aus Edelstahl (AISI 301).

    Weitere Möglichkeiten:
    Keine.

Alternativprodukte
Ausführung W850CIN: mit Kugel aus Edelstahl (AISI 303)

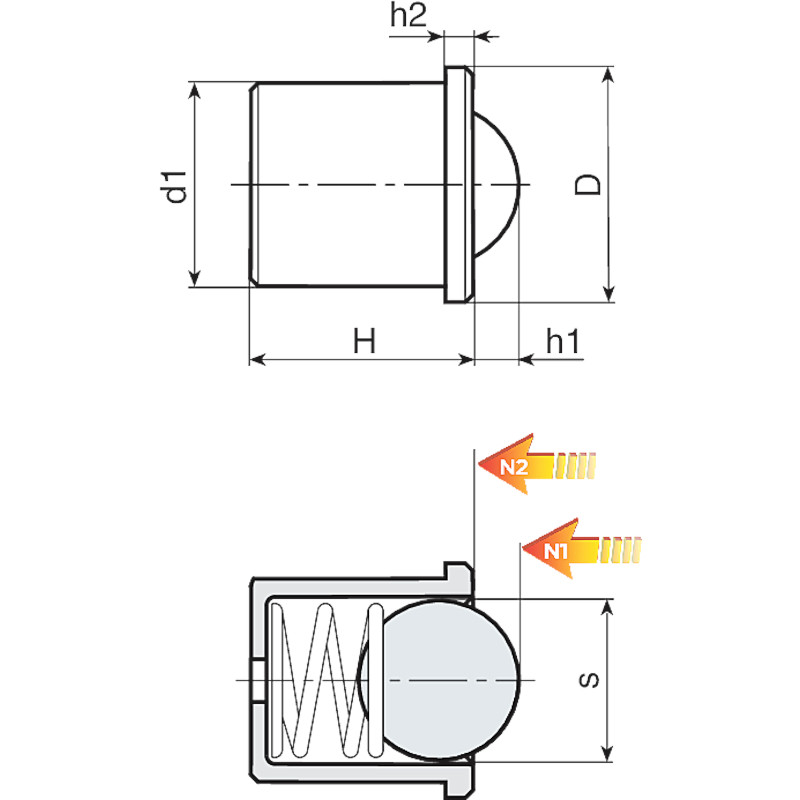

Codice art. s H h1 h2 D N1 (N) N2 (N) d1(+0.08 +0)
W850.0001 W850.IND03CIN 2.5 4 0.65 0.8 3.5 1.7 3.5 3 0.2
W850.0003 W850.IND04CIN 3 5 0.8 1 4,6 3 7 4 0,3
W850.0005 W850.IND05CIN 4 6 1 1 5.6 4 7 5 0.6
W850.0007 W850.IND06CIN 5 7 1.5 1 6.5 6 12 6 1
W850.0009 W850.IND08CIN 6.5 9 1.8 1 8.5 6 12 8 2
W850.0011 W850.IND10CIN 8 13.5 2.7 2.5 12 10 20 10 6
W850.0013 W850.IND12CIN 10 16 3.5 2.5 14 15 25 12 10
Ausführung W850POM: mit Kugel aus Kunststoff (DELRIN)
Codice art. s H h1 h2 D N1 (N) N2 (N) d1(+0.08 +0)
W850.0022 W850.IND04POM 3 5 0.8 1 4,6 3 7 4 0,3
W850.0023 W850.IND05POM 4 6 1 1 5.6 4 7 5 0.6
W850.0024 W850.IND06POM 5 7 1.5 1 6.5 6 12 6 1
W850.0025 W850.IND08POM 6.5 9 1.8 1 8.5 6 12 8 2
W850.0026 W850.IND10POM 8 13.5 2.7 2.5 12 10 20 10 6
W850.0027 W850.IND12POM 10 16 3.5 2.5 14 15 25 12 10
