08

H765

Gerändelte Handräder mit Durchgangsloch

RÄNDELHOHLMUTTER MIT DURCHGANGSGEWINDE

Ausf. 08V01-0124

Polyamid glasfaserverstärkt (PA6+GF).
Öl- und fettbeständig.

Matt.

  • Technische Eigenschaften

    Material:
    Polyamid glasfaserverstärkt (PA6+GF).
    Öl- und fettbeständig.

    Oberfläche:
    Matt.

    Farbe:
    Schwarz (RAL 9011).

    Einsatz:
    H765:

    Weitere Möglichkeiten:
    Individuelle Farben möglich, siehe Farbtabelle [S.TitoloTabellaColori.

Alternativprodukte

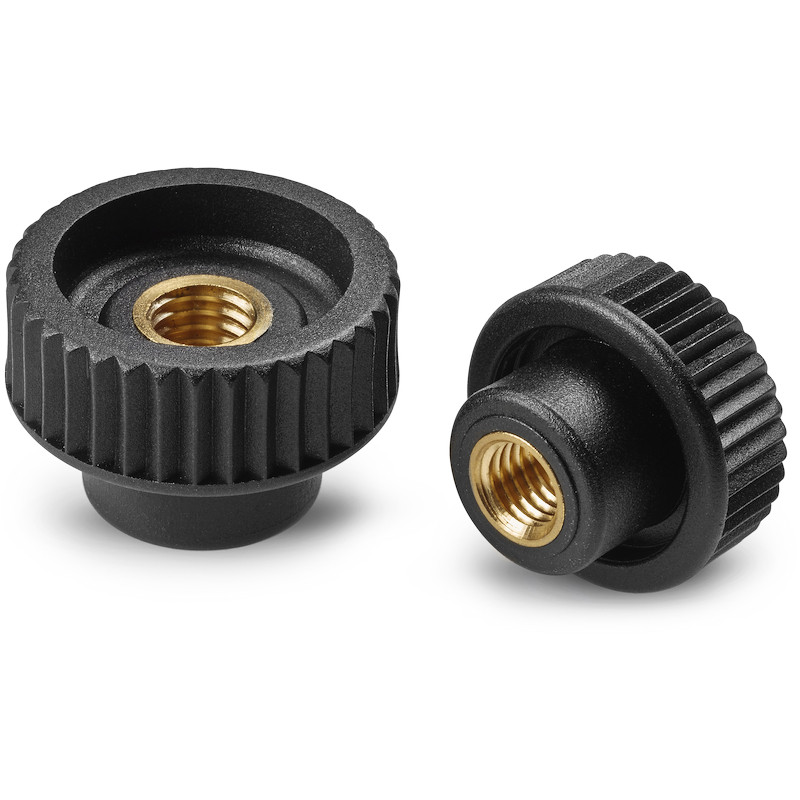

Ausführung H765: Buchse aus Messing.

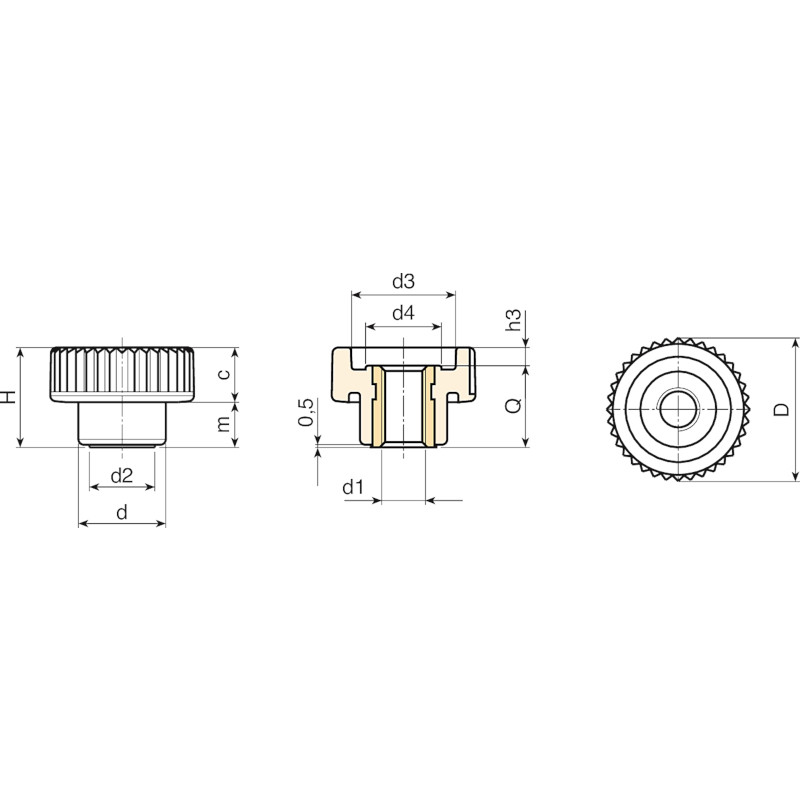

Codice art. D H d m c d2 d3 d4 h3 d16H Q 3D
H76515.0002 H76515.TM0401 15 10.5 10 4.5 6 8 10 7.5 2 M4 8.5 2
H76515.0006 H76515.TM0501 15 10.5 10 4.5 6 8 10 7.5 2 M5 8.5 2
H76521.0002 H76521.TM0501 21 15 13 6.5 8.5 9.5 15 10.5 2.5 M5 12.5 5
H76521.0006 H76521.TM0601 21 15 13 6.5 8.5 9.5 15 10.5 2.5 M6 12.5 5
H76526.0002 H76526.TM0601 26 18 16 8.5 9.5 12 19 13 3 M6 15 10
H76526.0004 H76526.TM0801 26 18 16 8.5 9.5 12 19 13 3 M8 15 10
H76533.0002 H76533.TM0801 32 23 20 10.5 12.5 15 23 16 5 M8 18 16
H76533.0004 H76533.TM1001 32 23 20 10.5 12.5 15 23 16 5 M10 18 16
H76540.0002 H76540.TM0801 40 28 25 12.5 15.5 18 28 21 6 M8 22 31
H76540.0004 H76540.TM1001 40 28 25 12.5 15.5 18 28 21 6 M10 22 32
H76540.0006 H76540.TM1201 40 28 25 12.5 15.5 18 28 21 6 M12 22 32
H76540.0008 H76540.TM1401 40 28 25 12.5 15.5 18 28 21 6 M14 22 34

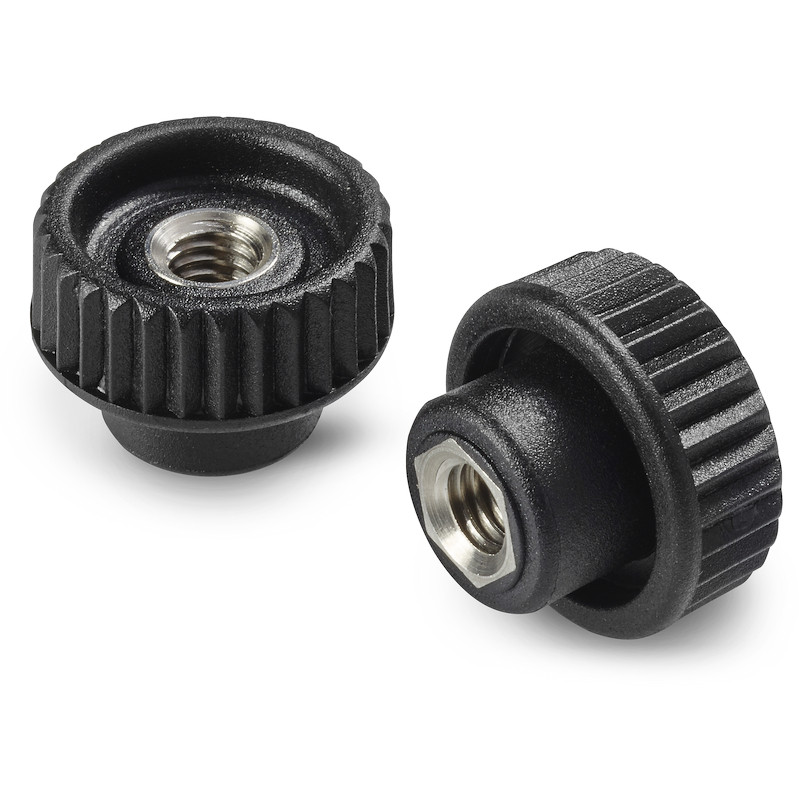

Ausführung H765PIN: Buchse aus Edelstahl (AISI 303).
Codice art. D H d m c d2 d3 d4 h3 d16H Q 3D
H76515.0003 H76515.TM0401PIN 15 10.5 10 4.5 6 8 10 7.5 2 M4 8.5 3
H76515.0007 H76515.TM0501PIN 15 10.5 10 4.5 6 8 10 7.5 2 M5 8.5 3
H76521.0003 H76521.TM0501PIN 21 15 13 6.5 8.5 9.5 15 10.5 2.5 M5 12.5 6
H76521.0007 H76521.TM0601PIN 21 15 13 6.5 8.5 9.5 15 10.5 2.5 M6 12.5 6
H76526.0003 H76526.TM0601PIN 26 18 16 8.5 9.5 12 19 13 3 M6 15 11.5
H76526.0005 H76526.TM0801PIN 26 18 16 8.5 9.5 12 19 13 3 M8 15 11.5
H76533.0003 H76533.TM0801PIN 32 23 20 10.5 12.5 15 23 16 5 M8 18 18
H76533.0005 H76533.TM1001PIN 32 23 20 10.5 12.5 15 23 16 5 M10 18 18
H76540.0003 H76540.TM0801PIN 40 28 25 12.5 15.5 18 28 21 6 M8 22 32
H76540.0005 H76540.TM1001PIN 40 28 25 12.5 15.5 18 28 21 6 M10 22 31
H76540.0007 H76540.TM1201PIN 40 28 25 12.5 15.5 18 28 21 6 M12 22 34
