02

B229

Hohlgriffe

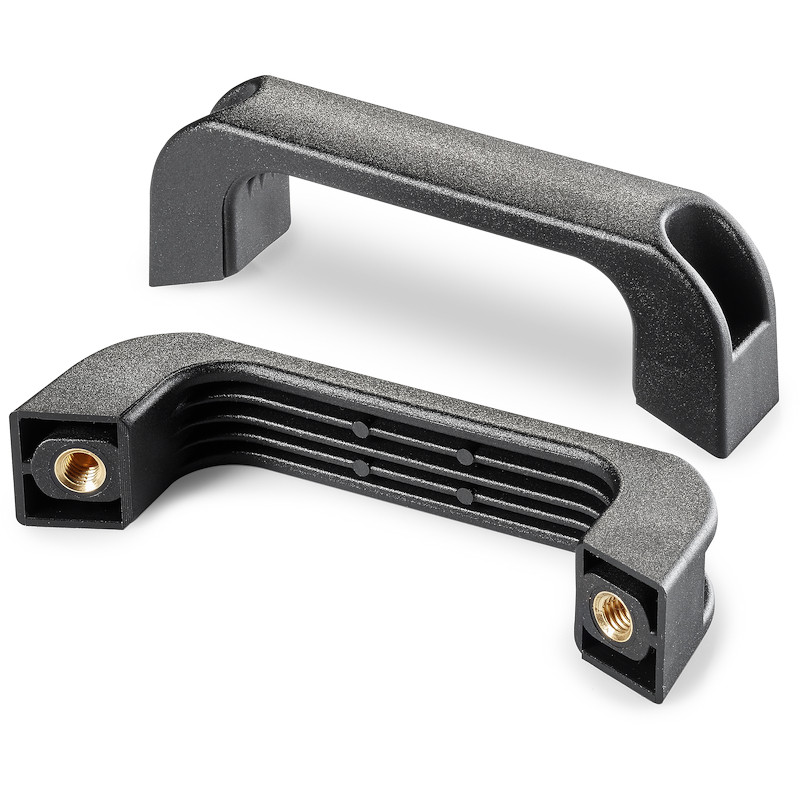

BÜGELGRIFF MIT INNENGEWINDE FÜR GEKRÜMMTE OBERFLÄCHEN

Ausf. 02V01-0124

Polyamid glasfaserverstärkt (PA6+GF).
Öl- und fettbeständig.

Matt.

  • Technische Eigenschaften

    Material:
    Polyamid glasfaserverstärkt (PA6+GF).
    Öl- und fettbeständig.

    Oberfläche:
    Matt.

    Farbe:
    Schwarz (RAL 9011).

    Einsatz:
    Gewindebuchse aus Messing.

    Weitere Möglichkeiten:
    Individuelle Farben möglich, siehe Farbtabelle [S.TitoloTabellaColori.

  • Beschreibung

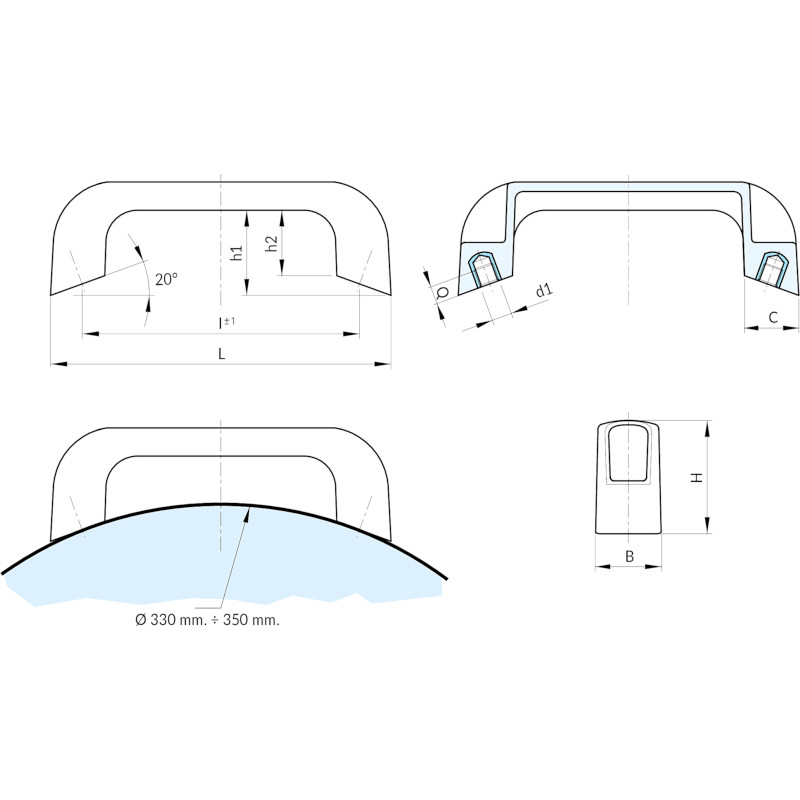

    Questa maniglia è stata disegnata per essere montata su superfici tonde. Nel disegno è indicato il diametro della superficie per cui la maniglia è stata progettata. Inoltre la maniglia può essere leggermente flessa per adattarsi al meglio alla foratura esistente, oppure per compensare piccole variazioni sul diametro o interasse dei fori. Un esempio di riferimento per questa maniglia è il suo utilizzo su bidoni aspiratori industriali.

Alternativprodukte
Codice art. L I B H h1 h2 C d16H Q
B229110.0001 B229110.TM0601 135 110 26 45 34 26 21.5 M6 8 55
B229110.0002 B229110.TM0801 135 110 26 45 34 26 21.5 M8 7 54
