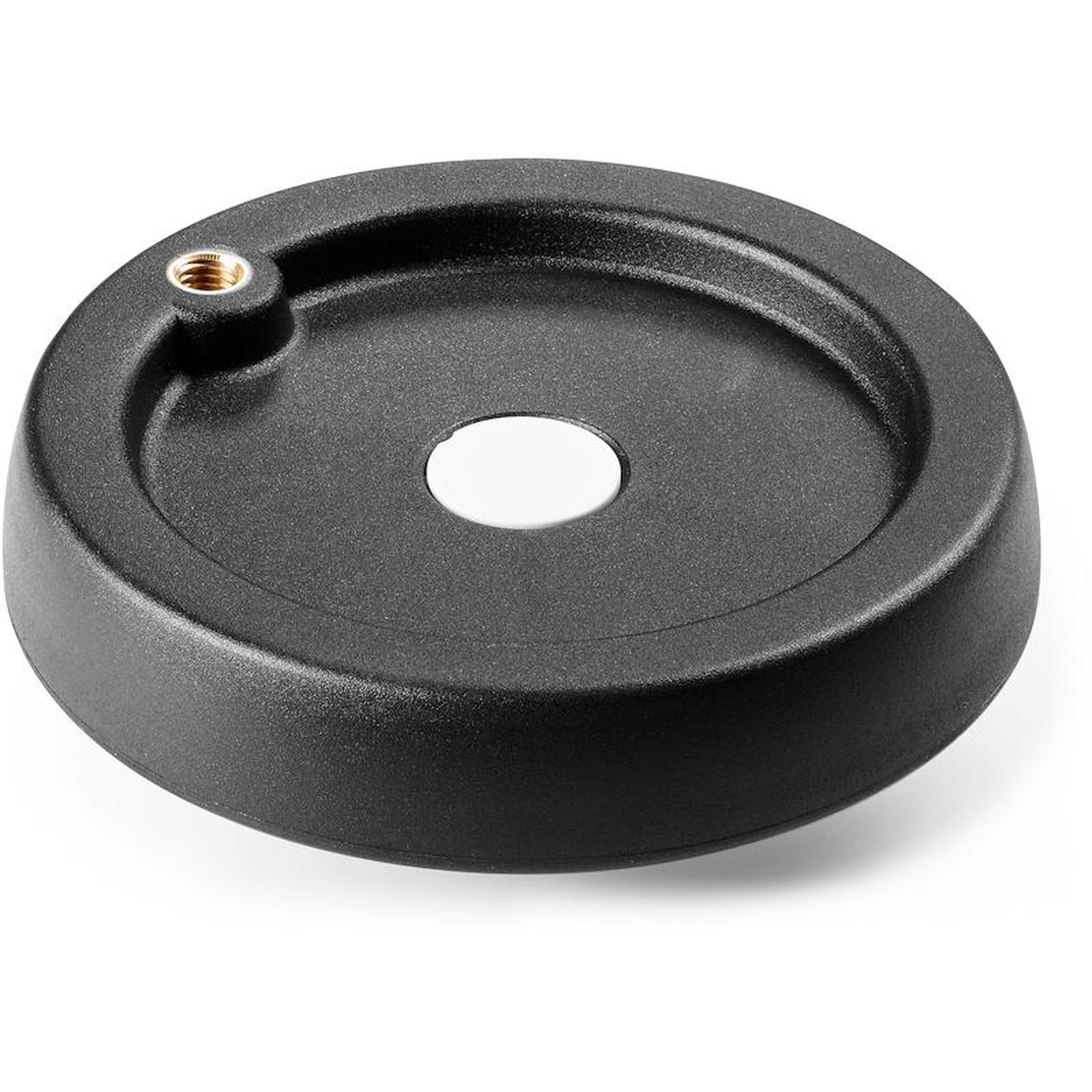

BASE FOR SOLID CONTROL HANDWHEEL WITH PROVISION FOR SIDE HANDLE

03

CBASE


Volantini con manico girevole

    Materials:

    Reinforced and stabilized polyamide.

    Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Central cap:

    Grey polyamide (RAL 7035). 13).

    Alternative cap colours:

    Orange (RAL 2004 code 02).

    Blue (RAL 5015 code 07).

    Yellow (RAL 1021 code 10).

    Red (RAL 3000 code 16).

    Green (RAL 6024 code 17).

    Black (RAL 9011 code 01).

    Main insert:

    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:

    Brass insert with threaded through hole.

    Fixing method:

    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

    Special requests:

    On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

    Upon request and for special quantities handwheels and caps are available in the colours indicated in the chart (attention: reduced range).

    Data sheet

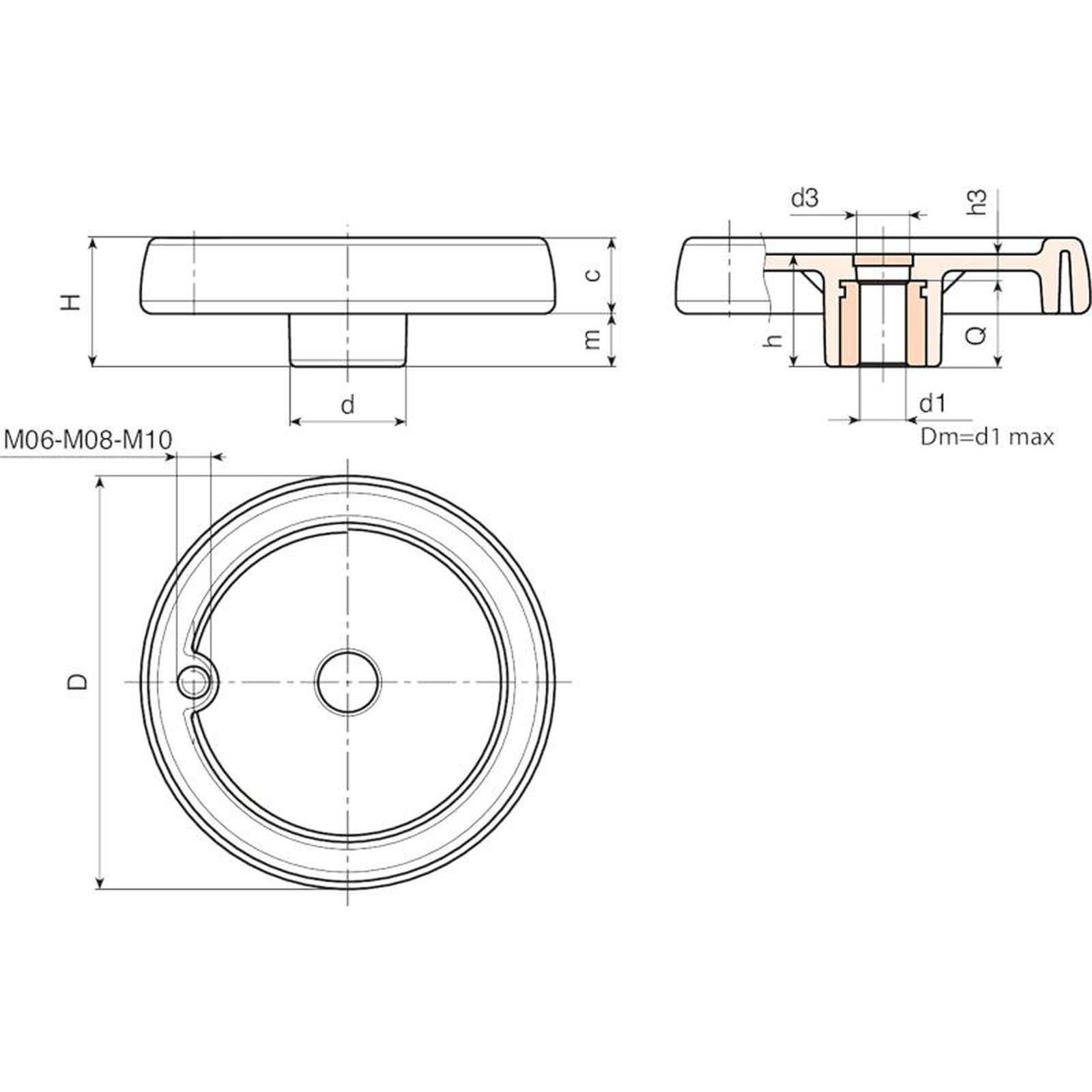

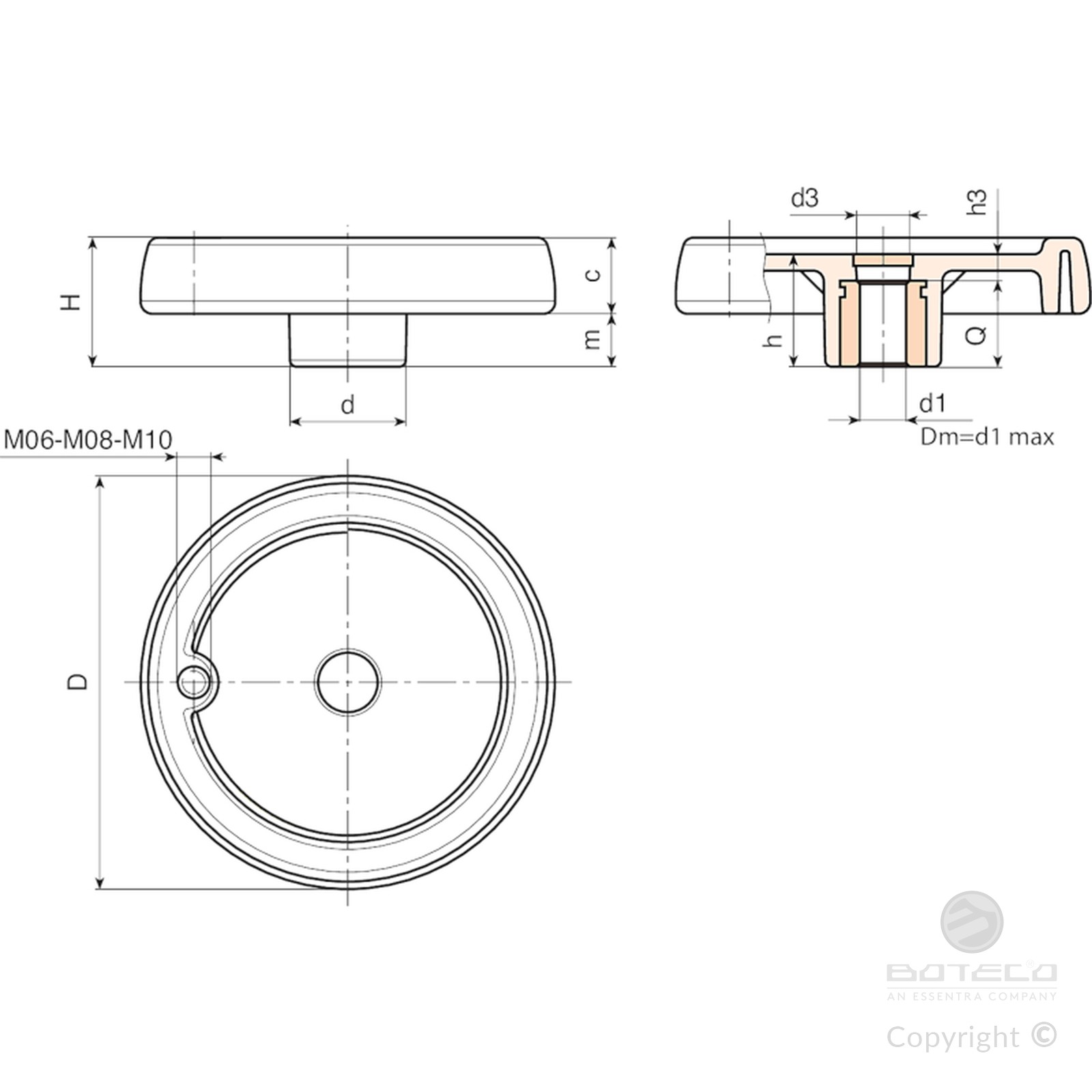

    Code Art. D H h d m c d3 h3 Dm d1 H10 Weight (g) Hole
    C080.TP0501PZ1 C080.TP0501PZ1 81 33 29 25 16 17 16 9 12 5 100 M6
    C100.TP0501PZ1 C100.TP0501PZ1 100.5 39 34 30.5 18 21 16.5 10 16 5 190 M6
    C125.TP0501PZ1 C125.TP0501PZ1 125 44 37 36 20 24 26 13 18 5 290 M8
    C150.TD0801PZ1 C150.TD0801PZ1 150 54 44 38 25 29 26 12 22 8 520 M10
    C175.TD0801PZ1 C175.TD0801PZ1 173 57 47 40 25.5 31.5 26 15 22 8 660 M10
    C200.TD0801PZ1 C200.TD0801PZ1 204 61 49.5 45 26 35 26.5 13.5 28 8 870 M10
    C250.TD0801PZ1 C250.TD0801PZ1 251 66,5 56,5 60 27,5 39 36 20,5 28 8 1400 M10
    Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
    Dm = Maximum obtainable diameter for subsequent machining (widening).
