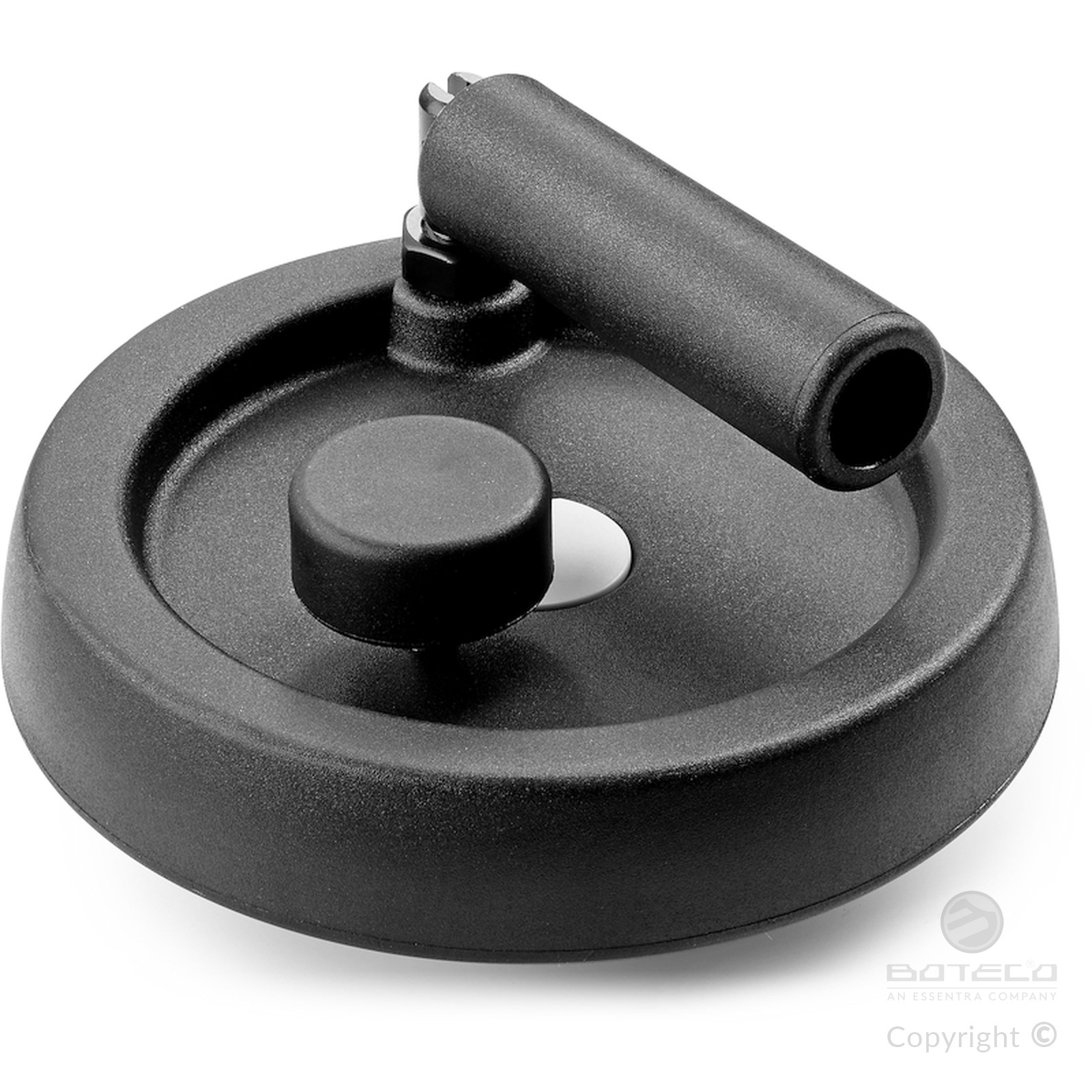

SOLID CONTROL HANDWHEEL WITH REVOLVING/FOLDING HANDLE AND LOCKING KNOB
C980
Volantini con manico pieghevole
Materials:
Reinforced and stabilized polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Handwheel and handle colour:
Black (RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Main insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Lateral insert:
Brass insert with threaded through hole.
Lateral handle:
Revolving, folding handle art. M136.
Locking knob:
Black cylindrical knob Ral 9011 art. G793-36 (Ø 100 art. G732-25) with threaded stud.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.






Note: the article codes in the table are incomplete. Communicate the R and Q2 values to obtain the full code.

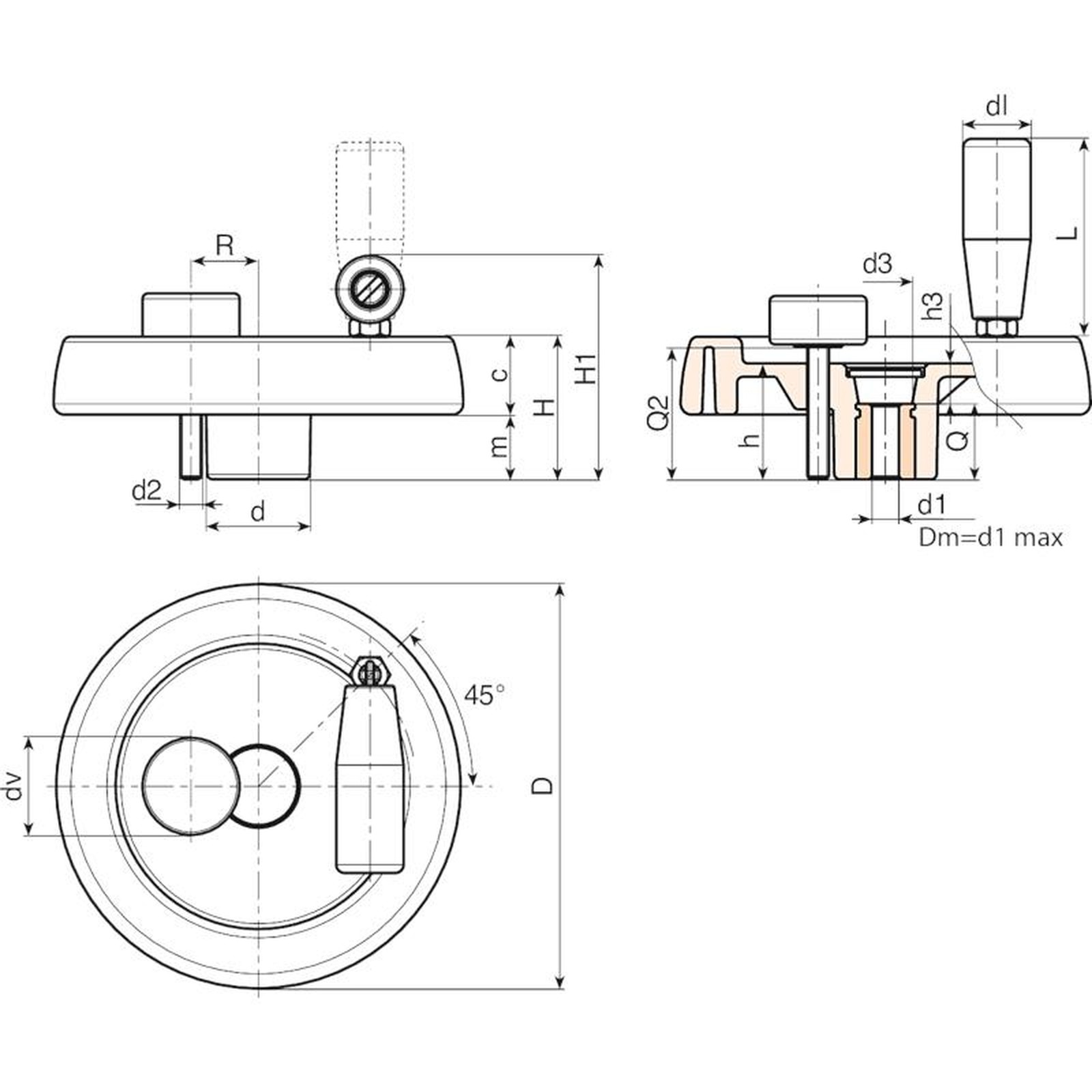

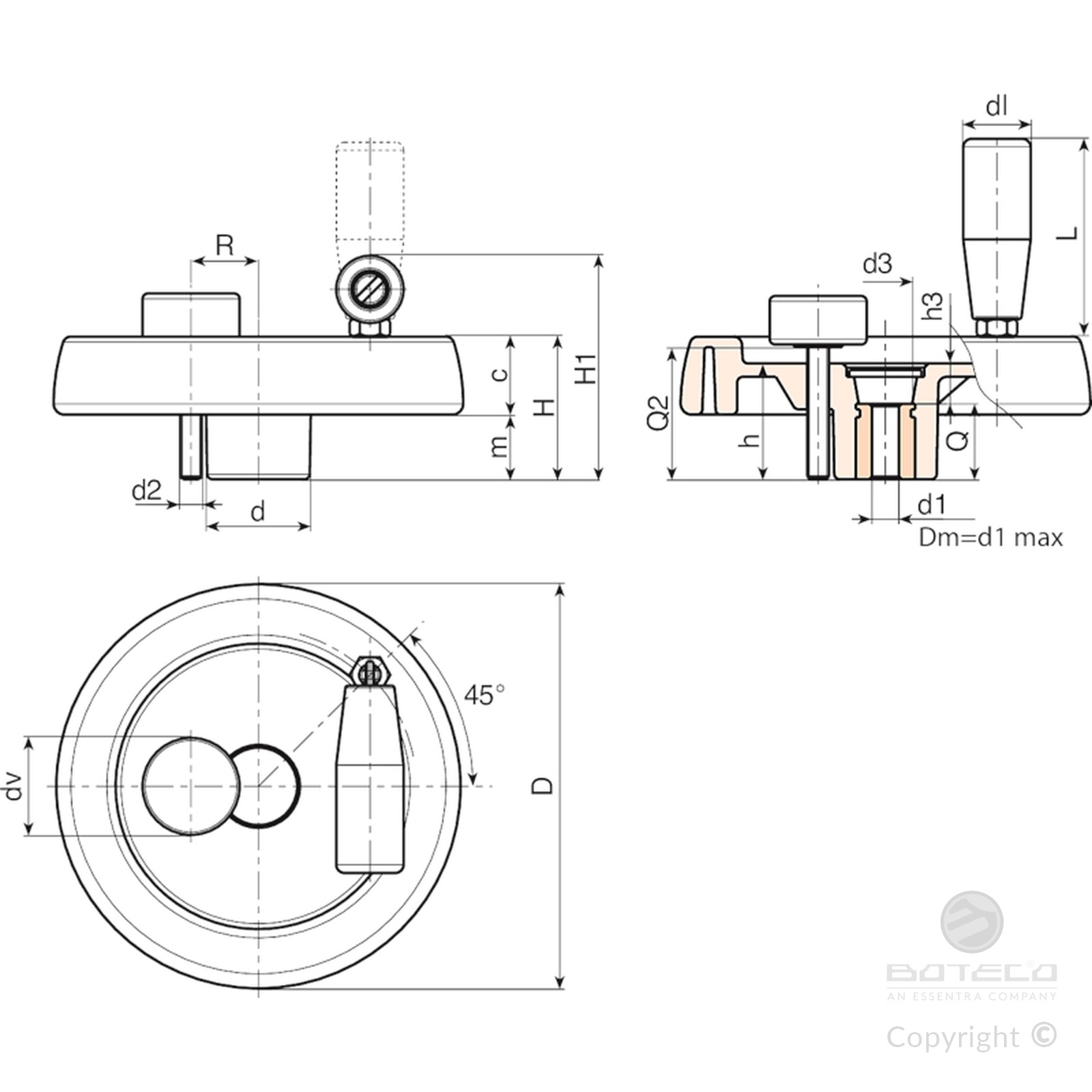

Code | Art. | D | H | H1 | h | d | m | c | d3 | h3 | R | d2 | Q2 | dl | L | Dm | d1 H10 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C980100... | C980100.TP0501P... | 100.5 | 39 | 63 | 34 | 30.5 | 18 | 21 | 16.5 | 10 | 20÷23 | M6 | A.R. | 20 | 56 | 16 | 5 | 24 | 295 |
C980125... | C980125.TP0501P... | 125 | 44 | 74 | 37 | 36 | 20 | 24 | 26 | 13 | 23÷25 | M8 | A.R. | 25 | 76 | 18 | 5 | 24 | 420 |
C980150... | C980150.TD0801P... | 150 | 54 | 89 | 44 | 38 | 25 | 29 | 26 | 12 | 25÷28 | M8 | A.R. | 26 | 89 | 22 | 8 | 32 | 730 |
C980175... | C980175.TD0801P... | 173 | 57 | 92 | 47 | 40 | 25.5 | 31.5 | 26 | 15 | 26÷36 | M8 | A.R. | 26 | 89 | 22 | 8 | 32 | 885 |
C980200... | C980200.TD0801P... | 204 | 61 | 94 | 49.5 | 45 | 26 | 35 | 26.5 | 13.5 | 28÷42 | M8 | A.R. | 26 | 97 | 28 | 8 | 36 | 1100 |
C980250... | C980250.TD0801P... | 251 | 66,5 | 100 | 56,5 | 60 | 27,5 | 39 | 36 | 20,5 | 36÷50 | M8 | A.R. | 26 | 97 | 28 | 8 | 36 | 1640 |
