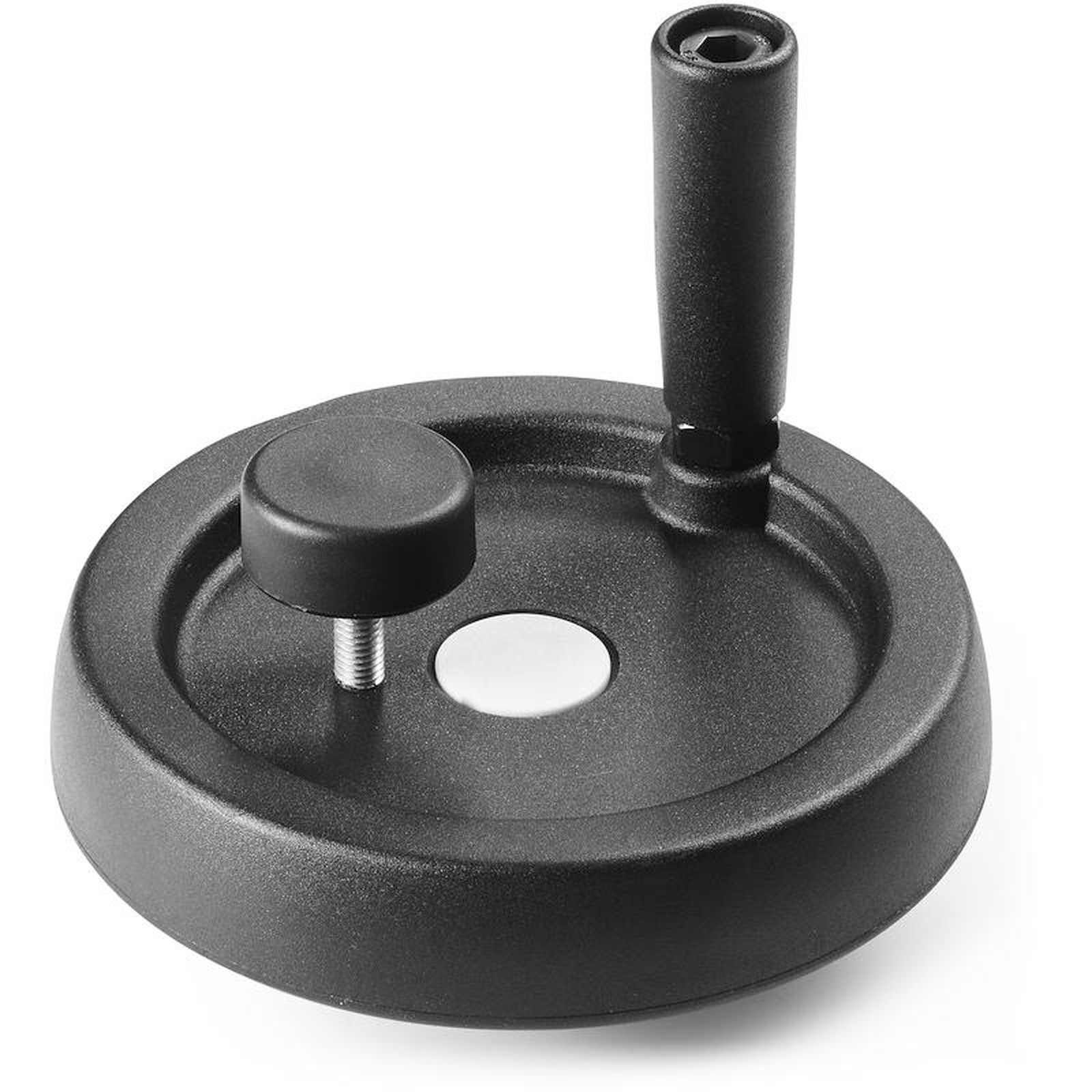

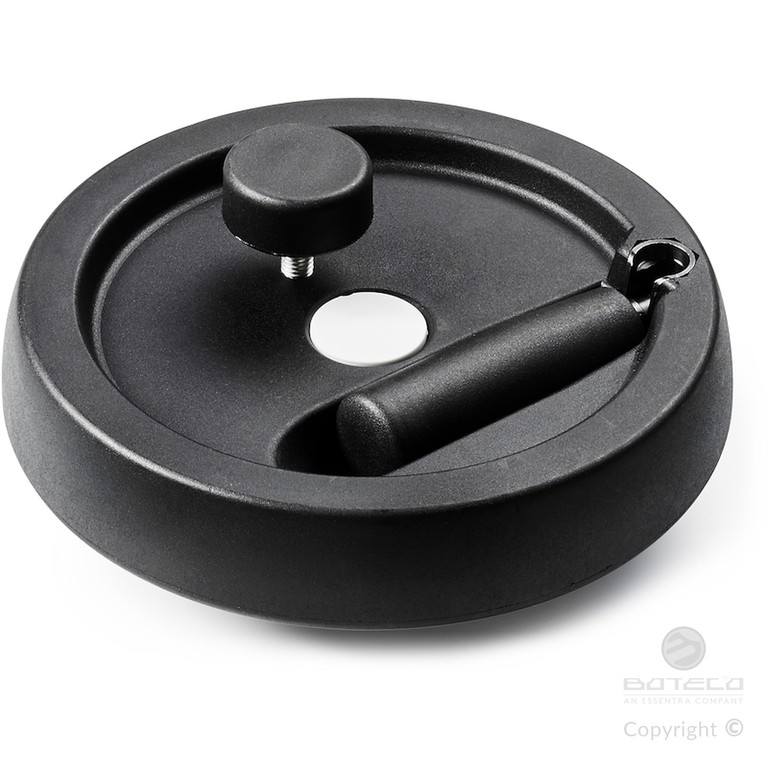

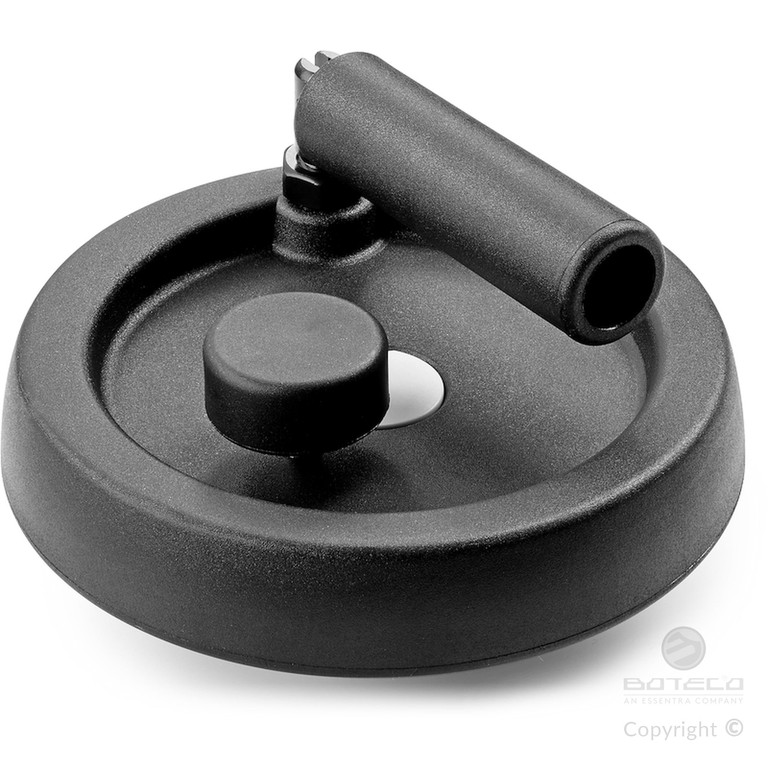

SOLID CONTROL HANDWHEEL WITH REVOLVING HANDLE AND LOCKING KNOB
C970
Volantini con manico girevole
Materials:
Reinforced and stabilized polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Handwheel and handle colour:
Black (RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Main insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Lateral insert:
Brass insert with threaded through hole.
Lateral handle:
Revolving handle art. M144.
Locking knob:
Black cylindrical knob Ral 9011 art. G793-36 (Ø 100 art. G732-25) with threaded stud.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.






Note: the article codes in the table are incomplete. Communicate the R and Q2 values to obtain the full code.

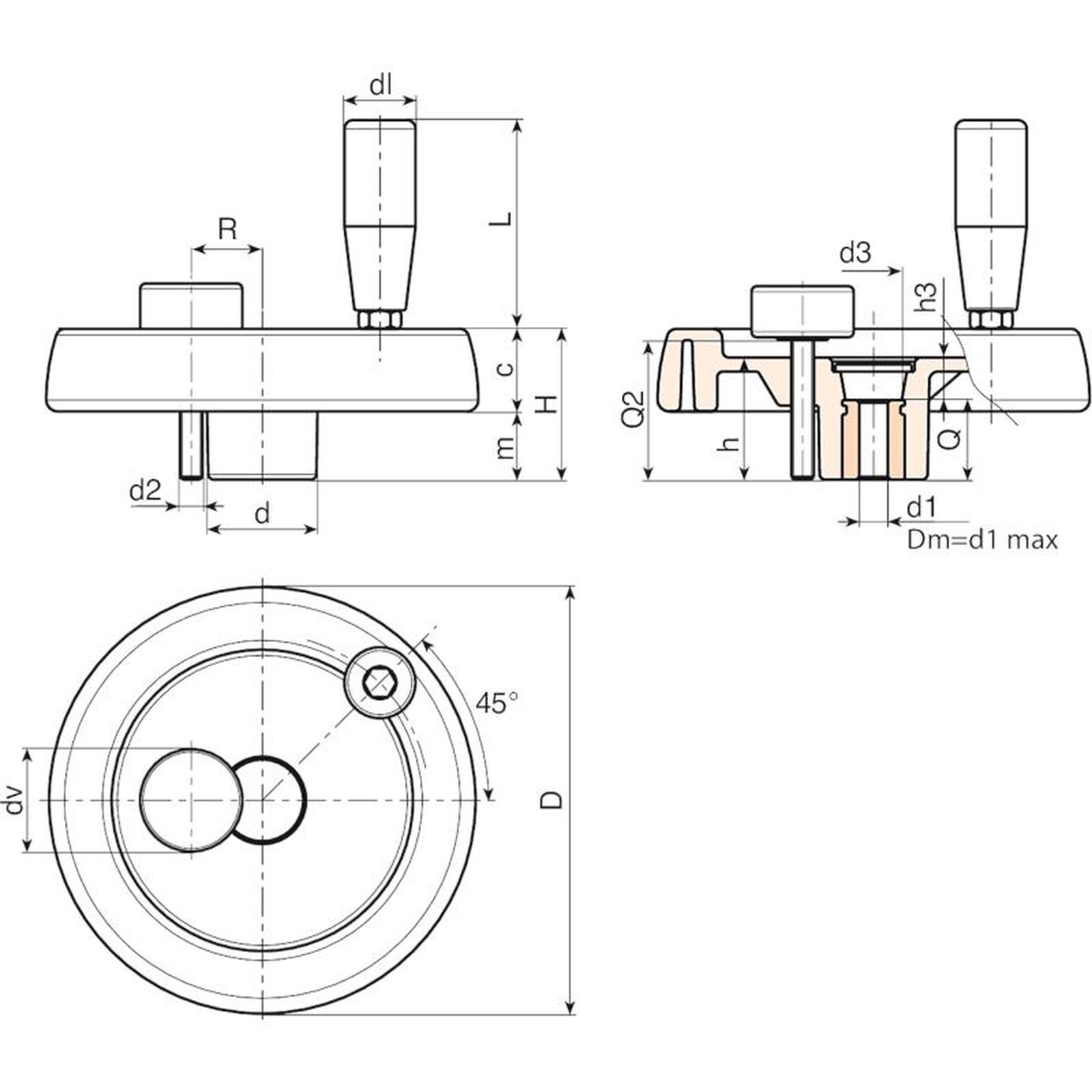

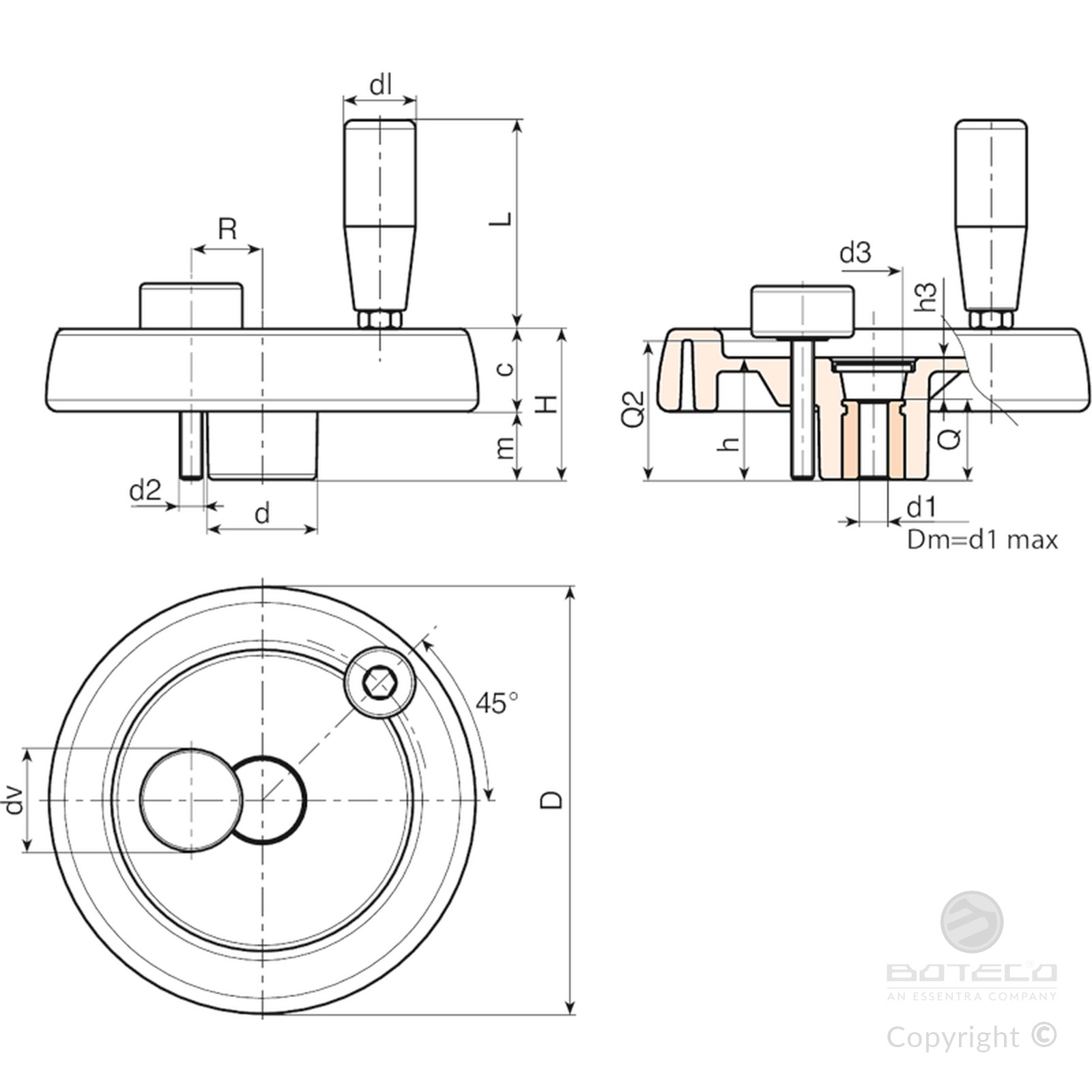

Code | Art. | D | H | h | d | m | c | d3 | h3 | R | d2 | Q2 | dl | L | Dm | d1 H10 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C970100... | C970100.TP0501P... | 100.5 | 39 | 34 | 30.5 | 18 | 21 | 16.5 | 10 | 20÷23 | M6 | A.R. | 20 | 56 | 16 | 5 | 24 | 252 |
C970125... | C970125.TP0501P... | 125 | 44 | 37 | 36 | 20 | 24 | 26 | 13 | 23÷25 | M8 | A.R. | 21 | 65 | 18 | 5 | 24 | 410 |
C970150... | C970150.TD0801P... | 150 | 54 | 44 | 38 | 25 | 29 | 26 | 12 | 25÷28 | M8 | A.R. | 21 | 65 | 22 | 8 | 32 | 636 |
C970175... | C970175.TD0801P... | 173 | 57 | 47 | 40 | 25.5 | 31.5 | 26 | 15 | 26÷36 | M8 | A.R. | 23 | 76 | 22 | 8 | 32 | 812 |
C970200... | C970200.TD0801P... | 204 | 69 | 49.5 | 45 | 24 | 35 | 26.5 | 13.5 | 28÷42 | M8 | A.R. | 25 | 86 | 28 | 8 | 36 | 1040 |
C970250... | C970250.TD0801P... | 251 | 66,5 | 56,5 | 60 | 27,5 | 39 | 36 | 20,5 | 36÷50 | M8 | A.R. | 25 | 86 | 28 | 8 | 36 | 1590 |
