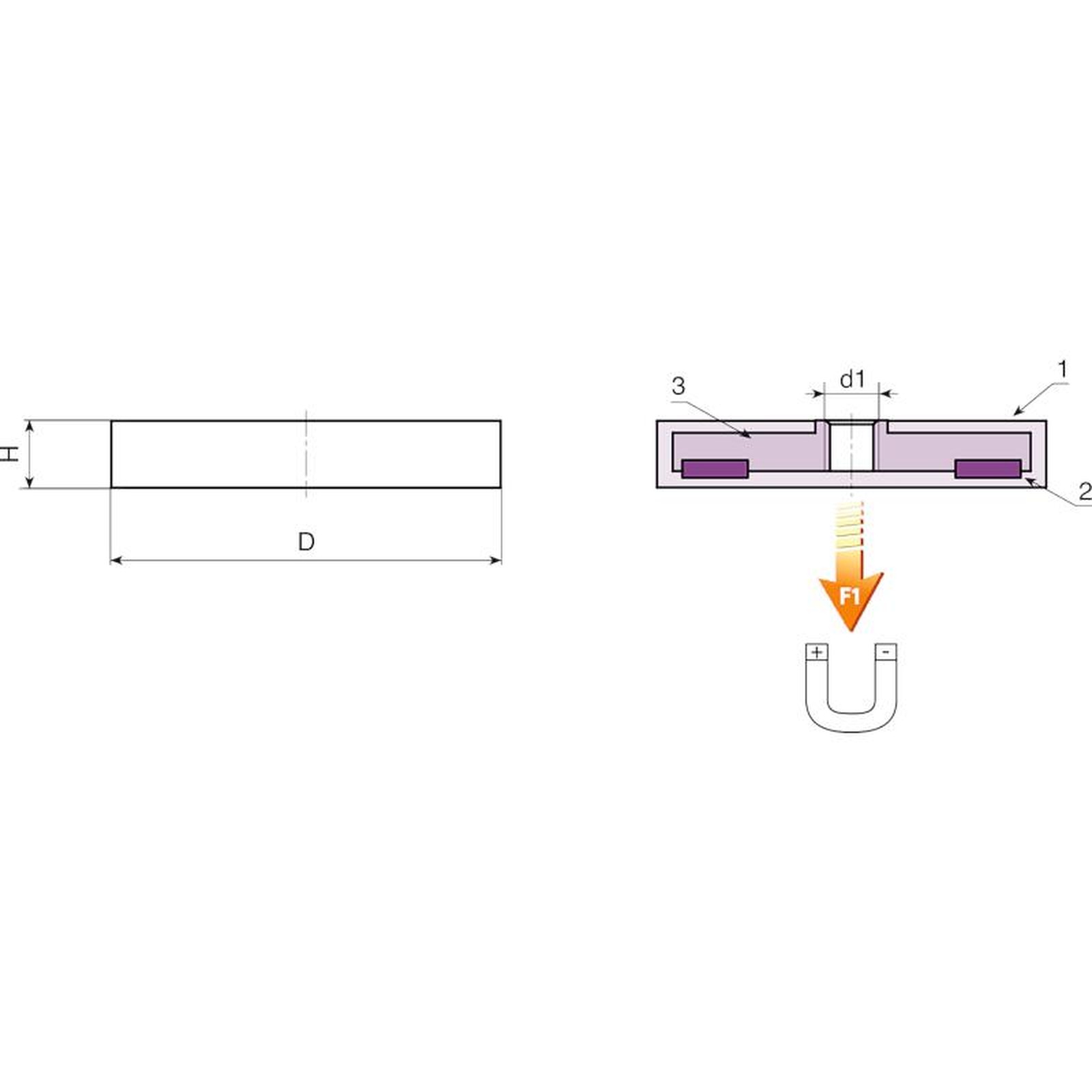

Materials:
(1) Thermoplastic rubber TPE (75 Shore).
(2) Flat neodymium magnet (NdFeB).
(3) Turned galvanised steel base, with female threaded hole (thread tolerance 6H).
Surface finish:
Smooth.
Colour:
Black(RAL 9011 code 01).
White(RAL 9004 code 04).
Special requests:
None.

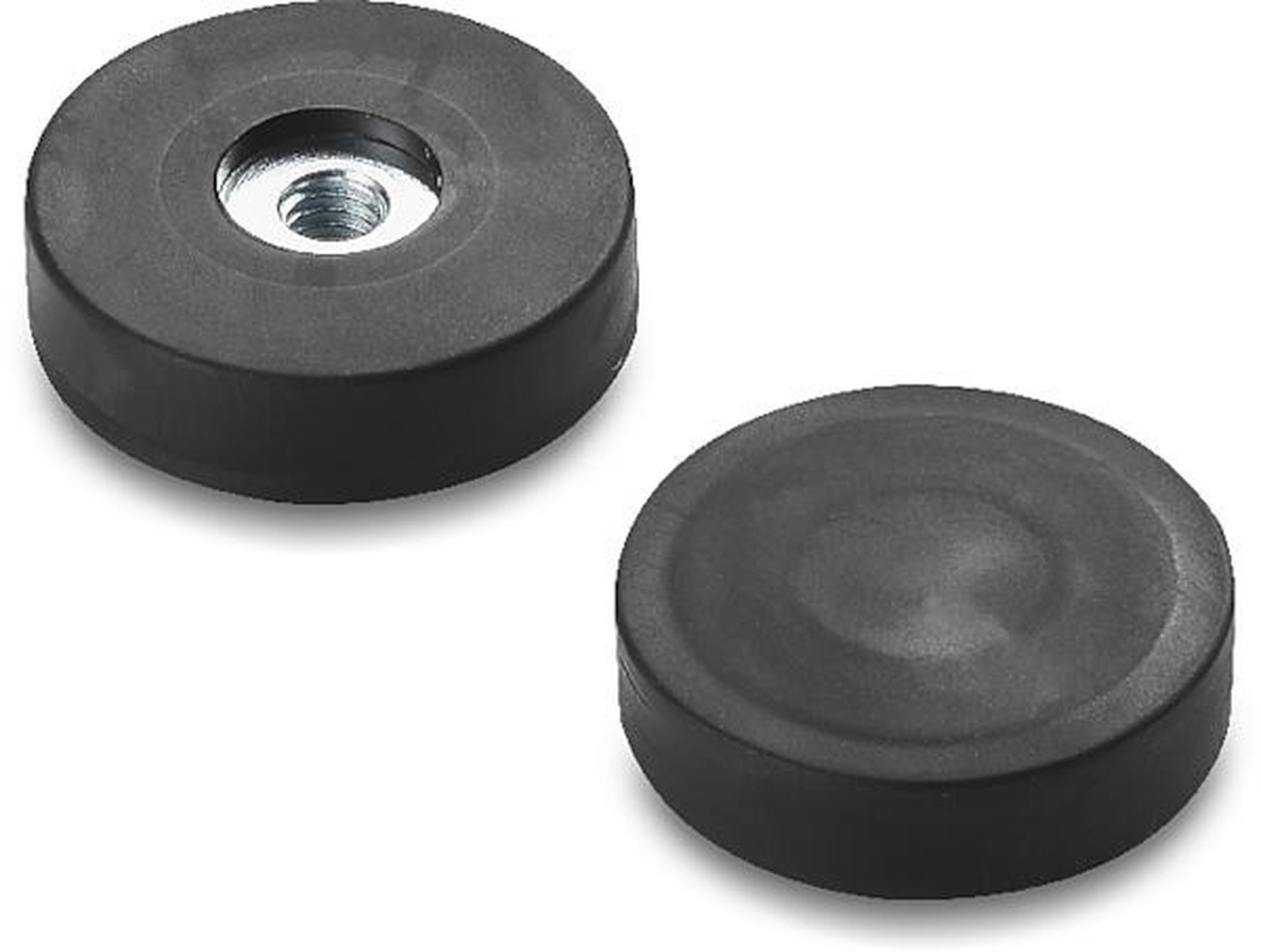

Black version (code 01)
| Code | art. | D | H | d1 6H | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|
| T404018.0001 | T404018.GM0401 | 18 | 6 | M4 | 6 | 25 |
| T404022.0001 | T404022.GM0401 | 22 | 6 | M4 | 9 | 38 |
| T404031.0001 | T404031.GM0501 | 31 | 6 | M5 | 22 | 89 |
| T404043.0001 | T404043.GM0401 | 43 | 6 | M4 | 30 | 100 |
| T404057.0001 | T404057.GM0501 | 57 | 7,5 | M5 | 80 | 200 |
| T404066.0001 | T404066.GM0601 | 66 | 8,5 | M6 | 105 | 250 |
| T404088.0001 | T404088.GM0601 | 88 | 8,5 | M6 | 190 | 550 |

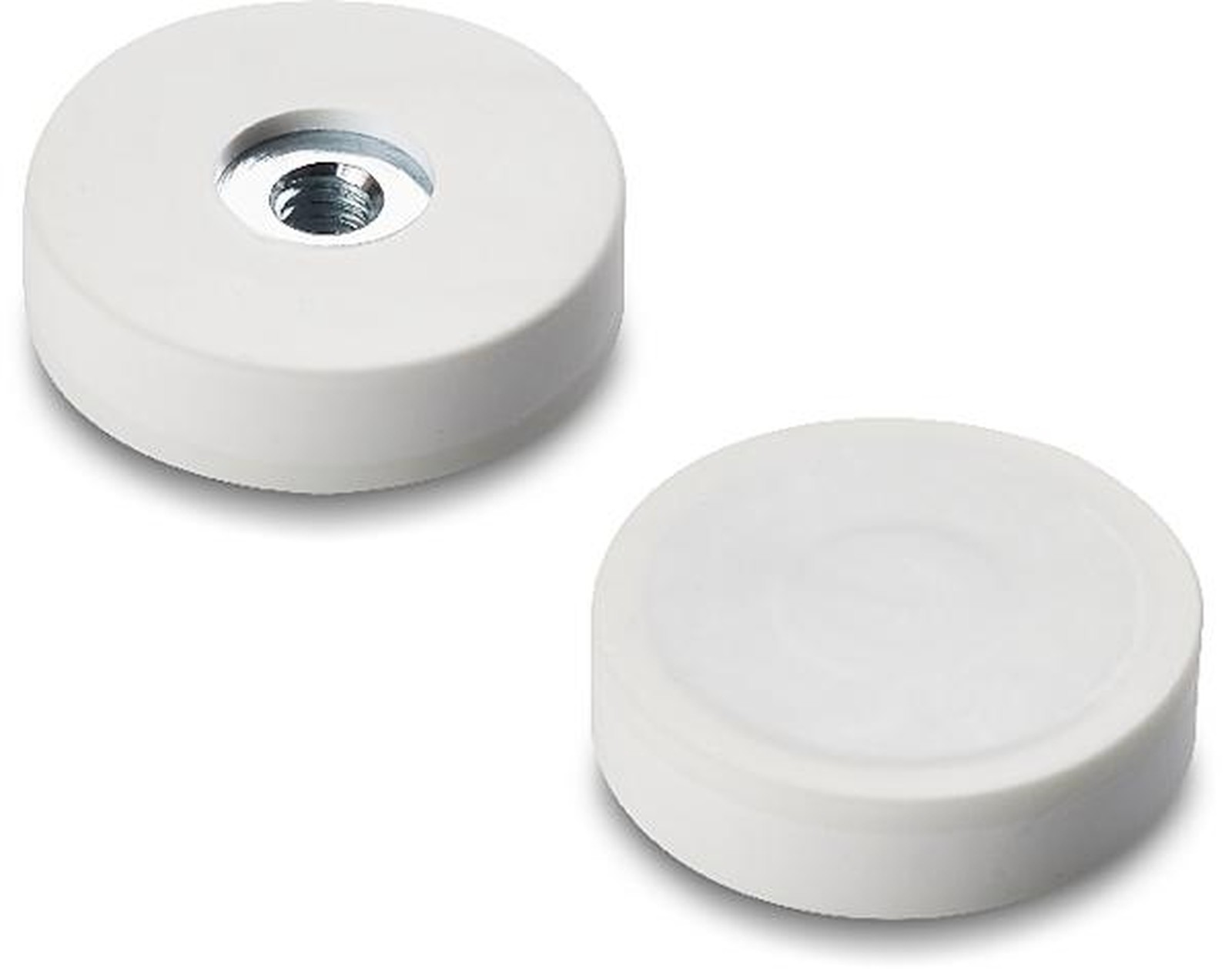

White version (code 04)
| Code | art. | D | H | d1 6H | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|
| T404018.0002 | T404018.GM0404 | 18 | 6 | M4 | 6 | 25 |
| T404022.0002 | T404022.GM0404 | 22 | 6 | M4 | 9 | 38 |
| T404031.0002 | T404031.GM0504 | 31 | 6 | M5 | 22 | 89 |
| T404043.0002 | T404043.GM0404 | 43 | 6 | M4 | 30 | 100 |
| T404057.0001 | T404057.GM0501 | 57 | 7,5 | M5 | 80 | 200 |
| T404066.0002 | T404066.GM0604 | 66 | 8,5 | M6 | 105 | 250 |
| T404088.0002 | T404088.GM0604 | 88 | 8,5 | M6 | 190 | 550 |
